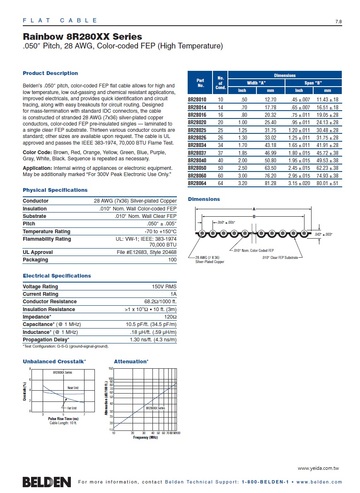

Rainbow 8R280XX Series
.050″ Pitch, 28 AWG, Color-coded FEP (High Temperature)

Belden- 8R28010  10C
Belden- 8R28014  14C
Belden- 8R28016  16C
Belden- 8R28020  20C
Belden- 8R28025  25C
Belden- 8R28026  26C
Belden- 8R28034  34C
Belden- 8R28037  37C
Belden- 8R28040  40C
Belden- 8R28050  50C
Belden- 8R28060  60C
Belden- 8R28064  64C

Product Description
Beldens .050″ pitch, color-coded FEP flat cable allows for high and
low temperature, low out-gassing and chemical resistant applications,
improved electricals, and provides quick identification and circuit
tracing, along with easy breakouts for circuit routing. Designed
for mass-termination with standard IDC connectors, the cable
is constructed of stranded 28 AWG (7x36) silver-plated copper
conductors, color-coded FEP pre-insulated singles — laminated to
a single clear FEP substrate. Thirteen various conductor counts are
standard; other sizes are available upon request. The cable is UL
approved and passes the IEEE 383-1974, 70,000 BTU Flame Test.
　

Color Code: Brown, Red, Orange, Yellow, Green, Blue, Purple,
Gray, White, Black. Sequence is repeated as necessary.
Application: Internal wiring of appliances or electronic equipment.
May be additionally marked “For 300V Peak Electronic Use Only.”
　

Physical Specifications
Conductor 28 AWG (7x36) Silver-plated Copper
Insulation .010″ Nom. Wall Color-coded FEP
Substrate .010″ Nom. Wall Clear FEP
Pitch .050″ ± .005″
Temperature Rating -70 to +150°C
Flammability Rating UL: VW-1; IEEE: 383-1974
70,000 BTU
UL Approval File #E12683, Style 20468
Packaging100
　

Electrical Specifications
Voltage Rating 150V RMS
Current Rating 1A
Conductor Resistance 68.2Ω/1000 ft.
Insulation Resistance >1 x 1011Ω • 10 ft. (3m)
Impedance* 120Ω
Capacitance* (@ 1 MHz) 10.5 pF/ft. (34.5 pF/m)
Inductance* (@ 1 MHz) .18 μH/ft. (.59 μH/m)
Propagation Delay* 1.30 ns/ft. (4.3 ns/m)
