    Belden19404 Awg16 x 2C HPN CPE Heater Cord • UL/CSA 300V, 90°C 2C平行耐熱CPE電源連接線(輕便電纜)
    看原圖
    		5666981

    商品編號: Belden-19404

    Belden-19404 Awg16 x 2C HPN CPE Heater Cord • UL/CSA 300V, 90°C  2    C平行CPE耐熱電源連接線(輕便電纜)


    SPT-1 PVC Parallel Lamp Cord • UL/CSA Listed
    300V, 60°C • One Conductor Polarity Ribbed
    Belden- 19122
    Belden- 8888*

    SPT-2 PVC Parallel Lamp Cord • UL/CSA Listed
    300V, 60°C • One Conductor Polarity Ribbed
    Belden- 19123
    Belden- 19126


    SP-1 Rubber Parallel Lamp Cord • UL Listed
    300V, 60°C • One Conductor Polarity Ribbed
    Belden- 19115*
    　

    HPN CPE Heater Cord • UL/CSA Listed
    300V, 90°C
    Belden- 19405
    Belden- 19404

    19404

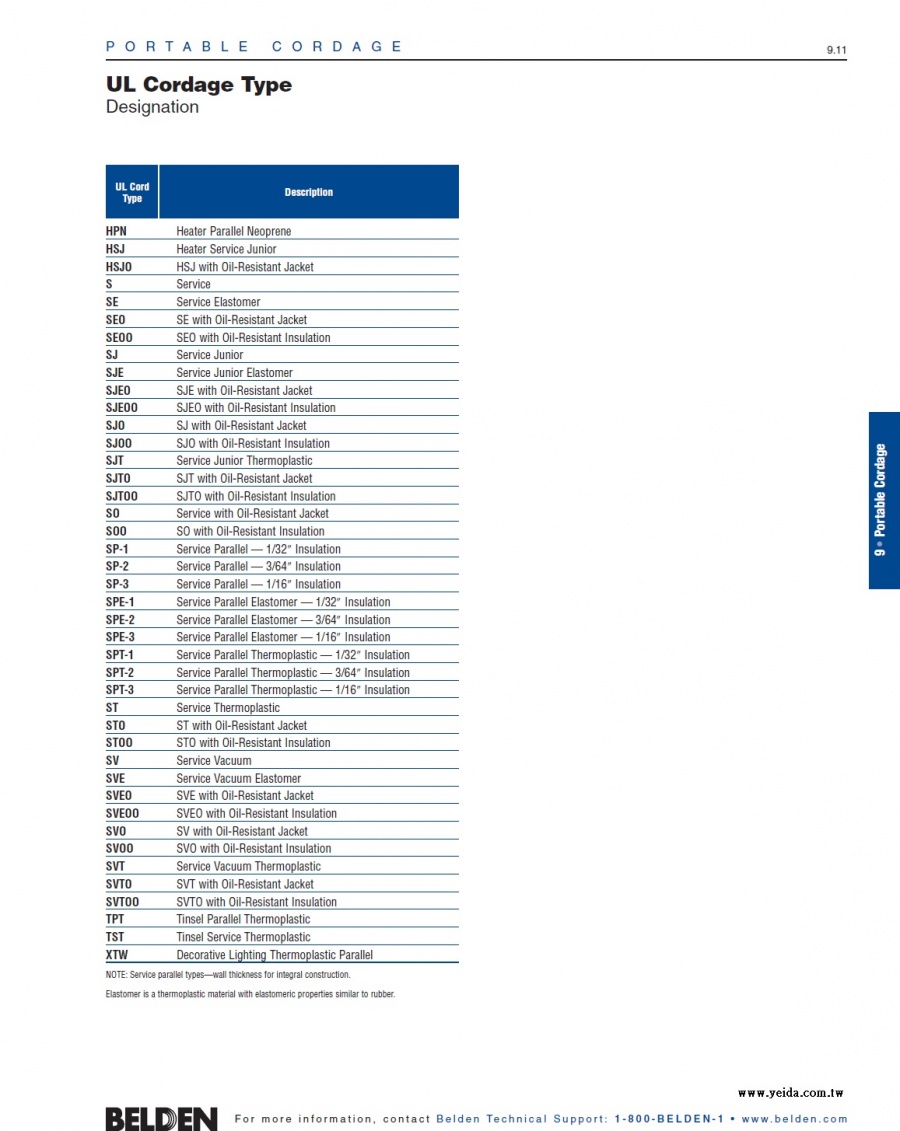

    		    Portable Cordage - UL/CSA Types: SPT-1, SPT-2, SP-1 and HPN
    HPN CPE heater cord, UL/CSA listed, 300V, 90ºC.    		 For more Information
    please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    19404 0101000 1,000 FT 39.000 LB BLACK C F 2 #16 CPE TYPE HPN 90C
    19404 010250 250 FT 9.750 LB BLACK F 2 #16 CPE TYPE HPN 90C
    Notes: 　
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    2 16 105x36 BC - Bare Copper
    Total Number of Conductors: 2
    Type of Cordage: HPN
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    CPE - Chlorinated Polyethylene 0.043
    Outer Shield
    Outer Shield Material:
    Outer Shield Material
    Unshielded
    Overall Cable
    Overall Nominal Diameter: 0.152 x 0.300 in.
    Mechanical Characteristics (Overall)
    Bulk Cable Weight: 36 lbs/1000 ft.
    Min. Bend Radius/Minor Axis: 1.750 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: HPN
    CSA Specification: HPN
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: VW-1
    CSA Flame Test: FT2
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Surface Printing (Overall)
    Electrical Characteristics (Overall)
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    12 Amps per conductor @ 25°C over 50 ft.
    15 Amps per conductor @ 25°C
    Dielectric Withstand Voltage: 1500 V AC Applied For 1 Min.
