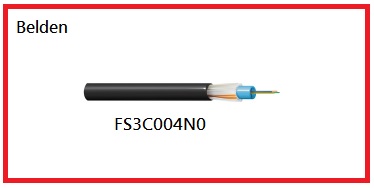

    BELDEN-FS3C004N0 Outdoor Central Loose Tube OM3 4 Fiber
    播放音樂 看原圖
    		BELDENFS3C004N0

    BELDENFS3C004N0 Outdoor Central Loose Tube OM3 4 Fiber 戶外型單束管多模OM3 4C光纖纜線
    Product Description
    FX Outdoor Central Loose Tube OM3 4 Fibers OSP Non-Unitized Black
    Technical Specifications

    Product Overview
    Part Number: FS3C004N0
    Construction Type: Central Loose Tube
    Environmental Space: Outdoor
    Suitable Applications: Outdoor

    Construction
    Fiber Cable Construction
    Fiber Type: OM3
    Fiber Count: 4
    Fiber Color Coding: Blue, Orange, Green, Brown
    Buffer Specification
    Buffer Diameter: 0.150
    Cable Core Water Blocking: Gel-Filled

    SubUnit Specifications
    Number of Active Subunits: Non-Unitized
    SubUnit Diameter. 0.150 in (3.8mm)

    Physical Specifications
    Buffer Tube Waterblocking Gel Filled

    Jacket Specifications
    Number of Jackets: Single Jacket
    Outer Jacket Material
    Material PE-Polyethylene
    Nominal Diameter 0.315 in (8.0mm)
    Outer Jacket Color: Black
    Number of Outer Jacket Ripcords: 1

    Optical Characteristics
    Effective Modal Bandwidth (EMB): 2000MHz-km/500MHz-km
    Fiber Core Diameter: 50/125um
    Max. Attenuation at 1300nm: 1.0 dB/km
    Max. Attenuation at 850nm: 3.0 dB/km
    Wavelength: 850nm / 1300nm
    10 Gigabit Ethernet Performance: 300m / 300m
    1 Gigabit Ethernet Performance: - / 550m
    Min Overfilled Launch (OFL) Bandwidth: 1500MHz-km/500MHz-km

    Mechanical Characteristics
    Min Bend Radius During Installation: 20x Cable OD
    Min Bend Radius During Operation: 10x Cable OD
    Max Tensile Strength During Installation: 135 N (600 lbf)
    Max Tensile Strength During Operaiton: 45 N (200 lbf)

    Temperature Range
    Operating Temp Range: -40C to +70C
    Installation Temp Range: -20C to +70C
    Storage Temp Range: -40C to +70C

    Standards
    UL Rating/Flame Test: OSP
    NEC/(UL) Specification: N/A
    Telecommunications Standards: ANSI/ICEA S-87-640
    ROHS: YES
    UV/ Sunlight Protection: YES

    History
    Variants
    Item# FS3C004N0
    Color Black
    UPC 612825371212
