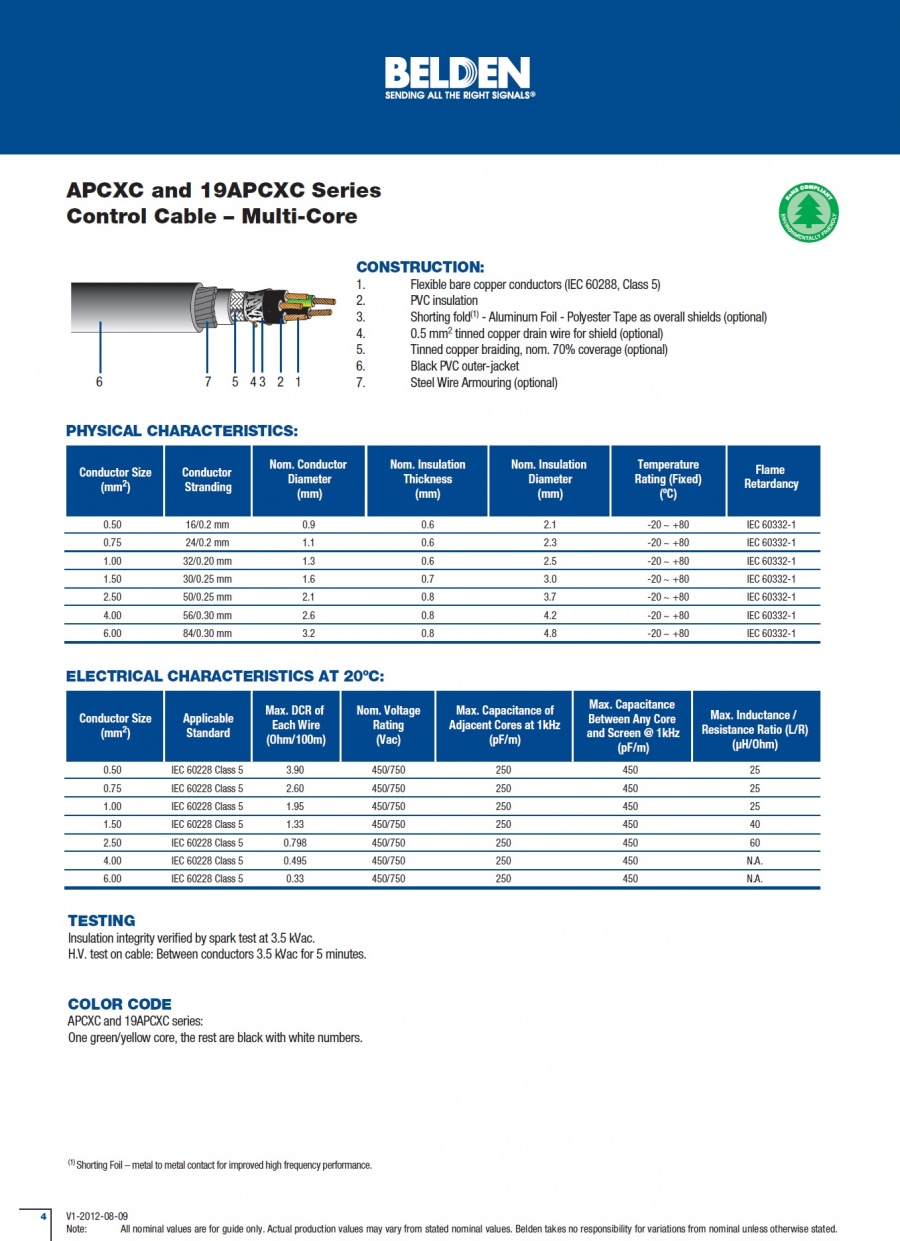

APCFC Series - Overall Shielded Multi-Core Control Cable
CONSTRUCTION:
Flexible bare copper conductors, PVC insulation, cabled, overall Shorting
fold with tinned copper drain wire of 0.5 mm2, overall PVC jacket.
19APCFC Series - Overall Shielded Multi-Core Control Cable with SWA
CONSTRUCTION:
Flexible bare copper conductors, PVC insulation, cabled, overall Shorting fold with tinned
copper drain wire of 0.5 mm2, PVC inner jacket, steel wire armouring, PVC outer jacket.
GENERAL APPLICATION
• Control Cables: low voltage AC and DC power supply and control.
FEATURES
• Based on relevant international IEC and broadly respected standards.
• Overall shield configurations are with shorting folded foils in order to maintain metal-to-metal contact for improved high frequency shielding performance.
• For occasional flexing (free movement without load) and fixed installation.
• Small cable diameters.
• Optional: Armouring for extra cable protection.
INSTALLATION GUIDELINES AND RECOMMENDATIONS
• On racks, trays and/or conduits.
• In dry, damp and/or wet locations.
Note 1: This series of cables are not longitudinally watertight.
Note 2: In case of continued presence of water, cables with a polyethylene (PE) jacket are recommended.
• Without armouring not recommended for direct burial.
• Minimum bending radius fixed cables: 6 x Overall Diameter.
• Minimum bending radius occasional flexing cables: 15 x Overall Diameter.
• Maximum pulling force: 70 N per square millimeter copper conductor.
STANDARD REFERENCE
• BS 5308 and PAS 5308
• IEC 60227, GB 5023
• IEC 60228 - class 1, 2 and 5, GB/T 3956, IS 8130
• VDE 0250-204
• IS 694
• IEC 60332-1, GB/T 18380.1
• RoHS directives

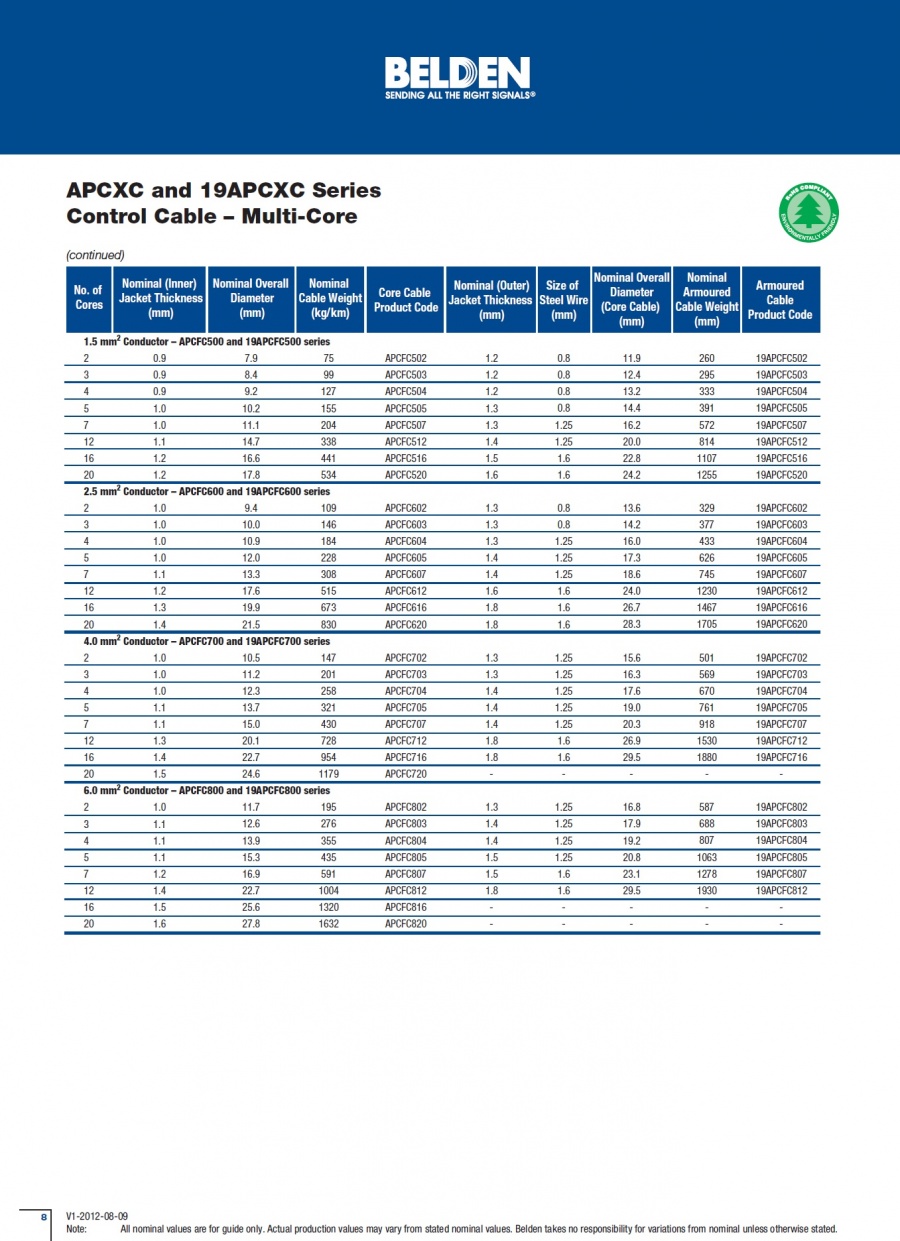

Part Number |
Description |
Datasheet |
Application |
APCFC205 |
PVC Control Cable (Shielded)5Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC207 |
PVC Control Cable (Shielded)7Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC212 |
PVC Control Cable (Shielded)12Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC216 |
PVC Control Cable (Shielded)16Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC220 |
PVC Control Cable (Shielded)20Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC302 |
PVC Control Cable (Shielded)2Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC303 |
PVC Control Cable (Shielded)3Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC304 |
PVC Control Cable (Shielded)4Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC305 |
PVC Control Cable (Shielded)5Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC307 |
PVC Control Cable (Shielded)7Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC312 |
PVC Control Cable (Shielded)12Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC316 |
PVC Control Cable (Shielded)16Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC320 |
PVC Control Cable (Shielded)20Core 0.75mm2 |
In Package |
450V/750V Control |
APCFC402 |
PVC Control Cable (Shielded)2Core 1mm2 |
In Package |
450V/750V Control |
APCFC403 |
PVC Control Cable (Shielded)3Core 1mm2 |
In Package |
450V/750V Control |
APCFC404 |
PVC Control Cable (Shielded)4Core 1mm2 |
In Package |
450V/750V Control |
APCFC405 |
PVC Control Cable (Shielded)5Core 1mm2 |
In Package |
450V/750V Control |
APCFC407 |
PVC Control Cable (Shielded)7Core 1mm2 |
In Package |
450V/750V Control |
APCFC412 |
PVC Control Cable (Shielded)12Core 1mm2 |
In Package |
450V/750V Control |
APCFC416 |
PVC Control Cable (Shielded)16Core 1mm2 |
In Package |
450V/750V Control |
APCFC420 |
PVC Control Cable (Shielded)20Core 1mm2 |
In Package |
450V/750V Control |
APCFC502 |
PVC Control Cable (Shielded)2Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC503 |
PVC Control Cable (Shielded)3Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC504 |
PVC Control Cable (Shielded)4Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC505 |
PVC Control Cable (Shielded)5Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC507 |
PVC Control Cable (Shielded)7Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC512 |
PVC Control Cable (Shielded)12Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC516 |
PVC Control Cable (Shielded)16Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC520 |
PVC Control Cable (Shielded)20Core 1.5mm2 |
In Package |
450V/750V Control |
APCFC602 |
PVC Control Cable (Shielded)2Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC202 |
PVC Control Cable (Shielded)2Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC203 |
PVC Control Cable (Shielded)3Core 0.5mm2 |
In Package |
450V/750V Control |
APCFC204 |
PVC Control Cable (Shielded)4Core 0.5mm2 |
In Package |
450V/750V Control |
Control
Part Number |
Description |
Datasheet |
Application |
APCFC603 |
PVC Control Cable (Shielded)3Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC604 |
PVC Control Cable (Shielded)4Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC605 |
PVC Control Cable (Shielded)5Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC607 |
PVC Control Cable (Shielded)7Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC612 |
PVC Control Cable (Shielded)12Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC616 |
PVC Control Cable (Shielded)16Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC620 |
PVC Control Cable (Shielded)20Core 2.5mm2 |
In Package |
450V/750V Control |
APCFC702 |
PVC Control Cable (Shielded)2Core 4mm2 |
In Package |
450V/750V Control |
APCFC703 |
PVC Control Cable (Shielded)3Core 4mm2 |
In Package |
450V/750V Control |
APCFC704 |
PVC Control Cable (Shielded)4Core 4mm2 |
In Package |
450V/750V Control |
APCFC705 |
PVC Control Cable (Shielded)5Core 4mm2 |
In Package |
450V/750V Control |
APCFC707 |
PVC Control Cable (Shielded)7Core 4mm2 |
In Package |
450V/750V Control |
APCFC712 |
PVC Control Cable (Shielded)12Core 4mm2 |
In Package |
450V/750V Control |
APCFC716 |
PVC Control Cable (Shielded)16Core 4mm2 |
In Package |
450V/750V Control |
APCFC720 |
PVC Control Cable (Shielded)20Core 4mm2 |
In Package |
450V/750V Control |
APCFC802 |
PVC Control Cable (Shielded)2Core 6mm2 |
In Package |
450V/750V Control |
APCFC803 |
PVC Control Cable (Shielded)3Core 6mm2 |
In Package |
450V/750V Control |
APCFC804 |
PVC Control Cable (Shielded)4Core 6mm2 |
In Package |
450V/750V Control |
APCFC805 |
PVC Control Cable (Shielded)5Core 6mm2 |
In Package |
450V/750V Control |
APCFC807 |
PVC Control Cable (Shielded)7Core 6mm2 |
In Package |
450V/750V Control |
APCFC812 |
PVC Control Cable (Shielded)12Core 6mm2 |
In Package |
450V/750V Control |
APCFC816 |
PVC Control Cable (Shielded)16Core 6mm2 |
In Package |
450V/750V Control |
APCFC820 |
PVC Control Cable (Shielded)20Core 6mm2 |
In Package |
450V/750V Control |
|
