Belden-E500001 1M UTP- DataTuff® Cat 5e IP67 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

5073298

商品編號: Belden-E500001

Belden-E500001 1M UTP- DataTuff® Cat 5e IP67 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

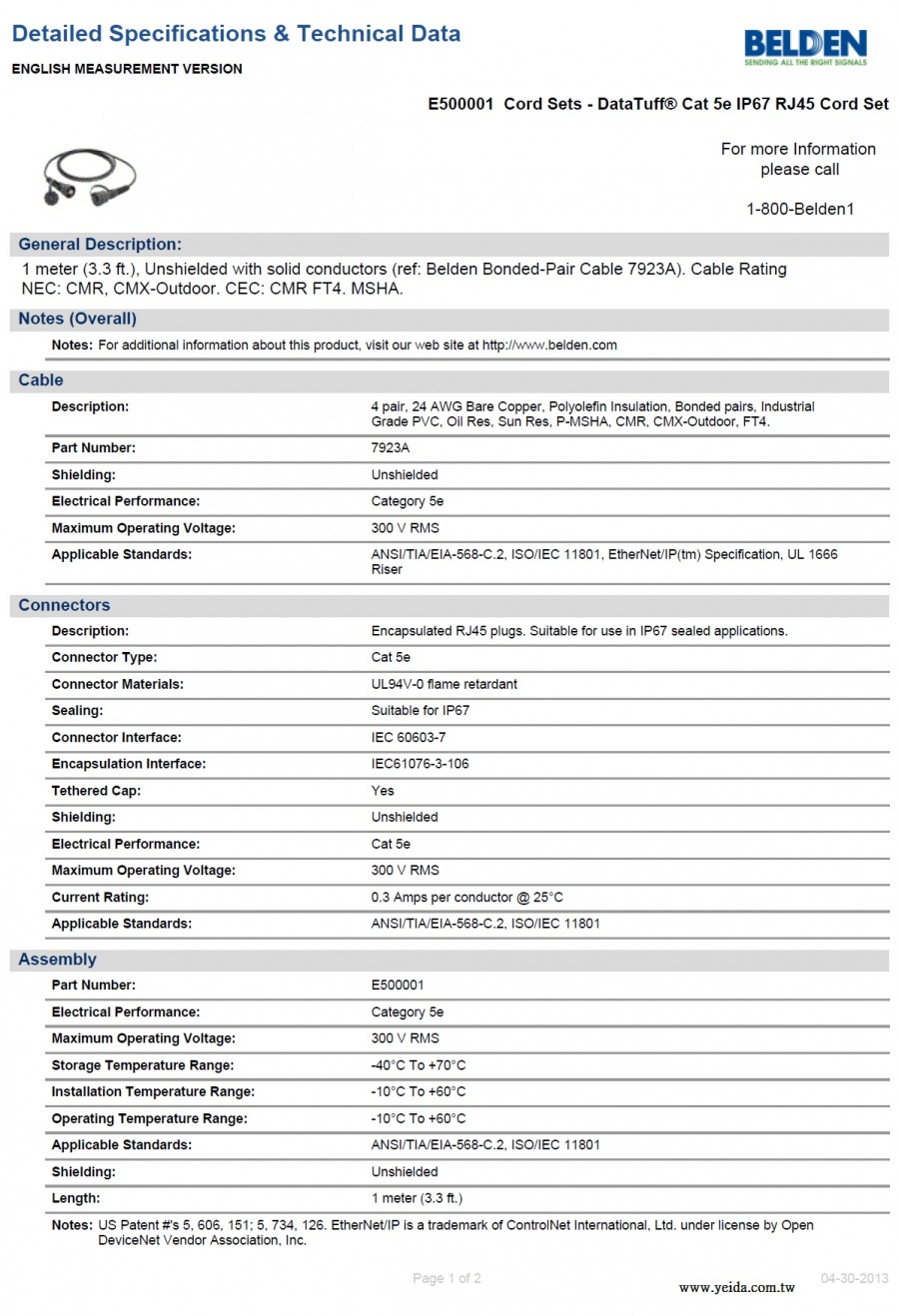

General Description:
1 meter (3.3 ft.), Unshielded with solid conductors (ref: Belden Bonded-Pair Cable 7923A). Cable Rating
NEC: CMR, CMX-Outdoor. CEC: CMR FT4. MSHA.
Notes (Overall)
Notes: For additional information about this product, visit our web site athttp://www.belden.com
　

Cable
Description: 4 pair, 24 AWG Bare Copper, Polyolefin Insulation, Bonded pairs, Industrial
Grade PVC, Oil Res, Sun Res, P-MSHA, CMR, CMX-Outdoor, FT4.
Part Number: 7923A
Shielding: Unshielded
Electrical Performance: Category 5e
Maximum Operating Voltage:300 V RMS
Applicable Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, EtherNet/IP(tm) Specification, UL 1666
Riser
　

Connectors
Description: Encapsulated RJ45 plugs. Suitable for use in IP67 sealed applications.
Connector Type: Cat 5e
Connector Materials:UL94V-0 flame retardant
Sealing: Suitable for IP67
Connector Interface: IEC 60603-7
Encapsulation Interface: IEC61076-3-106
Tethered Cap: Yes
Shielding:Unshielded
Electrical Performance: Cat 5e
Maximum Operating Voltage: 300 V RMS
Current Rating: 0.3 Amps per conductor @ 25°C
Applicable Standards:ANSI/TIA/EIA-568-C.2, ISO/IEC 11801
　

Assembly
Part Number: E500001
Electrical Performance:Category 5e
Maximum Operating Voltage: 300 V RMS
Storage Temperature Range: -40°C To +70°C
Installation Temperature Range: -10°C To +60°C
Operating Temperature Range: -10°C To +60°C
Applicable Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801
Shielding: Unshielded
Length: 1 meter (3.3 ft.)

Notes:US Patent #s 5, 606, 151; 5, 734, 126. EtherNet/IP is a trademark of ControlNet International, Ltd. under license by Open
DeviceNet Vendor Association, Inc.

★★★★商品規格描述★★★★

Belden DataTuff Industrial Ethernet Connectivity
　

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 6 4 Pair,
23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E600001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E600002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E600003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E600005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E600025 010S1	IP67	25 m (82 ft.)	Yes	1
E601001 010S1	IP20	1 m (3.3 ft.)	–	1
E601002 010S1	IP20	2 m (6.6 ft.)	–	1
E601003 010S1	IP20	3 m (9.8 ft.)	–	1
E601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E604001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E604002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E604003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E604005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E604025 010S1	IP67	25 m (82 ft.)	Yes	1
E605001 010S1	IP20	1 m (3.3 ft.)	–	1
E605002 010S1	IP20	2 m (6.6 ft.)	–	1
E605003 010S1	IP20	3 m (9.8 ft.)	–	1
E605005 010S1	IP20	5 m (16.4 ft.)	–	1

DataTuff Industrial Ethernet Ruggedized Cord Sets with Metal Body (RJ45).
Cat 6 4-Pair, 23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R601001 010S1	IP20	1 m (3.3 ft.)	–	1
R601002 010S1	IP20	2 m (6.6 ft.)	–	1
R601003 010S1	IP20	3 m (9.8 ft.)	–	1
R601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R605001 010S1	IP20	1 m (3.3 ft.)	–	1
R605002 010S1	IP20	2 m (6.6 ft.)	–	1
R605003 010S1	IP20	3 m (9.8 ft.)	–	1
R605005 010S1	IP20	5 m (16.4 ft.)	–	1

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 5e 4 Pair,
24 AWG - Heavy Duty Oil - Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7923A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E500001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E500002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E500003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E500005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E500025 010S1	IP67	25 m (82 ft.)	Yes	1
E501001 010S1	IP20	1 m (3.3 ft.)	–	1
E501002 010S1	IP20	2 m (6.6 ft.)	–	1
E501003 010S1	IP20	3 m (9.8 ft.)	–	1
E501005 010S1	IP20	5 m (16.4 ft.)	–	1

Unshielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7924A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E502001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E502002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E502003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E502005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E502025 010S1	IP67	25 m (82 ft.)	Yes	1
E503001 010S1	IP20	1 m (3.3 ft.)	–	1
E503002 010S1	IP20	2 m (6.6 ft.)	–	1
E503003 010S1	IP20	3 m (9.8 ft.)	–	1
E503005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7929A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E504001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E504002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E504003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E504005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E504025 010S1	IP67	25 m (82 ft.)	Yes	1
E505001 010S1	IP20	1 m (3.3 ft.)	–	1
E505002 010S1	IP20	2 m (6.6 ft.)	–	1
E505003 010S1	IP20	3 m (9.8 ft.)	–	1
E505005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7939A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E506001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E506002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E506003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E506005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E506025 010S1	IP67	25 m (82 ft.)	Yes	1
E507001 010S1	IP20	1 m (3.3 ft.)	–	1
E507002 010S1	IP20	2 m (6.6 ft.)	–	1
E507003 010S1	IP20	3 m (9.8 ft.)	–	1
E507005 010S1	IP20	5 m (16.4 ft.)	–	1
