Belden E506002 2M FTP- DataTuff® Cat 5e IP67 RJ45 Cord Set 工業級(防油抗陽光)鋁箔隔離乙太網路連接跳線 BC（7X32）

5653433

商品編號: Belden-E506002

BeldenE506002 2M FTP- DataTuff® Cat 5e IP67 RJ45 Cord Set 工業級(防油抗陽光)鋁箔隔離乙太網路連接跳線 BC（7X32）

屏蔽絞合導體（參考：百通粘連線對電纜7939A）
：CMR電纜等級NEC，CMX戶外CEC：CMR FT4

零件編號	IP防護等級	長度米（英尺）	栓帽	標準包裝數量（件）
E506001 010S1	IP67	1米（3.3呎）	是	1
E506002 010S1	IP67	2米（6.6英尺）	是	1
E506003 010S1	IP67	3米（9.8英尺）	是	1
E506005 010S1	IP67	5米（16.4英尺）	是	1
E506025 010S1	IP67	25米（82英尺）	是	1
E507001 010S1	IP20	1米（3.3呎）	-	1
E507002 010S1	IP20	2米（6.6英尺）	-	1
E507003 010S1	IP20	3米（9.8英尺）	-	1
E507005 010S1	IP20	5米（16.4英尺）	-	1

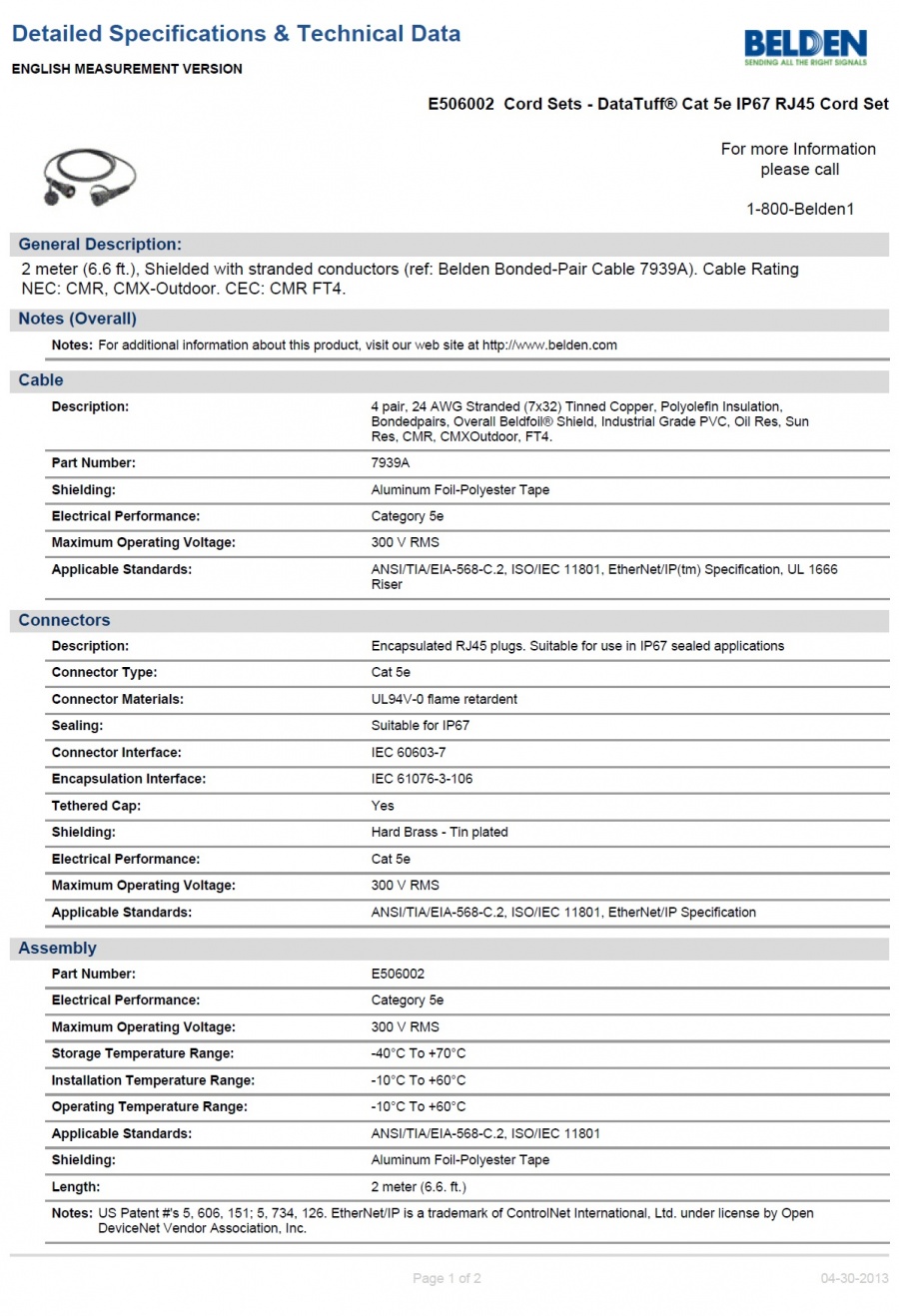

E506002

Cord Sets - DataTuff® Cat 5e IP67 RJ45 Cord Set
2 meter (6.6 ft.), Shielded with stranded conductors (ref: Belden Bonded-Pair Cable 7939A). Cable Rating NEC: CMR, CMX-Outdoor. CEC: CMR FT4.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #

Putup

Ship Weight

Color

Notes

Item Desc

Notes (Overall)

Notes:

For additional information about this product, visit our web site at http://www.belden.com

Cable

Description:

4 pair, 24 AWG Stranded (7x32) Tinned Copper, Polyolefin Insulation, Bondedpairs, Overall Beldfoil® Shield, Industrial Grade PVC, Oil Res, Sun Res, CMR, CMXOutdoor, FT4.

Part Number:

7939A

Shielding:

Aluminum Foil-Polyester Tape

Electrical Performance:

Category 5e

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, EtherNet/IP(tm) Specification, UL 1666 Riser

Connectors

Description:

Encapsulated RJ45 plugs. Suitable for use in IP67 sealed applications

Connector Type:

Cat 5e

Connector Materials:

UL94V-0 flame retardent

Sealing:

Suitable for IP67

Connector Interface:

IEC 60603-7

Encapsulation Interface:

IEC 61076-3-106

Tethered Cap:

Yes

Shielding:

Hard Brass - Tin plated

Electrical Performance:

Cat 5e

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, EtherNet/IP Specification

Assembly

Part Number:

E506002

Electrical Performance:

Category 5e

Maximum Operating Voltage:

300 V RMS

Storage Temperature Range:

-40°C To +70°C

Installation Temperature Range:

-10°C To +60°C

Operating Temperature Range:

-10°C To +60°C

Applicable Standards:

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801

Shielding:

Aluminum Foil-Polyester Tape

Length:

2 meter (6.6. ft.)

Notes:

US Patent #s 5, 606, 151; 5, 734, 126. EtherNet/IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc.

★★★★商品規格描述★★★★

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 5e 4 Pair,
24 AWG - Heavy Duty Oil - Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7923A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E500001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E500002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E500003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E500005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E500025 010S1	IP67	25 m (82 ft.)	Yes	1
E501001 010S1	IP20	1 m (3.3 ft.)	–	1
E501002 010S1	IP20	2 m (6.6 ft.)	–	1
E501003 010S1	IP20	3 m (9.8 ft.)	–	1
E501005 010S1	IP20	5 m (16.4 ft.)	–	1

Unshielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7924A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E502001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E502002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E502003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E502005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E502025 010S1	IP67	25 m (82 ft.)	Yes	1
E503001 010S1	IP20	1 m (3.3 ft.)	–	1
E503002 010S1	IP20	2 m (6.6 ft.)	–	1
E503003 010S1	IP20	3 m (9.8 ft.)	–	1
E503005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7929A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E504001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E504002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E504003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E504005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E504025 010S1	IP67	25 m (82 ft.)	Yes	1
E505001 010S1	IP20	1 m (3.3 ft.)	–	1
E505002 010S1	IP20	2 m (6.6 ft.)	–	1
E505003 010S1	IP20	3 m (9.8 ft.)	–	1
E505005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7939A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E506001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E506002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E506003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E506005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E506025 010S1	IP67	25 m (82 ft.)	Yes	1
E507001 010S1	IP20	1 m (3.3 ft.)	–	1
E507002 010S1	IP20	2 m (6.6 ft.)	–	1
E507003 010S1	IP20	3 m (9.8 ft.)	–	1
E507005 010S1	IP20	5 m (16.4 ft.)	–	1
