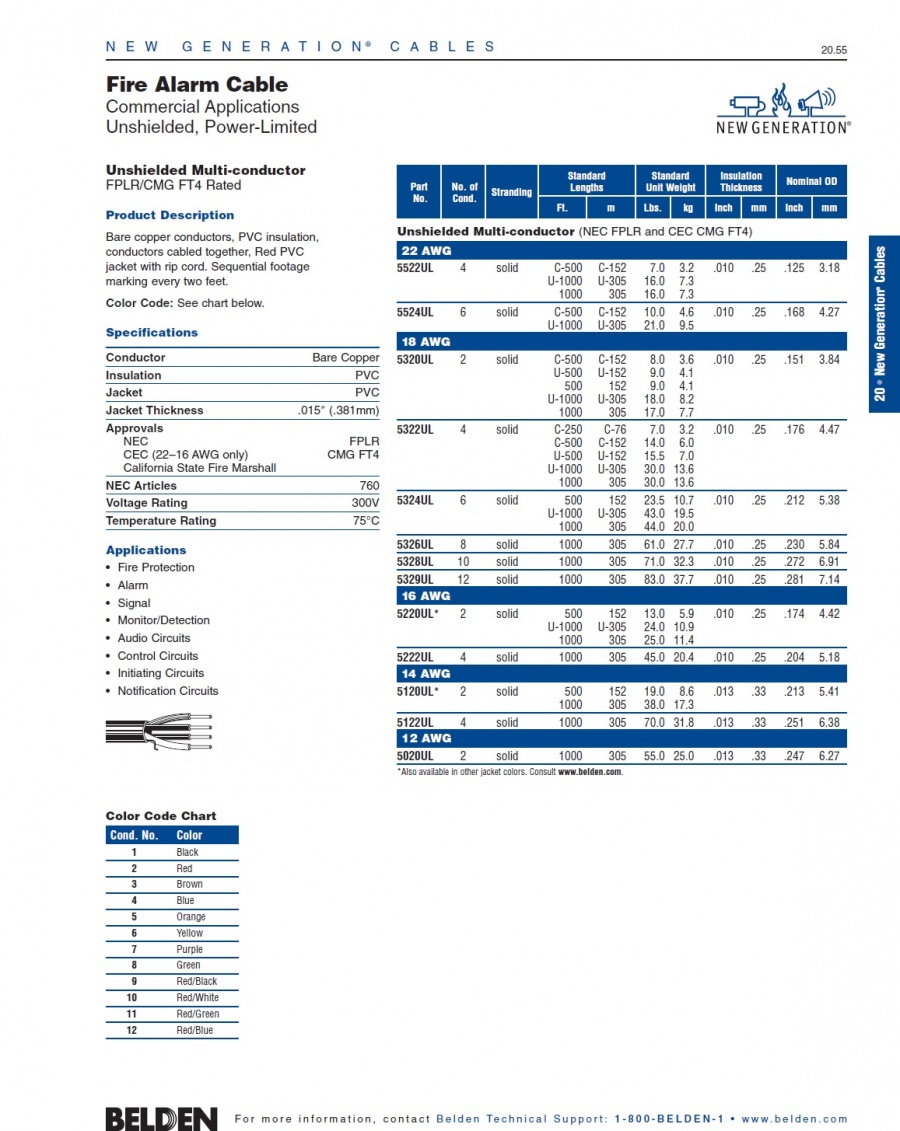

Fire Alarm Cable
Commercial Applications
Unshielded, Power-Limited

Unshielded Multi-conductor
FPLR/CMG FT4 Rated
　

Product Description
Bare copper conductors, PVC insulation,
conductors cabled together, Red PVC
jacket with rip cord. Sequential footage
marking every two feet.
Color Code: See chart below.
　

Specifications
Conductor Bare Copper
Insulation PVC
Jacket PVC
Jacket Thickness .015″ (.381mm)
Approvals
NEC FPLR
CEC (22–16 AWG only) CMG FT4
California State Fire Marshall
NEC Articles 760
Voltage Rating 300V
Temperature Rating 75°C
　

Applications
• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits

5522UL

Multi-Conductor - Commercial Applications 22 AWG bare copper conductors, PVC insulation, conductors cabled together, PVC jacket with ripcord, sequential footage marking every two feet.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 5522UL 002U1000 1,000 FT 14.000 LB RED 　 4 #22 PP FRPVC

Usage (Overall)

Suitable Applications:

Fire Protections, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors AWG Stranding Conductor Material 4 22 Solid BC - Bare Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PVC - Polyvinyl Chloride .010

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .015

Outer Jacket Ripcord:

Yes

Overall Cable

Overall Cabling Lay Length & Direction:

Length (in.) Twists (twist/ft) 2.75 4.4

Overall Cabling Color Code Chart:

Number Color 1 Black 2 Red 3 Brown 4 Blue

Overall Nominal Diameter:

0.125 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

UL Temperature Rating:

75°C

Bulk Cable Weight:

14.300 lbs/1000 ft.

Max. Recommended Pulling Tension:

31.200 lbs.

Min. Bend Radius (Install)/Minor Axis:

1.400 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

FPLR

NEC Articles:

760

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

California State Fire Marshall

Flame Test

UL Flame Test:

UL1666 Vertical Shaft

CSA Flame Test:

FT4

Plenum/Non-Plenum

Plenum (Y/N):

No

Plenum Number:

6522UL

Electrical Characteristics (Overall)

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 24

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 15.7

Max. Operating Voltage - UL:

Voltage 300 V RMS

Max. Recommended Current:

Current 2.2 Amps per conductor @ 25°C
