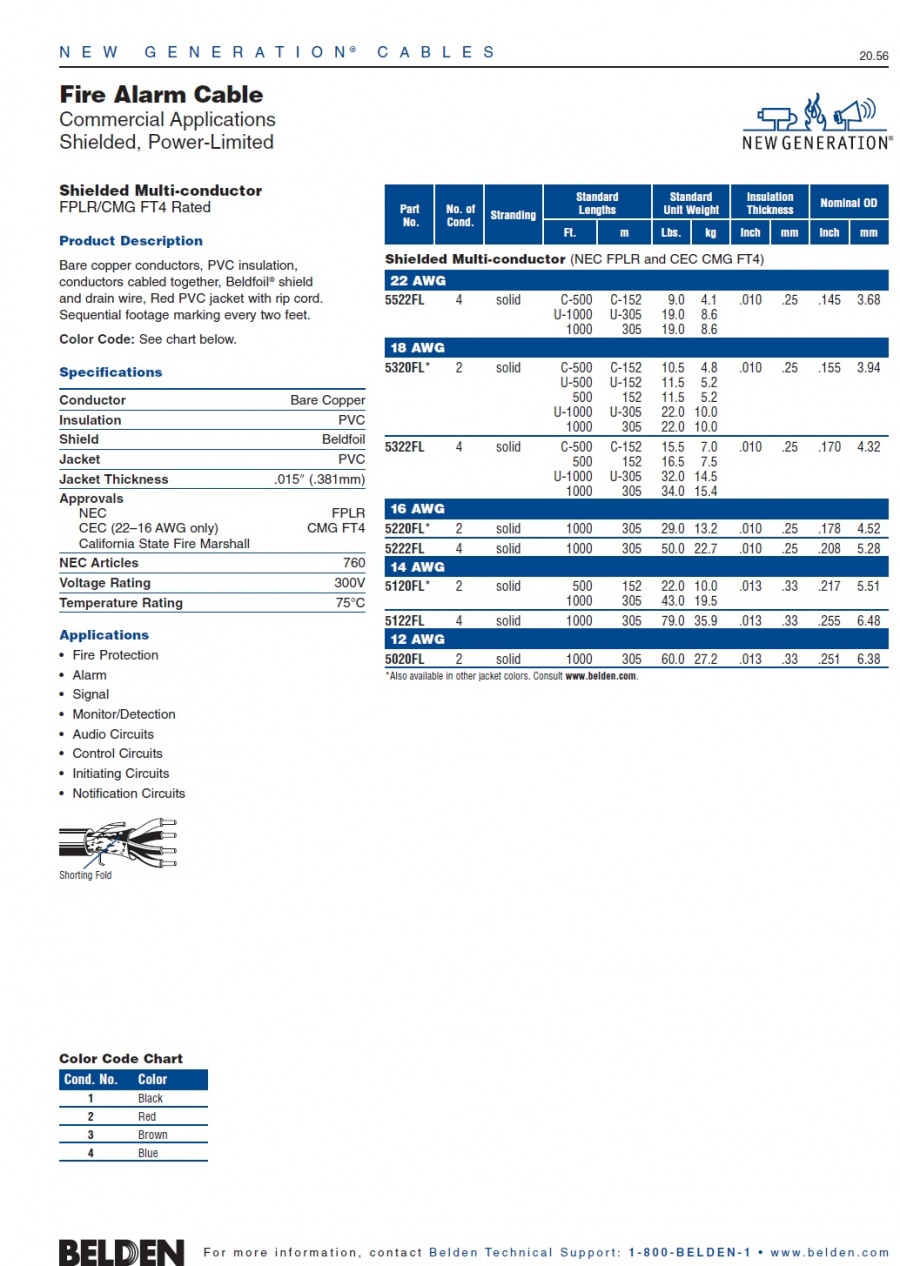

Fire Alarm Cable
Commercial Applications
Shielded, Power-Limited

Shielded Multi-conductor
FPLR/CMG FT4 Rated
　

Product Description
Bare copper conductors, PVC insulation,
conductors cabled together, Beldfoil® shield
and drain wire, Red PVC jacket with rip cord.
Sequential footage marking every two feet.
Color Code: See chart below.
　

Specifications
Conductor Bare Copper
Insulation PVC
Shield Beldfoil
Jacket PVC
Jacket Thickness .015″ (.381mm)
Approvals
NEC FPLR
CEC (22–16 AWG only) CMG FT4
California State Fire Marshall
NEC Articles 760
Voltage Rating 300V
Temperature Rating 75°C
　

Applications
• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits



5020FL

Multi-Conductor - Commercial Applications - 2 Conductors Cabled 12 AWG bare copper conductors, PP insulation, conductors cabled together, Beldfoil® shield and drain wire, PVC jacket with ripcord, sequential footage marking every two feet.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 5020FL 0021000 1,000 FT 60.000 LB RED C 2 #12 PP FS FRPVC

Notes:
C = CRATE REEL PUT-UP.

Usage (Overall)

Suitable Applications:

Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors AWG Stranding Conductor Material 2 12 Solid BC - Bare Copper

Insulation

Insulation Material:

Insulation Material Wall Thickness (in.) PP - Polypropylene 0.010

Outer Shield

Outer Shield Material:

Outer Shield Trade Name Outer Shield Material Coverage (%) Beldfoil® Aluminum Foil-Polyester Tape 100

Outer Shield Drain Wire AWG:

AWG Stranding Drain Wire Conductor Material 20 7 TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride 0.017

Outer Jacket Ripcord:

Yes

Overall Cable

Overall Cabling Lay Length & Direction:

Length (in.) Twists (twist/ft) 2.750 4.400

Overall Cabling Color Code Chart:

Number Color 1 Black 2 Red

Overall Nominal Diameter:

0.243 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

UL Temperature Rating:

75°C

Bulk Cable Weight:

56.800 lbs/1000 ft.

Max. Recommended Pulling Tension:

172 lbs.

Min. Bend Radius (Install)/Minor Axis:

2.500 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

FPLR

NEC Articles:

760

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

California State Fire Marshall

Flame Test

UL Flame Test:

UL1666 Vertical Shaft

CSA Flame Test:

FT4

Plenum/Non-Plenum

Plenum (Y/N):

No

Plenum Number:

6020FL

Electrical Characteristics (Overall)

Nom. Inductance:

Inductance (µH/ft) 0.140

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft) 71.000

Nom. Capacitance Cond. to Other Conductor & Shield:

Capacitance (pF/ft) 128.000

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 1.53

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 7.500

Max. Operating Voltage - UL:

Voltage 300 V RMS

Max. Recommended Current:

Current 12 Amps per conductor @ 25°C
