    首頁 > > Belden-Alarm Security and Speaker Cable

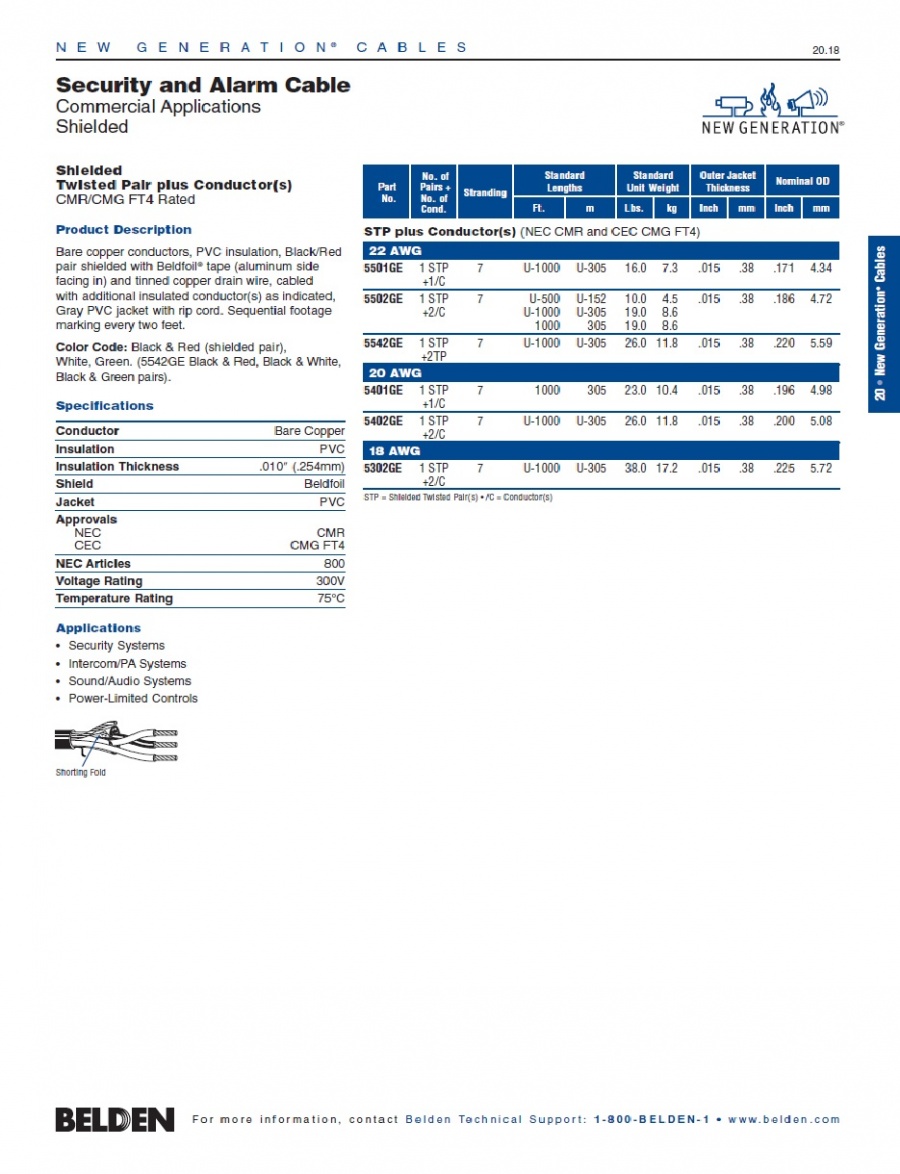

    Belden® -5501GE Awg22 x 1 STP+1/C Security and Alarm Cable STP plus Conductor(s) (NEC CMR and CEC CMG FT4) (對型鋁箔隔離+電源控制) 安全監控火災警報用線
    看原圖
    		5515962

    商品編號: Belden-5501GE

    Belden® -5501GE Awg22 x 1 STP+1/C Security and Alarm Cable STP plus Conductor(s) (NEC CMR and CEC CMG FT4) (對型鋁箔隔離    +電源控制)安全監控火災警報用線


    Security and Alarm Cable
    Commercial Applications
    Shielded

    Shielded
    Twisted Pair plus Conductor(s)
    CMR/CMG FT4 Rated
    Product Description
    Bare copper conductors, PVC insulation, Black/Red
    pair shielded with Beldfoil® tape (aluminum side
    facing in) and tinned copper drain wire, cabled
    with additional insulated conductor(s) as indicated,
    Gray PVC jacket with rip cord. Sequential footage
    marking every two feet.
    Color Code: Black & Red (shielded pair),
    White, Green. (5542GE Black & Red, Black & White,
    Black & Green pairs).
    Specifications
    Conductor Bare Copper
    Insulation PVC
    Insulation Thickness .010″ (.254mm)
    Shield Beldfoil
    Jacket PVC
    Approvals
    NEC CMR
    CEC CMG FT4
    NEC Articles 800
    Voltage Rating 300V
    Temperature Rating 75°C


    Applications
    • Security Systems
    • Intercom/PA Systems
    • Sound/Audio Systems
    • Power-Limited Controls

    Security and Alarm Cable
    Commercial Applications
    Shielded

    Shielded
    Twisted Pair plus Conductor(s)
    CMR/CMG FT4 Rated
    Product Description
    Bare copper conductors, PVC insulation, Black/Red
    pair shielded with Beldfoil® tape (aluminum side
    facing in) and tinned copper drain wire, cabled
    with additional insulated conductor(s) as indicated,
    Gray PVC jacket with rip cord. Sequential footage
    marking every two feet.
    Color Code: Black & Red (shielded pair),
    White, Green. (5542GE Black & Red, Black & White,
    Black & Green pairs).
    Specifications
    Conductor Bare Copper
    Insulation PVC
    Insulation Thickness .010″ (.254mm)
    Shield Beldfoil
    Jacket PVC
    Approvals
    NEC CMR
    CEC CMG FT4
    NEC Articles 800
    Voltage Rating 300V
    Temperature Rating 75°C


    Applications
    • Security Systems
    • Intercom/PA Systems
    • Sound/Audio Systems
    • Power-Limited Controls
