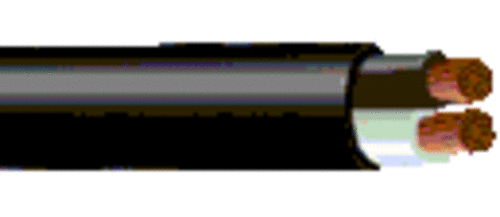

    BELDEN 8808WB 8AWG Class 1 Speaker Cable 揚聲器電纜(廣播喇叭用線)
    看原圖
    		BELDEN-8808WB

    BELDEN8808WB
    BELDEN 8808WB 8AWG Class 1 Speaker Cable NPLF, TC, THHN/THWN Singles 音響揚聲器電纜(廣播喇叭用線)
    8808WB
    		    Multi-Conductor - 8AWG Class 1 Speaker Cable
    8 AWG (19x21) bare copper conductors, PVC/nylon insulated, twisted pair, unshielded, waterblock tape, PVC jacket, rip cord


    Click here for Certificate
    Put Ups and Colors:
    Requested information is not available at this time

    Usage (Overall)
    Suitable Applications: Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    2 8 19x21H BC - Bare Copper
    Total Number of Conductors: 2

    Insulation
    Insulation Material:
    Layer # Insulation Material
    1 PVC
    2 Nylon

    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC

    Overall Cable
    Overall Cabling Separator Material: Waterblocking tape
    Overall Nominal Diameter: 0.602 in.

    Mechanical Characteristics (Overall)
    Wet Temperature Range: -30°C To +75°C
    Dry Temperature Range: -30°C To +90°C Dry
    Bulk Cable Weight: 186 lbs/1000 ft.
    Max. Recommended Pulling Tension: 352 lbs.
    Min. Bend Radius/Minor Axis: 6.250 in.

    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: NPLF, TC, THHN/THWN Singles
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 03/15/12
    EU Directive 2002/96/EC (WEEE): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes

    Flame Test
    UL Flame Test: UL1581 Vertical Tray
    CSA Flame Test: FT4
    IEEE Flame Test: 1202

    Suitability
    Suitability - Indoor: Yes
    Suitability - Outdoor: Yes
    Suitability - Burial: Yes
    Sunlight Resistance: Yes

    Plenum/Non-Plenum
    Plenum (Y/N): No

    Electrical Characteristics (Overall)
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    0.660

    Max. Operating Voltage - UL:
    Voltage
    600
