商品編號: Thermax-M17-060-RG142
Thermax- M17/060-RG142, MIL-C-17 coaxial and twinaxial cables 50Ω 同軸電纜

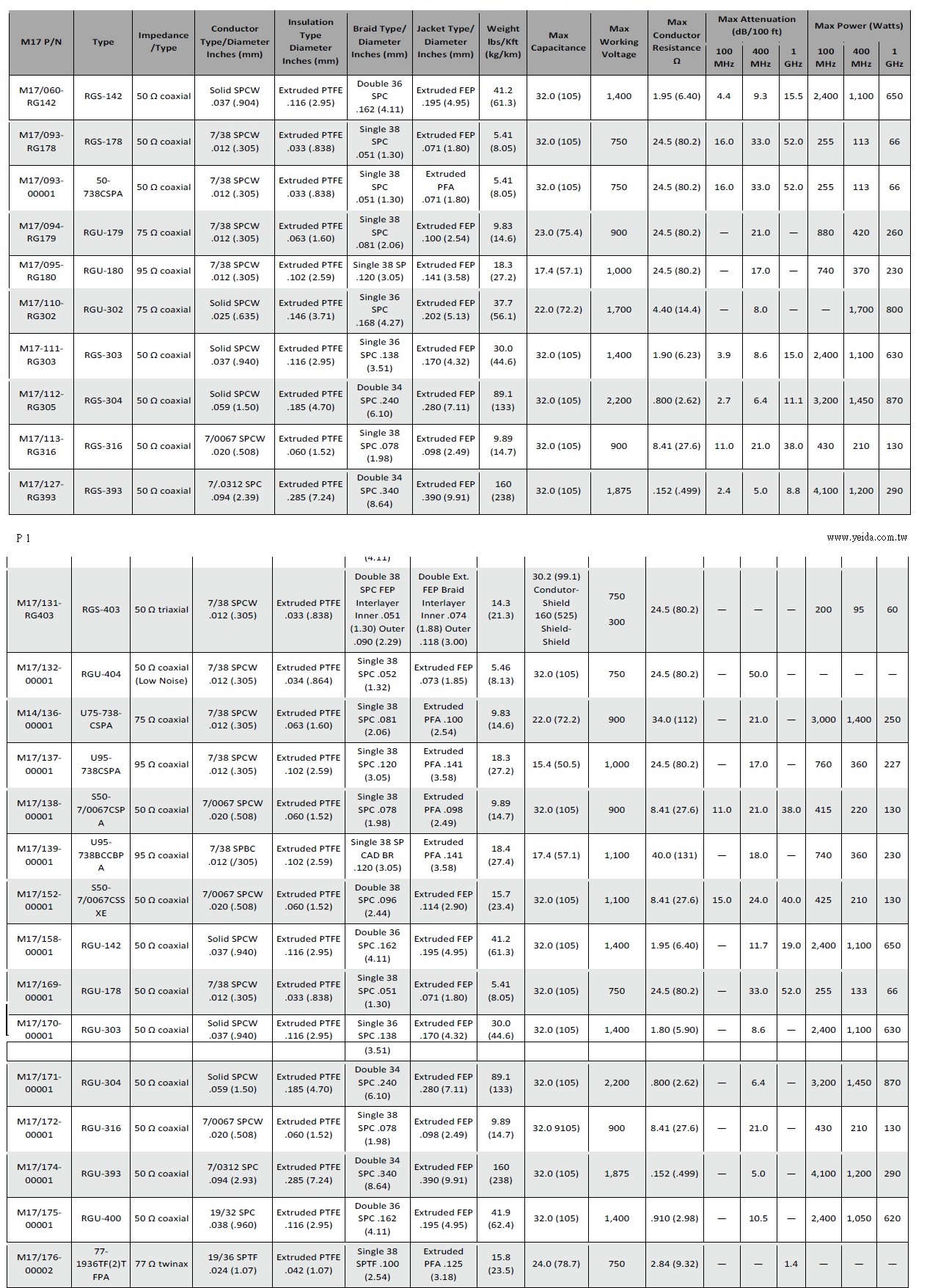

MIL-C-17 coaxial and twinaxial cables
Thermax/CDT Mil-C-17 cables are constructed with either solid or stranded silver plated conductors insulated with an extruded PTFE (polytetrafluoroethylene) dielectric. The outstanding electrical and mechanical properties of PTFE over a broad range of temperatures and frequencies make these Thermax/CDT coaxial cables the standard for a wide range of military and commercial applications
|
Conductor Diameter - inches (mm)
|
|
.037 (.694)
|
|
Conductor Type
|
|
Solid SPCW (Silver-plated copperweld (copper-covered steel)
|
|
Impedance
|
|
50Ω
|
|
Max. Working Voltage
|
|
1,400
|
|
Jacket Diameter - inches (mm)
|
|
.195 (4.95)
|
|
Capacitance (pF/ft)
|
|
32.0 (105)
|
|
Weight - pounds/1000 feet (Kg/1000 M)
|
|
41.2 (61.3)
|
|
Attenuation @ 100 MHz (dB/100 ft.)
|
|
5.5
|
|
Attenuation @ 1 GHz (dB/100 ft.)
|
|
19.0
|
|
Attenuation @ 400 MHz (dB/100 ft.)
|
|
11.7
|
|
Insulation Diameter - inches (mm)
|
|
.116 (2.95)
|
|
Jacket Type
|
|
Extruded FEP (Fluorinated Ethylene Propylene)
|
|
Insulation Type
|
|
Extruded PTFE (polytetrafluoroethylene)
|
|
Braid Type
|
|
Double 36 SPC (Silver-plated copper)
|
|
Braid Diameter - inches (mm)
|
|
.116 (2.95)
|
|
Max. Conductor Resistance - Ohm/100 ft. (ohm/100 meters)
|
|
1.95 (6.40)
|
|
Min. Dielectric Strength - KV RMS
|
|
5.00
|
|
Min. Corona Extinction - KV RMS
|
|
1.90
|
|
Max. Power @ 100 MHz (Watts)
|
|
2,400
|
|
Max. Power @ 400 MHz (Watts)
|
|
1,100
|
|
Max. Power @ 1 GHz (Watts)
|
|
650
|
|
Thermax Type
|
|
RGS-142
|
|
Cable Type
|
|
Coaxial
|
|
|
|
