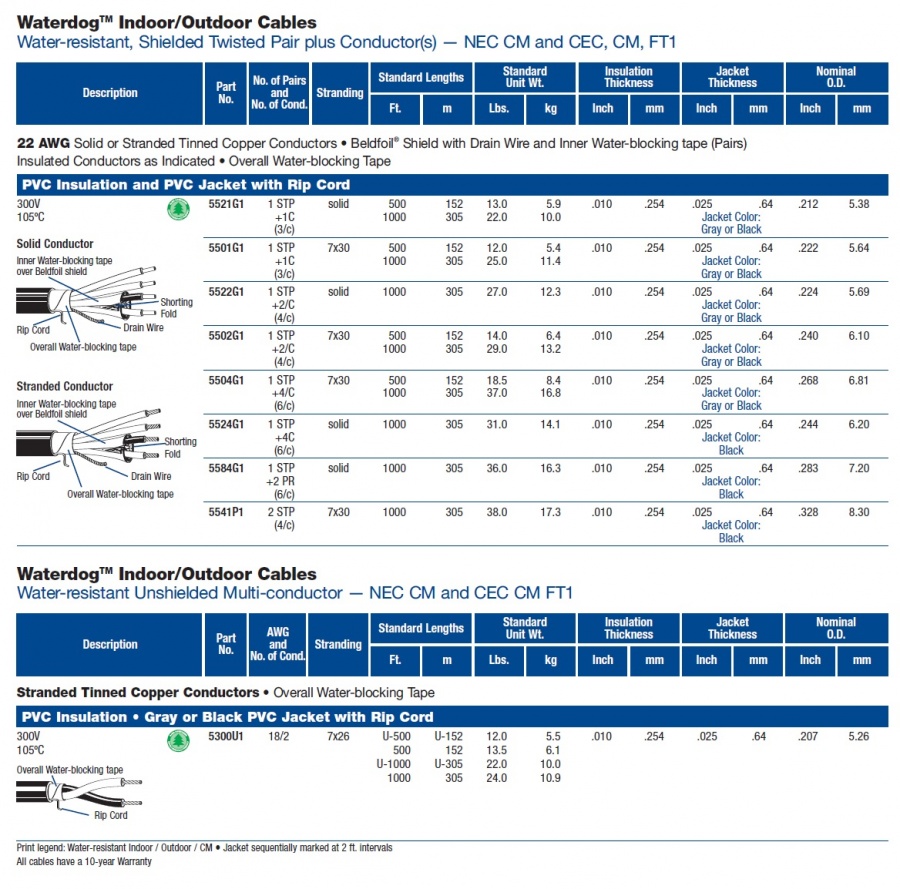

    Belden 5521G1, (5501G1, 5522G1, 5502G1) 22 AWG x1P + 22Awg x 1C Waterdog Cables Water-resistant, Shielded Twisted Pair plus Conductor(s)可直接埋設防水控制電纜
    看原圖
    		5343243

    商品編號: Belden-5521G1

    Belden-5521G1, (5501G1, 5522G1, 5502G1) 22 AWG x1P + 22Awg x 1C Waterdog  Cables Water-resistant, Shielded Twisted Pair plus Conductor(s)可直接埋設防水控制電纜


    User-friendly Waterdog paired, multi-conductor and coaxial cables meet the water-resistant
    standards of UL 444, UL 13 and the TIA 455-82B Water Filtration Test and are offered with Belden’s
    industry-leading 10-year Warranty.

    Water-resistant, Shielded Twisted Pair plus Conductor(s) — NEC CM and CEC, CM, FT1

    22 AWG Solid or Stranded Tinned Copper Conductors • Beldfoil® Shield with Drain Wire and Inner Water-blocking tape (Pairs)

    Insulated Conductors as Indicated • Overall Water-blocking Tape

    Belden now offers a complete line of water-resistant/
    direct burial cables called Waterdog. These
    cables allow building management systems to be
    connected seamlessly – indoors or out – above or
    below ground – from building to building or, for
    instance, from remote surveillance camera sites to
    indoor security monitors.
    　

    They are ideal for standard indoor/outdoor building
    management applications such as:
    　

    • Power limited fire alarm circuits
    • Intercom systems
    • Audio and sound systems
    • Access control systems
    • CCTV surveillance systems
    • CATV and distributed video systems
    • Background music and white noise
    　

    Best-in-Class Constructions


    Four constructions typify the Waterdog cable line:
    　

    • A single Beldfoil-shielded twisted pair with solid
    or stranded 22 AWG tinned copper conductors,
    PVC insulation and an inner water-blocking tape
    and drain wire plus 1-, 2- or 4-conductors, an
    overall water-blocking tape and PVC jacket with
    rip cord (Ratings: CM, FT1)
    • Unshielded and shielded multi-conductor cables
    with tinned copper (stranded) conductors, PVC
    insulation, an overall water-blocking tape and
    PVC jacket with rip cord (Ratings: CM, CMG, FT4,
    PLTC-ER, FPL). These codes are UL Exposed Run
    (ER) compliant. According to NEC 2005 these
    cables may be run without conduit or metal
    cladding for more than 6 feet — a use
    previously prohibited.
    • Solid bare copper conductor RG-59 (20 AWG)
    and RG-6 (18 AWG) coaxial cables with foam
    polyolefin insulation, either a water-blocking
    tape over the braid shield, or a CoreGuard®
    grease flooded braid, and PVC jackets
    (Ratings: CM, FT1)
    • Non-plenum composite cables (one coax plus a
    twisted pair in a Siamese configuration) – each
    component cable has a water-blocking tape.
    The coax has solid bare copper conductor, foam
    polyolefin insulation, bare copper braid shield
    and a PVC jacket; the pair has a stranded bare
    copper conductor, PVC insulation and jacket.
    (Ratings: CM, FT1)
    　

    Product Availability
    Belden Waterdog cables are available from stock
    and are offered with Belden’s industry-leading
    10-year Warranty.
