    Belden 5302U1, (5340U1, 5240U1, 5202U1, 5140U1, 5102U1) Waterdog (Water-resistant) PLTC and FPL Indoor/Outdoor Cables可直接埋設防水電纜
    看原圖
    		5343324

    商品編號: Belden-5302U1

    Belden-5302U1, (5340U1, 5240U1, 5202U1, 5140U1, 5102U1) Waterdog (Water-resistant) PLTC and FPL Indoor/Outdoor Cables可直接埋設防水電纜

    Belden now offers a complete line of water-resistant/direct burial cables called Waterdog. Thesecables allow building management systems to beconnected seamlessly – indoors or out – above orbelow ground – from building to building or, forinstance, from remote surveillance camera sites toindoor security monitors.　They are ideal for standard indoor/outdoor buildingmanagement applications such as:　• Power limited fire alarm circuits• Intercom systems• Audio and sound systems• Access control systems• CCTV surveillance systems• CATV and distributed video systems• Background music and white noise　Best-in-Class ConstructionsFour constructions typify the Waterdog cable line:　• A single Beldfoil-shielded twisted pair with solidor stranded 22 AWG tinned copper conductors,PVC insulation and an inner water-blocking tapeand drain wire plus 1-, 2- or 4-conductors, anoverall water-blocking tape and PVC jacket withrip cord (Ratings: CM, FT1)• Unshielded and shielded multi-conductor cableswith tinned copper (stranded) conductors, PVCinsulation, an overall water-blocking tape andPVC jacket with rip cord (Ratings: CM, CMG, FT4,PLTC-ER, FPL). These codes are UL Exposed Run(ER) compliant. According to NEC 2005 thesecables may be run without conduit or metalcladding for more than 6 feet — a usepreviously prohibited.• Solid bare copper conductor RG-59 (20 AWG)and RG-6 (18 AWG) coaxial cables with foampolyolefin insulation, either a water-blockingtape over the braid shield, or a CoreGuard®grease flooded braid, and PVC jackets(Ratings: CM, FT1)• Non-plenum composite cables (one coax plus atwisted pair in a Siamese configuration) – eachcomponent cable has a water-blocking tape.The coax has solid bare copper conductor, foampolyolefin insulation, bare copper braid shieldand a PVC jacket; the pair has a stranded barecopper conductor, PVC insulation and jacket.(Ratings: CM, FT1)　Product AvailabilityBelden Waterdog cables are available from stockand are offered with Belden’s industry-leading10-year Warranty.

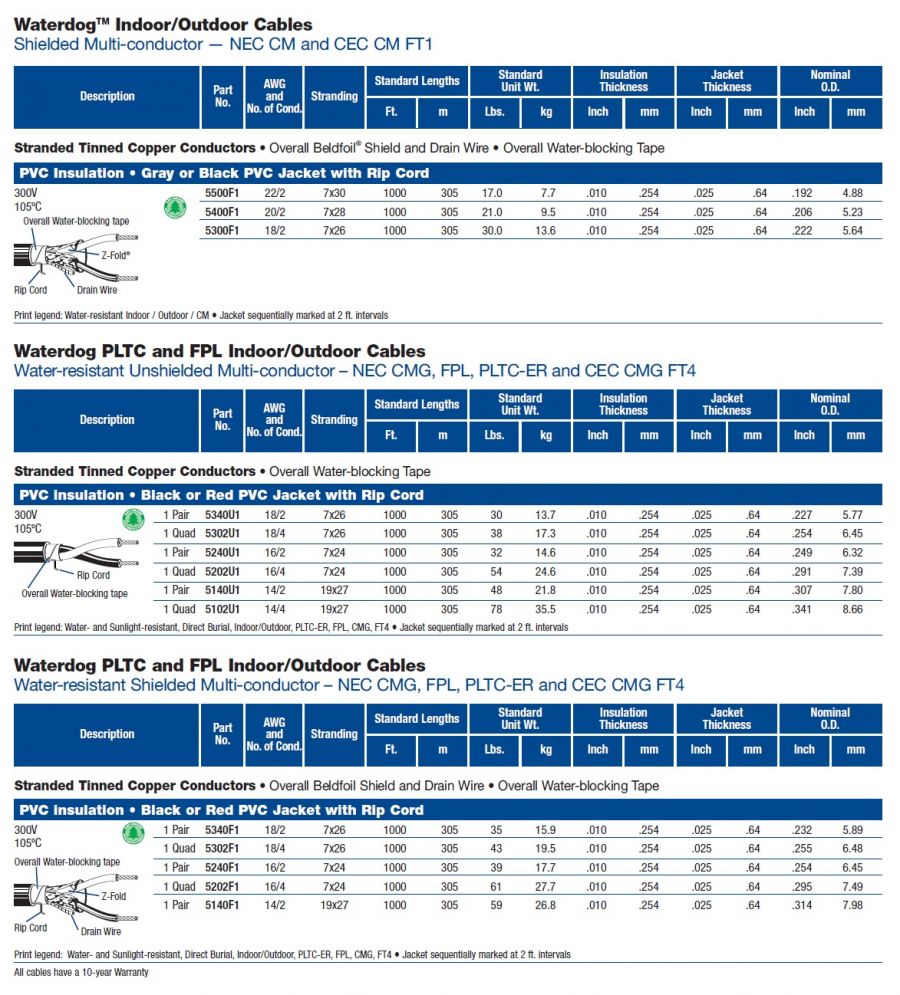

    Waterdog PLTC and FPL Indoor/Outdoor Cables

    Water-resistant Unshielded Multi-conductor – NEC CMG, FPL, PLTC-ER and CEC CMG FT4

    User-friendly Waterdog paired, multi-conductor and coaxial cables meet the water-resistant
    standards of UL 444, UL 13 and the TIA 455-82B Water Filtration Test and are offered with Belden’s
    industry-leading 10-year Warranty.

    Stranded Tinned Copper Conductors • Overall Beldfoil® Shield and Drain Wire • Overall Water-blocking Tape
    PVC Insulation

    Stranded Tinned Copper Conductors • Overall Water-blocking Tape
