    Belden31012  Hook-up/Lead  Awg12  UL Type SIS Wire 交連PE電子線

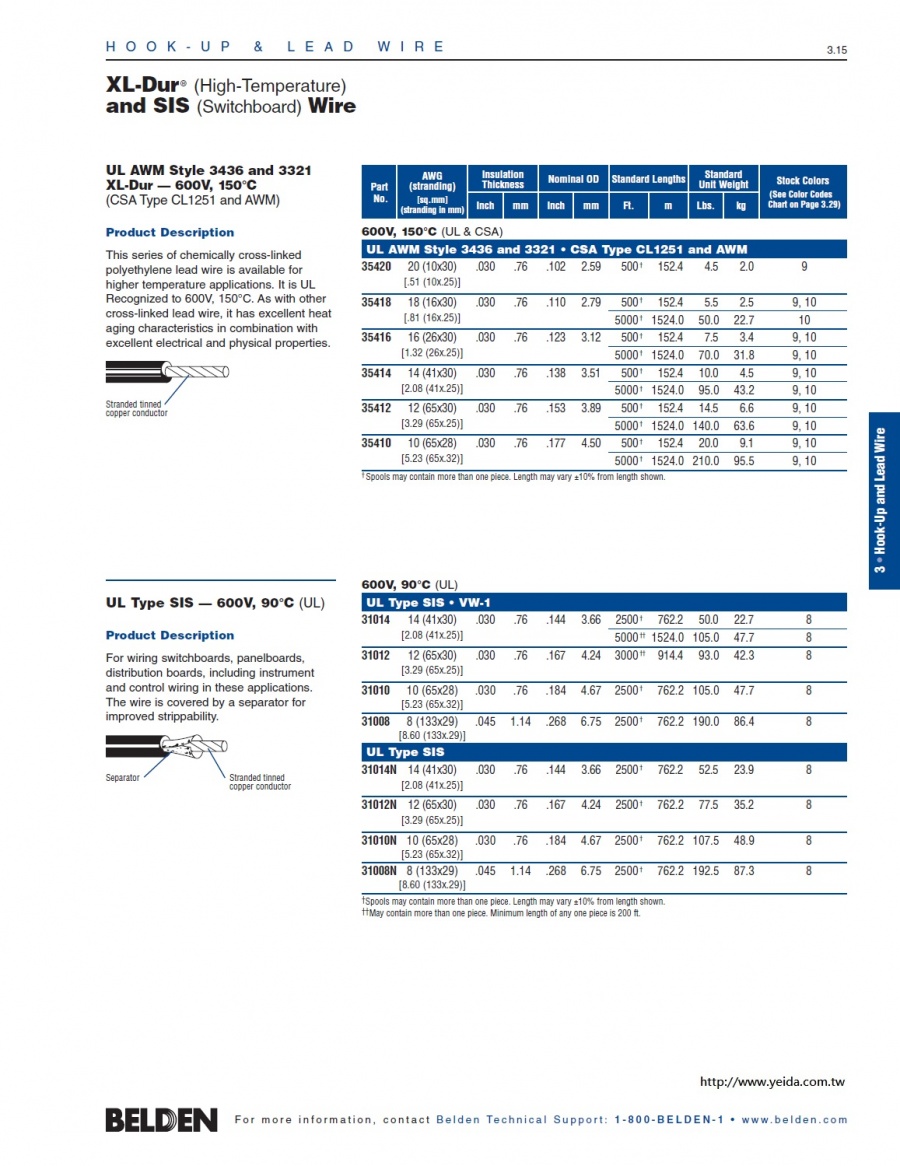

    看原圖
    454191

    商品編號: Belden31012 , yahoo, google, pchome

    Belden-31012 Hook-up/Lead - UL Type SIS Wire 美國 交連PE電子線

    31012    Hook-up/Lead - UL Type SIS Wire
    For wiring switchboards, panelboards, distribution boards, including instrument and control wiring in these applications. The wire is covered by a separator for improved strippability.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    31012 0083000 3,000 FT 93.000 LB GRAY C I U Z #12 STR XLPE 90C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10000' PER COLORCOMBINATION. (SEE TOPCOAT ADDER TABLE)
    Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 12 65x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    XLPE - Cross Linked Polyethylene .030
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.167 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL Rating: 600 V, 90°C
    UL Type: SIS
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: VW-1
    Plenum/Non-Plenum
    Plenum (Y/N): No
