Belden-8869 Awg22 High Voltage 17KVDC Hook-up Wire 高壓電子線

455476

商品編號: Belden-8869

Belden8869 Awg22 High Voltage 17KVDC Hook-up Wire 高壓電子線

8869

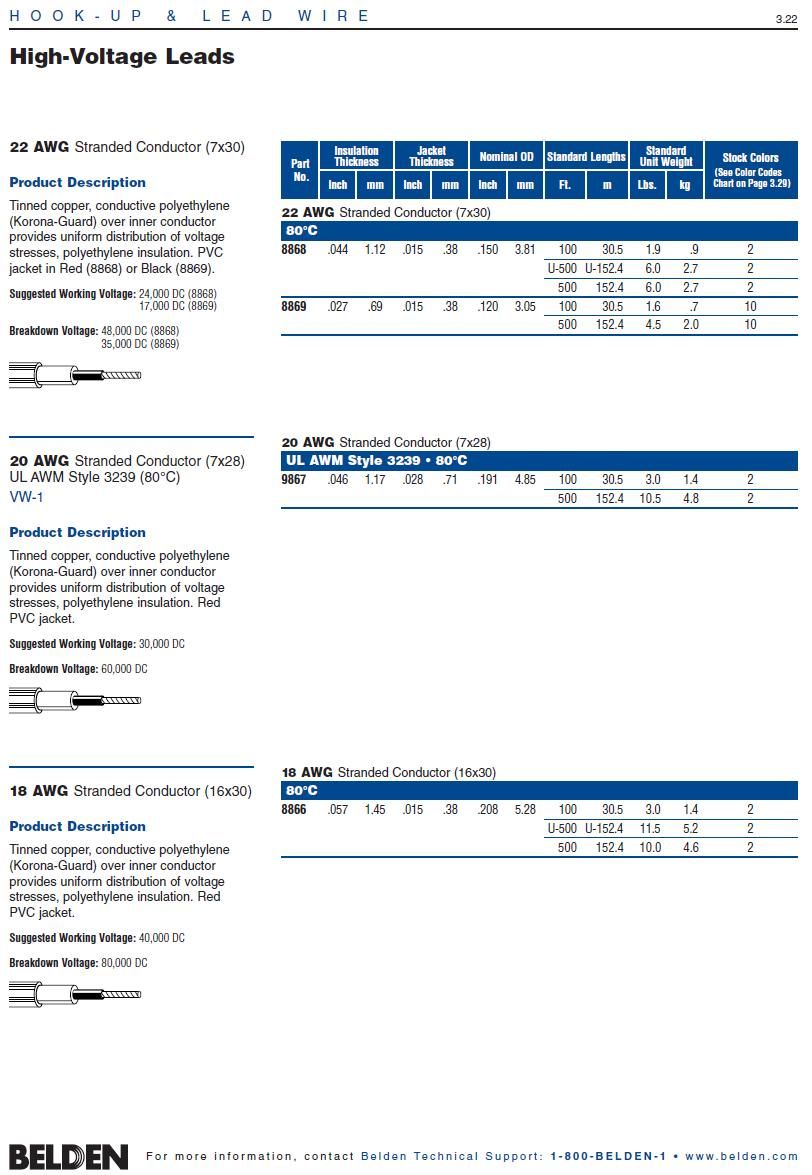

Hook-up/Lead - High Voltage Leads
Tinned copper conductor, conductive polyethylene (Korona-Guard) over inner conductor provides uniform distribution of voltage stresses, polyethylene insulated. PVC jacket in Black.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
8869 010100	100 FT	1.000 LB	BLACK		22 STR 17 KV HIGH VOLT
8869 010500	500 FT	4.500 LB	BLACK		22 STR 17 KV HIGH VOLT

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	22	7x30	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
PE - Polyethylene	.027

Other:

.003 in. conductive polyethylene over stranding.

Jacket

Jacket Material:

PVC - Polyvinyl Chloride

Jacket Thickness:

.015

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.120 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

80°C

Bulk Cable Weight:

8 lbs/1000 ft.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

EU CE Mark:

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

10/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Electrical Characteristics (Overall)

Max. Operating Voltage - Other:

Voltage	Description
17,000 V	DC
6000 V	AC (60 Hertz)

Breakdown Voltage:

35, 000 DC
