商品編號: 6KL-1201F-09
SIS 電線 Awg 12 ( 3.5MM*) XLPE 90度 600V UL交連PE抗輻射,耐熱,耐燃,抗腐蝕蒸氣,防油,配電盤用線

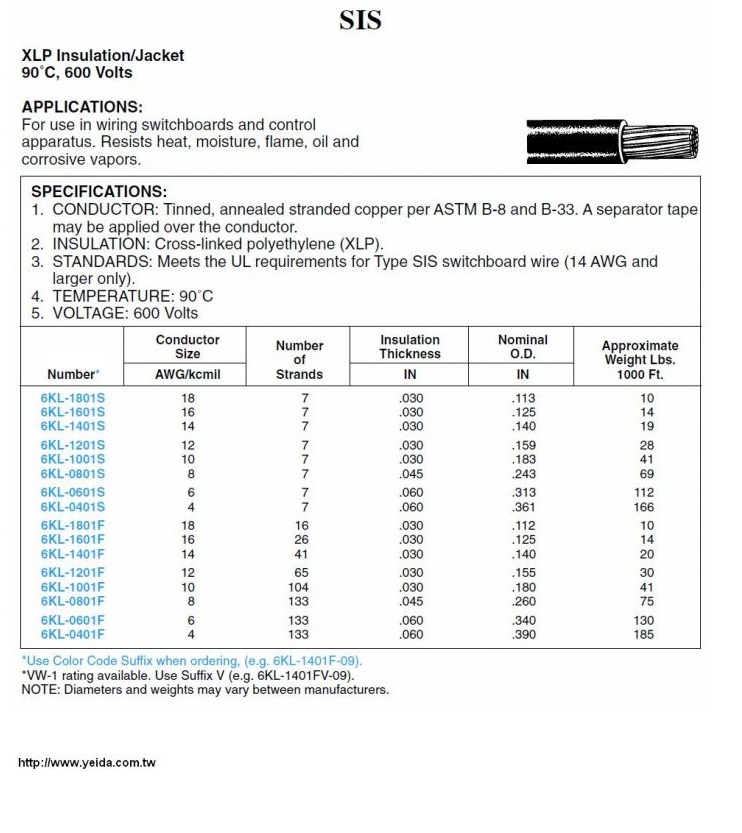

SIS switchboard wire. Tinned, annealed stranded copper conductors. A separator tape may be applied over the conductor. Cross-linked polyethylene (XLP) insulation. 90C. 600 volts. Resists heat, moisture, flame, oil, and corrosive vapors
Attributes |
Gauge: (AWG) |
12 AWG (AMERICAN WIRE GAUGE) |
CONDUCTOR: Stranding |
65 STRANDS IN EACH CONDUCTOR |
Material |
TINNED COPPER |
INSULATION: Material |
XLP-CROSS LINKED POLYETHYLENE |
Color |
GRAY (SLATE) |
Shielded: |
NOT SHIELDED |
SPEC/STD: UL |
UL LISTED TYPE SIS (SWITCHBOARD WIRE) |
Temperature Rating: |
90 DEGREES CENTIGRADE (194 F) |
Voltage Rating: |
600 VOLTS AC OR DC |
|
