    首頁 > > AN-SIS-Wire-電線XLP-600V-90度(配電盤用線)

    SIS 電線 Awg 12 ( 3.5MM*) 7 STR XLPE 90度 600V UL交連PE抗輻射,耐熱,耐燃,抗腐蝕蒸氣,防油,配電盤用線

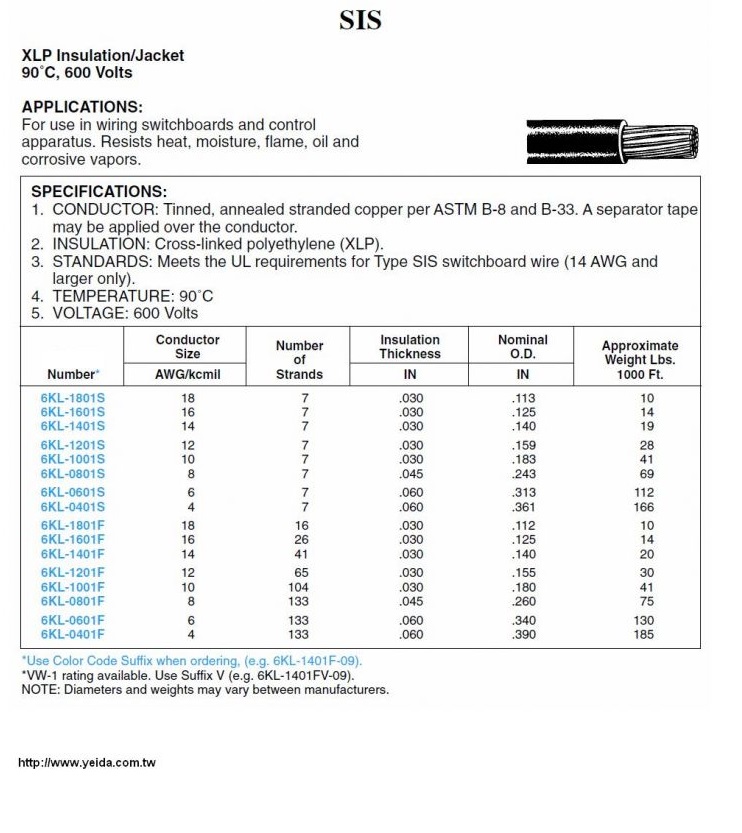

    看原圖
    		476275

    商品編號: SIS-6KL-1201S

    SIS 電線 Awg 12 ( 3.5MM*) 7 STR XLPE 90度 600V UL交連PE抗輻射,耐熱,耐燃,抗腐蝕蒸氣,防油,配電盤用線

    SIS. Tinned, annealed stranded copper conductors. A separator tape may be applied over the conductor. Cross-linked polyethylene (XLP) insulation. 90C. 600 volts. Resists heat, moisture, flame, oil, and corrosive vapors



    Gauge: (AWG) 12 AWG (AMERICAN WIRE GAUGE)
    CONDUCTOR: Stranding 7 STRANDS IN EACH CONDUCTOR
    Material TINNED COPPER
    INSULATION: Material XLP-CROSS LINKED POLYETHYLENE
    Color GRAY (SLATE)
    Shielded: NOT SHIELDED
    SPEC/STD: UL UL LISTED TYPE SIS (SWITCHBOARD WIRE)
    Temperature Rating: 90 DEGREES CENTIGRADE (194 F)
    Voltage Rating: 600 VOLTS AC OR DC
    Product Type: SWITCHBOARD
