| 商品編號: HELUKABEL-FMSGSGO

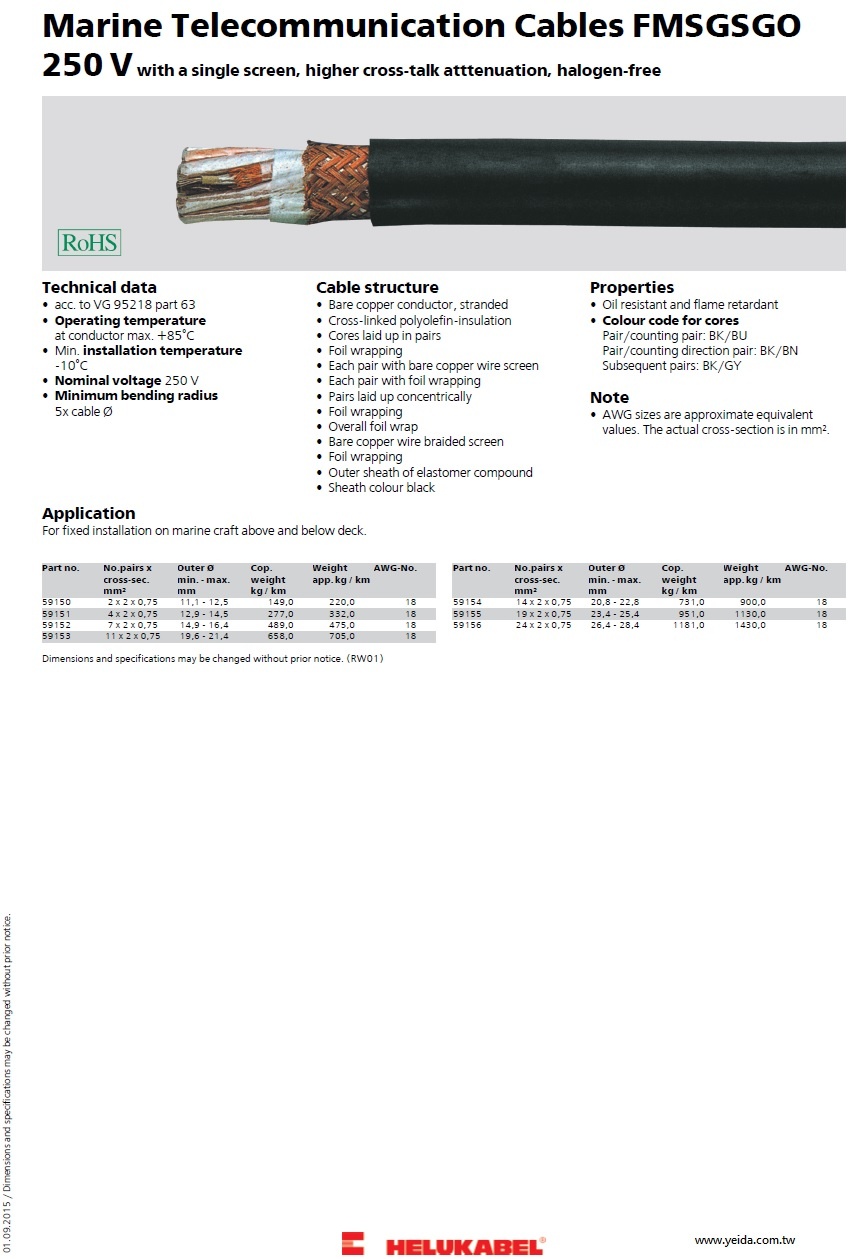

Marine Telecommunication Cables FMSGSGO 250 V with a single screen, higher cross-talk attenuation, halogen-free 船用通信電纜 |
| |
| | |
玉山 / 台新 / 華南 / 萬泰 / 兆豐 / 遠東 / 新光 / 永豐 / 第一 / 彰化 / 合庫 / 日盛 / 匯豐 / 渣打國泰世華 / 台北富邦 / 大眾銀行 / 台灣中小企銀/台中商銀 / 澳盛銀行
| |
| | |
| | Marine Telecommunication Cables FMSGSGO 250 V with a single screen, higher cross-talk attenuation, halogen-free 船用通信電纜 Technical data- acc. to VG 95218 part 63
- Operating temperature
at conductor max. +85°C - Min. installation temperature
-10°C - Nominal voltage 250 V
- Minimum bending radius
5x cable Ø Cable structure- Bare copper conductor, stranded
- Cross-linked polyolefin-insulation
- Cores laid up in pairs
- Foil wrapping
- Each pair with bare copper wire screen
- Each pair with foil wrapping
- Pairs laid up concentrically
- Foil wrapping
- Overall foil wrap
- Bare copper wire braided screen
- Foil wrapping
- Outer sheath of elastomer compound
- Sheath colour black
Properties- Oil resistant and flame retardant
- Colour code for cores
Pair/counting pair: BK/BU Pair/counting direction pair: BK/BN Subsequent pairs: BK/GY NoteApplicationFor fixed installation on marine craft above and below deck.Part no. | No.pairs x cross-sec. mm² | Outer Ø min. - max. mm | Cop. weight kg / km | Weight approx. kg / km | AWG-No. |
---|
59150 | 2 x 2 x 0,75 | 11,1 - 12,5 | 149,0 | 220,0 | 18 | 59151 | 4 x 2 x 0,75 | 12,9 - 14,5 | 277,0 | 332,0 | 18 | 59152 | 7 x 2 x 0,75 | 14,9 - 16,4 | 489,0 | 475,0 | 18 | 59153 | 11 x 2 x 0,75 | 19,6 - 21,4 | 658,0 | 705,0 | 18 | 59154 | 14 x 2 x 0,75 | 20,8 - 22,8 | 731,0 | 900,0 | 18 | 59155 | 19 x 2 x 0,75 | 23,4 - 25,4 | 951,0 | 1130,0 | 18 | 59156 | 24 x 2 x 0,75 | 26,4 - 28,4 | 1181,0 | 1430,0 | 18 | |
| |
|
|
