| 商品編號: HELUKABEL-LFMGSSGO

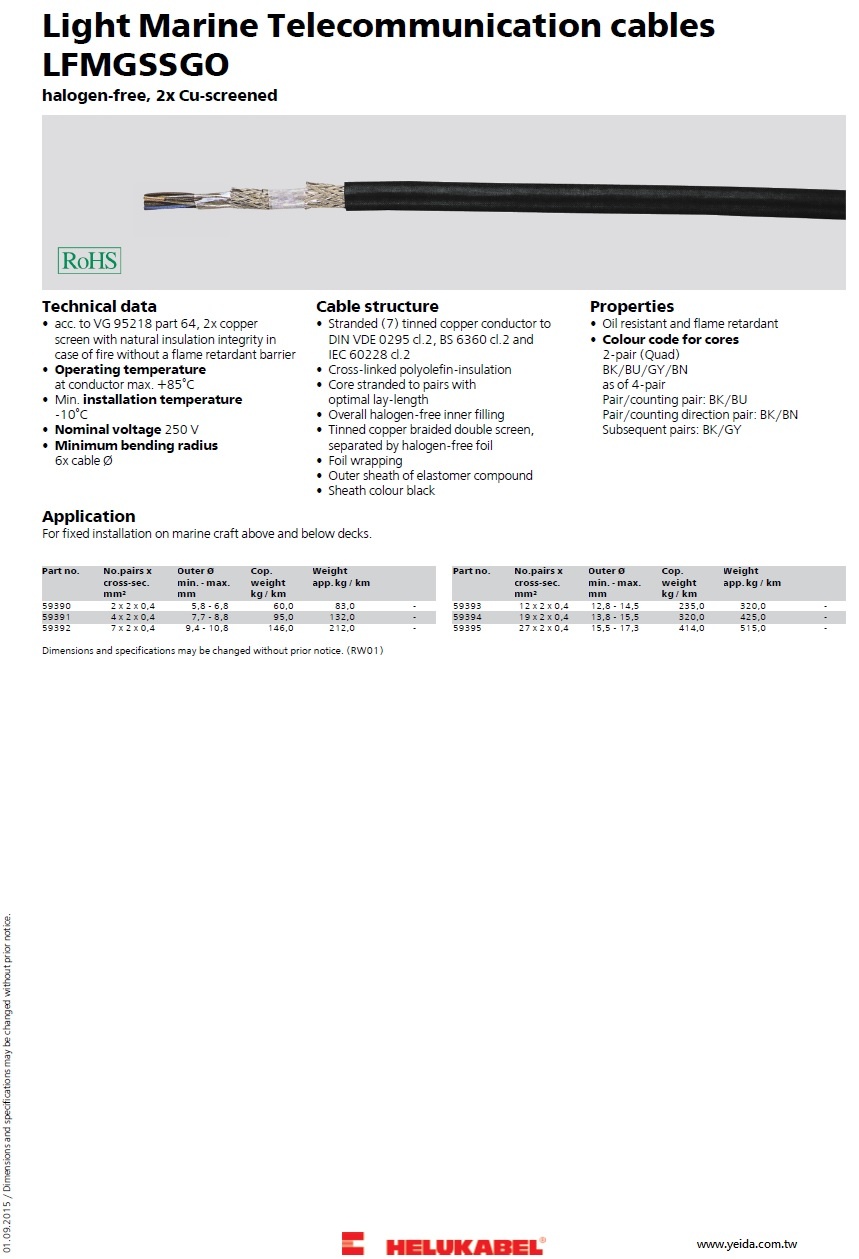

Light Marine telecommunication Cables LFMGSSGO halogen-free, 2x Cu-screened 無鹵雙銅網屏蔽海洋通信電纜 |
| |
| | |
玉山 / 台新 / 華南 / 萬泰 / 兆豐 / 遠東 / 新光 / 永豐 / 第一 / 彰化 / 合庫 / 日盛 / 匯豐 / 渣打國泰世華 / 台北富邦 / 大眾銀行 / 台灣中小企銀/台中商銀 / 澳盛銀行
| |
| | |
| | Technical data- acc. to VG 95218 part 64, 2x copper
screen with natural insulation integrity in case of fire without a flame retardant barrier - Operating temperature
at conductor max. +85°C - Min. installation temperature
-10°C - Nominal voltage 250 V
- Minimum bending radius
6x cable Ø Cable structure- Stranded (7) tinned copper conductor to
DIN VDE 0295 cl.2, BS 6360 cl.2 and IEC 60228 cl.2 - Cross-linked polyolefin-insulation
- Core stranded to pairs with
optimal lay-length - Overall halogen-free inner filling
- Tinned copper braided double screen,
separated by halogen-free foil - Foil wrapping
- Outer sheath of elastomer compound
- Sheath colour black
Properties- Oil resistant and flame retardant
- Colour code for cores
2-pair (Quad) BK/BU/GY/BN as of 4-pair Pair/counting pair: BK/BU Pair/counting direction pair: BK/BN Subsequent pairs: BK/GY ApplicationFor fixed installation on marine craft above and below decks.Part no. | No.pairs x cross-sec. mm² | Outer Ø min. - max. mm | Cop. weight kg / km | Weight approx. kg / km | |
---|
59390 | 2 x 2 x 0,4 | 5,8 - 6,8 | 60,0 | 83,0 | - | 59391 | 4 x 2 x 0,4 | 7,7 - 8,8 | 95,0 | 132,0 | - | 59392 | 7 x 2 x 0,4 | 9,4 - 10,8 | 146,0 | 212,0 | - | 59393 | 12 x 2 x 0,4 | 12,8 - 14,5 | 235,0 | 320,0 | - | 59394 | 19 x 2 x 0,4 | 13,8 - 15,5 | 320,0 | 425,0 | - | 59395 | 27 x 2 x 0,4 | 15,5 - 17,3 | 414,0 | 515,0 | - | |
| |
|
|
