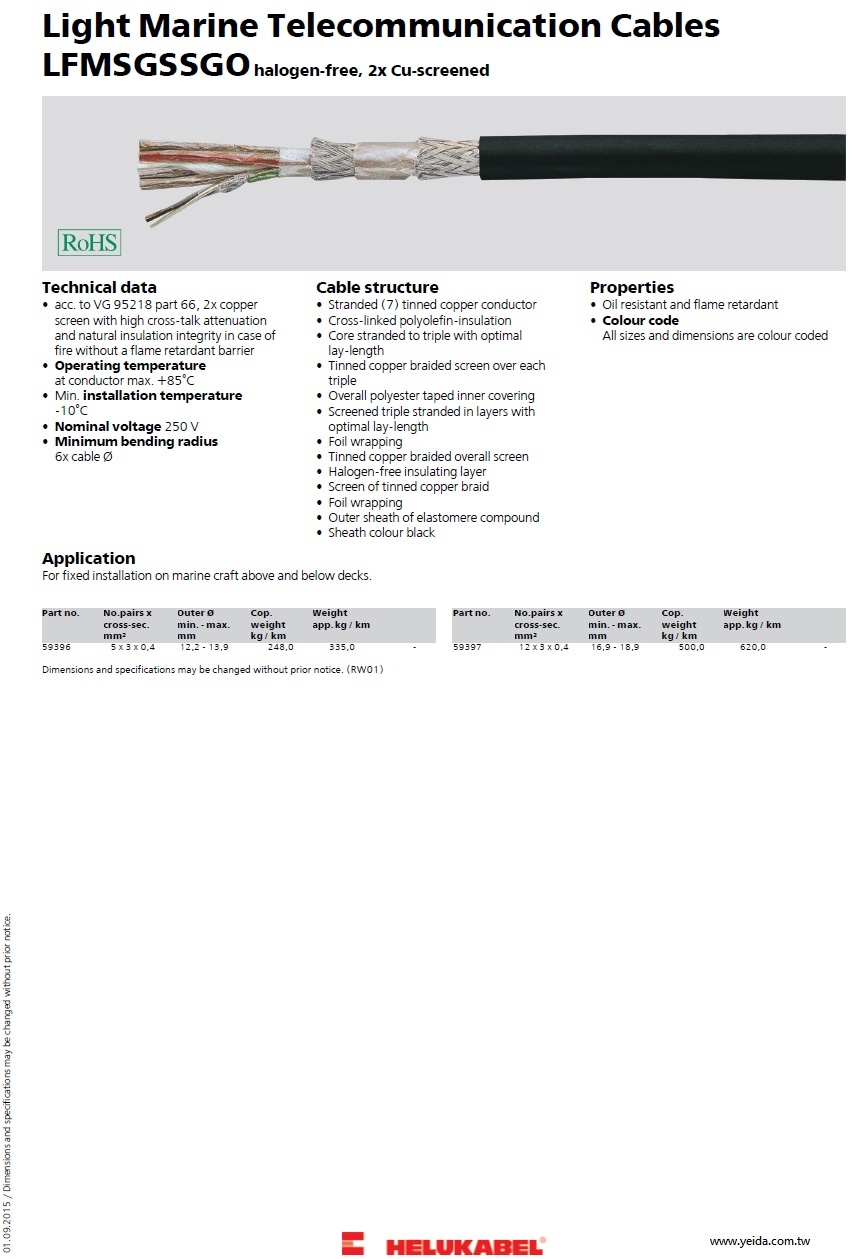

    Light Marine Telecommunication Cables LFMSGSSGO halogen-free, 2x Cu-screened 無鹵雙銅網屏蔽海洋通信電纜
    看原圖
    		30184182




    商品編號: HELUKABEL-LFMSGSSGO

    Light Marine Telecommunication Cables LFMSGSSGO halogen-free, 2x Cu-screened 無鹵雙銅網屏蔽海洋通信電纜



    ★★★★商品說明★★★★

    Light Marine Telecommunication Cables LFMSGSSGO

    halogen-free, 2x Cu-screened

    Technical data
    • acc. to VG 95218 part 66, 2x copper
      screen with high cross-talk attenuation
      and natural insulation integrity in case of
      fire without a flame retardant barrier
    • Operating temperature
      at conductor max. +85°C
    • Min. installation temperature
      -10°C
    • Nominal voltage 250 V
    • Minimum bending radius
      6x cable Ø
    Cable structure
    • Stranded (7) tinned copper conductor
    • Cross-linked polyolefin-insulation
    • Core stranded to triple with optimal
      lay-length
    • Tinned copper braided screen over each
      triple
    • Overall polyester taped inner covering
    • Screened triple stranded in layers with
      optimal lay-length
    • Foil wrapping
    • Tinned copper braided overall screen
    • Halogen-free insulating layer
    • Screen of tinned copper braid
    • Foil wrapping
    • Outer sheath of elastomere compound
    • Sheath colour black
    Properties
    • Oil resistant and flame retardant
    • Colour code
      All sizes and dimensions are colour coded
    Application
    For fixed installation on marine craft above and below decks.

    Part no.

    No.pairs x
    cross-sec.
    mm²

    Outer Ø

    min. - max.

    mm

    Cop.
    weight

    kg / km

    Weight

    approx. kg / km

    59396

    		5 x 3 x 0,4

    12,2 - 13,9

    248,0

    335,0

    		-

    59397

    		12 x 3 x 0,4

    16,9 - 18,9

    500,0

    620,0

    		-
