JZ-602-PUR / OZ-602-PUR 80°C, 600V, UL/CSA two approval control cable, meter marking

30169458

商品編號: HELUKABEL-JZ-602-PUR

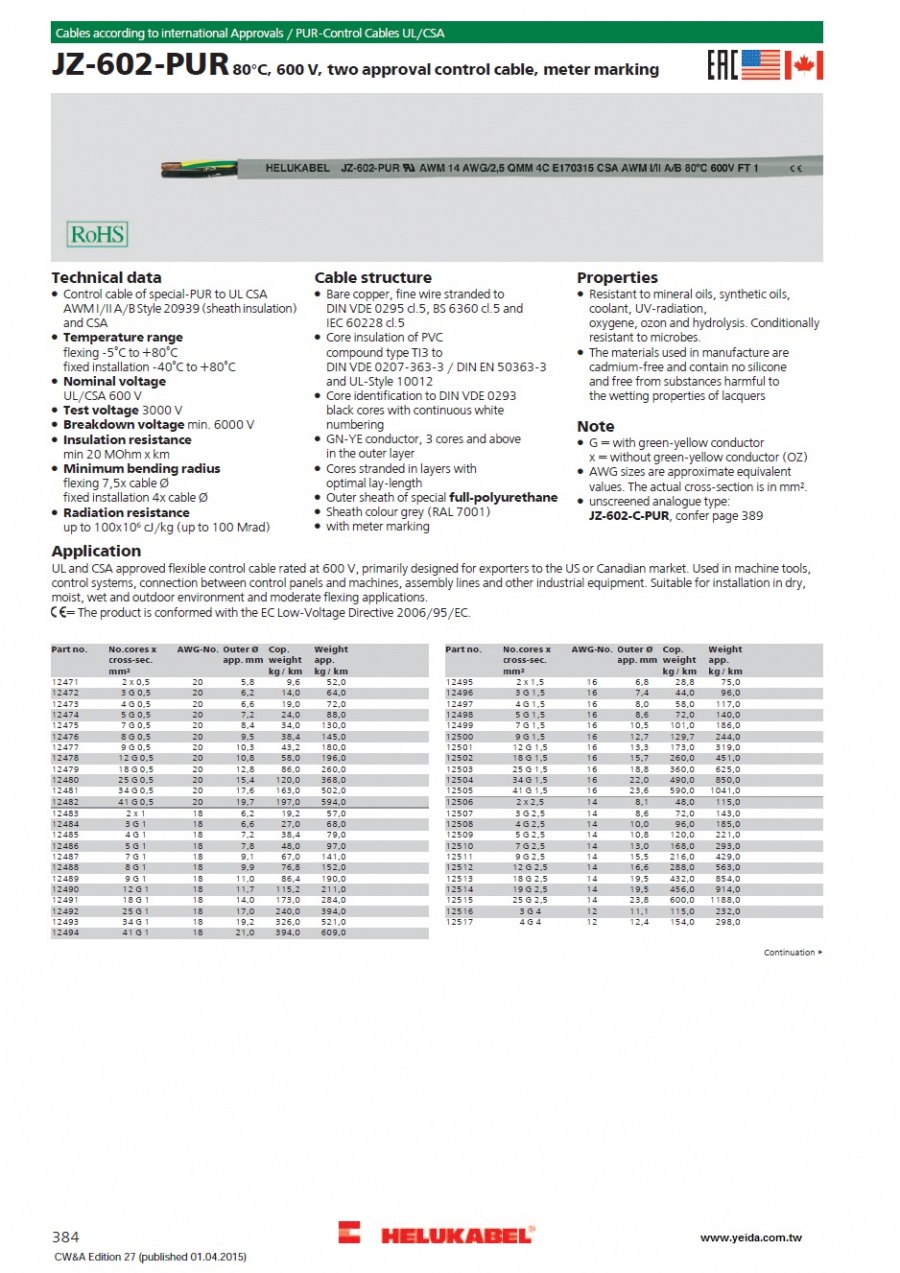

JZ-602-PUR / OZ-602-PUR 80°C, 600V, UL/CSA two approval control cable, meter marking

JZ-602-PUR DC/AC 80°C, 600V, two approvals control cable, meter marking

★★★★商品說明★★★★

Technical data

Control cable of special-PUR to UL CSA
AWM I/II A/B Style 20939 (sheath insulation)
and CSA
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
UL/CSA 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance
min 20 MOhm x km
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)

Cable structure

Bare copper, fine wire stranded to
DIN VDE 0295 cl.5, BS 6360 cl.5 and
IEC 60228 cl.5
Core insulation of PVC
compound type TI3 to
DIN VDE 0207-363-3 / DIN EN 50363-3
and UL-Style 10012
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-length
Outer sheath of special full-polyurethane
Sheath colour grey (RAL 7001)
with meter marking

Properties

Resistant to mineral oils, synthetic oils,
coolant, UV-radiation,
oxygene, ozon and hydrolysis. Conditionally
resistant to microbes.
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
unscreened analogue type:
JZ-602-C-PUR

Application

UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
