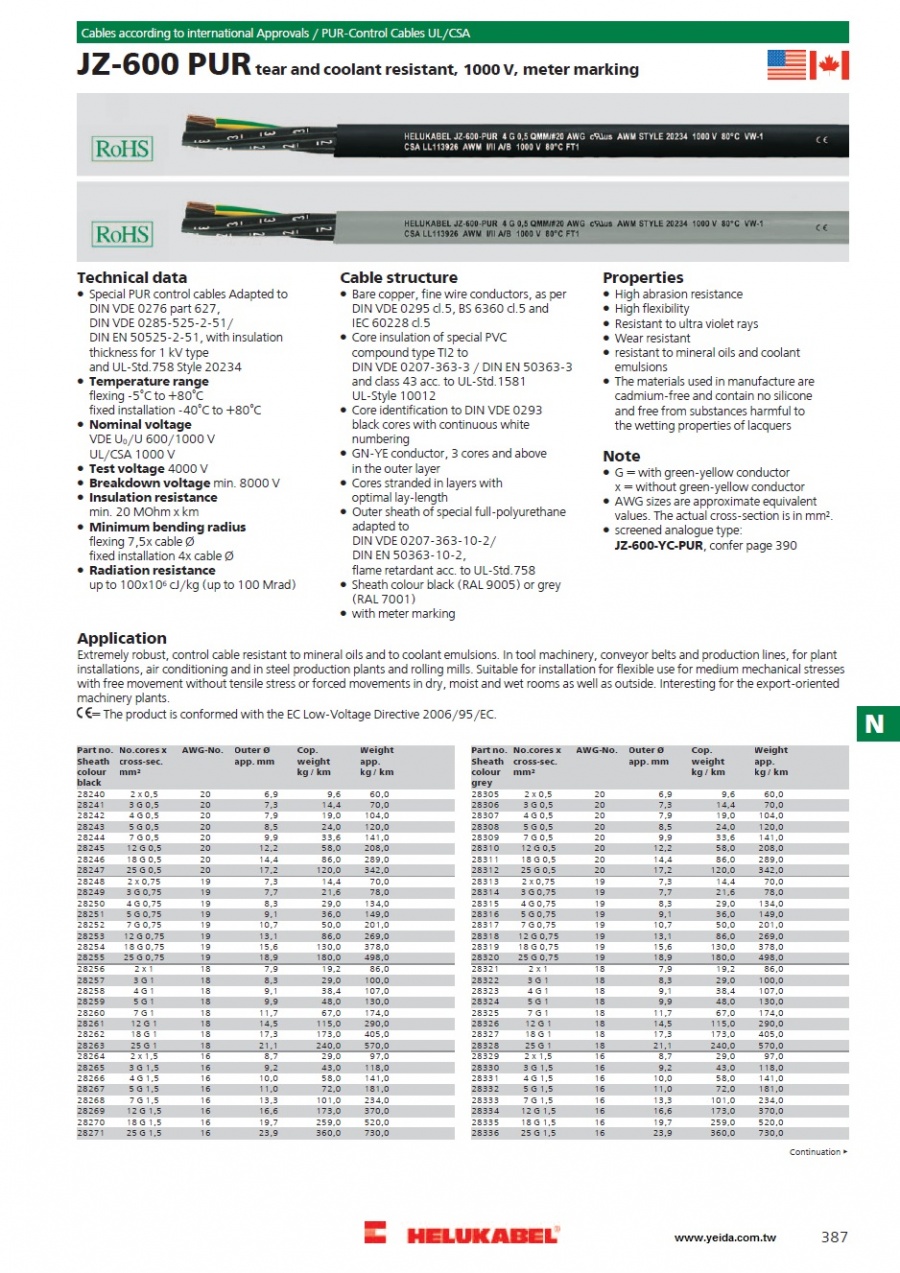

JZ-600 PUR tear and coolant resistant, 0,6/1kV, meter marking

30169459

商品編號: HELUKABEL-JZ-600-PUR

JZ-600 PUR tear and coolant resistant, 0,6/1kV, meter marking

Sheath colour grey & Black

★★★★商品說明★★★★

Technical data

Special PUR control cables Adapted to
DIN VDE 0276 part 627,
DIN VDE 0285-525-2-51/
DIN EN 50525-2-51, with insulation
thickness for 1 kV type
and UL-Std.758 Style 20234
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
VDE U₀/U 600/1000 V
UL/CSA 1000 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)

Cable structure

Bare copper, fine wire conductors, as per
DIN VDE 0295 cl.5, BS 6360 cl.5 and
IEC 60228 cl.5
Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3
and class 43 acc. to UL-Std.1581
UL-Style 10012
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-length
Outer sheath of special full-polyurethane
adapted to
DIN VDE 0207-363-10-2/
DIN EN 50363-10-2,
flame retardant acc. to UL-Std.758
Sheath colour black (RAL 9005) or grey
(RAL 7001)
with meter marking

Properties

High abrasion resistance
High flexibility
Resistant to ultra violet rays
Wear resistant
resistant to mineral oils and coolant
emulsions
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Note

G = with green-yellow conductor
x = without green-yellow conductor
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
screened analogue type:
JZ-600-YC-PUR

Application

Extremely robust, control cable resistant to mineral oils and to coolant emulsions. In tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside. Interesting for the export-oriented machinery plants.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
Sheath colour grey	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
28305	2 x 0,5	20	6,9	9,6	60,0
28306	3 G 0,5	20	7,3	14,4	70,0
28307	4 G 0,5	20	7,9	19,0	104,0
28308	5 G 0,5	20	8,5	24,0	120,0
28309	7 G 0,5	20	9,9	33,6	141,0
28310	12 G 0,5	20	12,2	58,0	208,0
28311	18 G 0,5	20	14,4	86,0	289,0
28312	25 G 0,5	20	17,2	120,0	342,0
28313	2 x 0,75	19	7,3	14,4	70,0
28314	3 G 0,75	19	7,7	21,6	78,0
28315	4 G 0,75	19	8,3	29,0	134,0
28316	5 G 0,75	19	9,1	36,0	149,0
28317	7 G 0,75	19	10,7	50,0	201,0
28318	12 G 0,75	19	13,1	86,0	269,0
28319	18 G 0,75	19	15,6	130,0	378,0
28320	25 G 0,75	19	18,9	180,0	498,0
28321	2 x 1	18	7,9	19,2	86,0
28322	3 G 1	18	8,3	29,0	100,0
28323	4 G 1	18	9,1	38,4	107,0
28324	5 G 1	18	9,9	48,0	130,0
28325	7 G 1	18	11,7	67,0	174,0
28326	12 G 1	18	14,5	115,0	290,0
28327	18 G 1	18	17,3	173,0	405,0
28328	25 G 1	18	21,1	240,0	570,0
28329	2 x 1,5	16	8,7	29,0	97,0
28330	3 G 1,5	16	9,2	43,0	118,0
28331	4 G 1,5	16	10,0	58,0	141,0
28332	5 G 1,5	16	11,0	72,0	181,0
28333	7 G 1,5	16	13,3	101,0	234,0
28334	12 G 1,5	16	16,6	173,0	370,0
28335	18 G 1,5	16	19,7	259,0	520,0
28336	25 G 1,5	16	23,9	360,0	730,0
28337	2 x 2,5	14	9,5	48,0	170,0
28338	3 G 2,5	14	10,0	72,0	181,0
28339	4 G 2,5	14	11,1	96,0	203,0
28340	5 G 2,5	14	12,4	120,0	251,0
28341	7 G 2,5	14	15,0	168,0	330,0
28342	12 G 2,5	14	18,4	288,0	553,0
28343	18 G 2,5	14	22,0	432,0	795,0
28344	25 G 2,5	14	26,9	600,0	1110,0
28345	2 x 4	12	11,4	77,0	190,0
28346	3 G 4	12	12,3	115,0	235,0
28347	4 G 4	12	13,8	154,0	310,0
28348	5 G 4	12	15,3	192,0	410,0
28349	7 G 4	12	16,8	269,0	540,0
28350	12 G 4	12	22,9	461,0	860,0
28351	3 G 6	10	14,1	173,0	370,0
28352	4 G 6	10	15,6	230,0	430,0
28353	5 G 6	10	17,3	288,0	650,0
28354	7 G 6	10	19,3	403,0	860,0
28355	3 G 10	8	16,5	288,0	660,0
28356	4 G 10	8	18,4	384,0	790,0
28357	5 G 10	8	20,5	480,0	960,0
28358	7 G 10	8	22,5	672,0	1300,0
28359	3 G 16	6	19,6	461,0	709,0
28360	4 G 16	6	21,7	614,0	1114,0
28361	5 G 16	6	24,2	768,0	1620,0
28362	7 G 16	6	25,8	1075,0	1900,0
28363	3 G 25	4	24,0	720,0	1450,0
28364	4 G 25	4	26,9	960,0	1600,0
28365	5 G 25	4	29,3	1200,0	2050,0
28366	7 G 25	4	32,6	1680,0	2900,0
