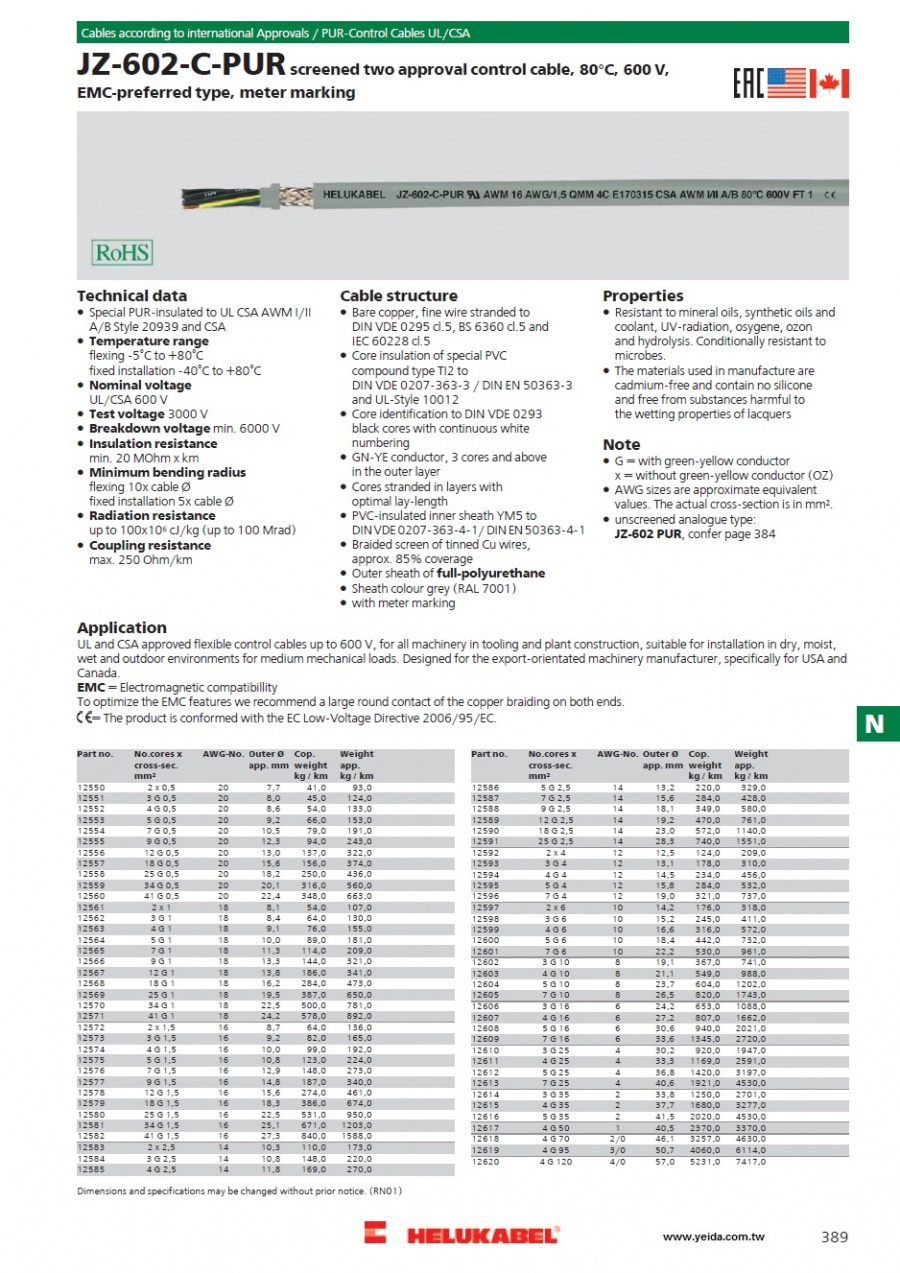

JZ-602-C-PUR / OZ-602-C-PUR

screened two approval control cable,80°C, 600V, EMC-preferred type, meter marking

★★★★商品說明★★★★

Technical data

Special PUR-insulated to UL CSA AWM I/II
A/B Style 20939 and CSA
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
UL/CSA 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)
Coupling resistance
max. 250 Ohm/km

Cable structure

Bare copper, fine wire stranded to
DIN VDE 0295 cl.5, BS 6360 cl.5 and
IEC 60228 cl.5
Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3
and UL-Style 10012
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-length
PVC-insulated inner sheath YM5 to
DIN VDE 0207-363-4-1/ DIN EN 50363-4-1
Braided screen of tinned Cu wires,
approx. 85% coverage
Outer sheath of full-polyurethane
Sheath colour grey (RAL 7001)
with meter marking

Properties

Resistant to mineral oils, synthetic oils and
coolant, UV-radiation, osygene, ozon
and hydrolysis. Conditionally resistant to
microbes.
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
unscreened analogue type:
JZ-602 PUR

Application

UL and CSA approved flexible control cables up to 600 V, for all machinery in tooling and plant construction, suitable for installation in dry, moist, wet and outdoor environments for medium mechanical loads. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
12550	2 x 0,5	20	7,7	41,0	93,0
12551	3 G 0,5	20	8,0	45,0	124,0
12552	4 G 0,5	20	8,6	54,0	133,0
12553	5 G 0,5	20	9,2	66,0	153,0
12554	7 G 0,5	20	10,5	79,0	191,0
12555	9 G 0,5	20	12,3	94,0	243,0
12556	12 G 0,5	20	13,0	137,0	322,0
12557	18 G 0,5	20	15,6	156,0	374,0
12558	25 G 0,5	20	18,2	250,0	436,0
12559	34 G 0,5	20	20,1	316,0	560,0
12560	41 G 0,5	20	22,4	348,0	663,0
12561	2 x 1	18	8,1	54,0	107,0
12562	3 G 1	18	8,4	64,0	130,0
12563	4 G 1	18	9,1	76,0	155,0
12564	5 G 1	18	10,0	89,0	181,0
12565	7 G 1	18	11,3	114,0	209,0
12566	9 G 1	18	13,3	144,0	321,0
12567	12 G 1	18	13,8	186,0	341,0
12568	18 G 1	18	16,2	284,0	473,0
12569	25 G 1	18	19,5	387,0	650,0
12570	34 G 1	18	22,5	500,0	781,0
12571	41 G 1	18	24,2	578,0	892,0
12572	2 x 1,5	16	8,7	64,0	136,0
12573	3 G 1,5	16	9,2	82,0	165,0
12574	4 G 1,5	16	10,0	99,0	192,0
12575	5 G 1,5	16	10,8	123,0	224,0
12576	7 G 1,5	16	12,9	148,0	273,0
12577	9 G 1,5	16	14,8	187,0	340,0
12578	12 G 1,5	16	15,6	274,0	461,0
12579	18 G 1,5	16	18,3	386,0	674,0
12580	25 G 1,5	16	22,5	531,0	950,0
12581	34 G 1,5	16	25,1	671,0	1203,0
12582	41 G 1,5	16	27,3	840,0	1588,0
12583	2 x 2,5	14	10,3	110,0	173,0
12584	3 G 2,5	14	10,8	148,0	220,0
12585	4 G 2,5	14	11,8	169,0	270,0
12586	5 G 2,5	14	13,2	220,0	329,0
12587	7 G 2,5	14	15,6	284,0	428,0
12588	9 G 2,5	14	18,1	349,0	580,0
12589	12 G 2,5	14	19,2	470,0	761,0
12590	18 G 2,5	14	23,0	572,0	1140,0
12591	25 G 2,5	14	28,3	740,0	1551,0
12592	2 x 4	12	12,5	124,0	209,0
12593	3 G 4	12	13,1	178,0	310,0
12594	4 G 4	12	14,5	234,0	456,0
12595	5 G 4	12	15,8	284,0	532,0
12596	7 G 4	12	19,0	321,0	737,0
12597	2 x 6	10	14,2	176,0	318,0
12598	3 G 6	10	15,2	245,0	411,0
12599	4 G 6	10	16,6	316,0	572,0
12600	5 G 6	10	18,4	442,0	732,0
12601	7 G 6	10	22,2	530,0	961,0
12602	3 G 10	8	19,1	367,0	741,0
12603	4 G 10	8	21,1	549,0	988,0
12604	5 G 10	8	23,7	604,0	1202,0
12605	7 G 10	8	26,5	820,0	1743,0
12606	3 G 16	6	24,2	653,0	1088,0
12607	4 G 16	6	27,2	807,0	1662,0
12608	5 G 16	6	30,6	940,0	2021,0
12609	7 G 16	6	33,6	1345,0	2720,0
12610	3 G 25	4	30,2	920,0	1947,0
12611	4 G 25	4	33,3	1169,0	2591,0
12612	5 G 25	4	36,8	1420,0	3197,0
12613	7 G 25	4	40,6	1921,0	4530,0
12614	3 G 35	2	33,8	1250,0	2701,0
12615	4 G 35	2	37,7	1680,0	3277,0
12616	5 G 35	2	41,5	2020,0	4530,0
12617	4 G 50	1	40,5	2370,0	3370,0
12618	4 G 70	2/0	46,1	3257,0	4630,0
12619	4 G 95	3/0	50,7	4060,0	6114,0
12620	4 G 120	4/0	57,0	5231,0	7417,0
