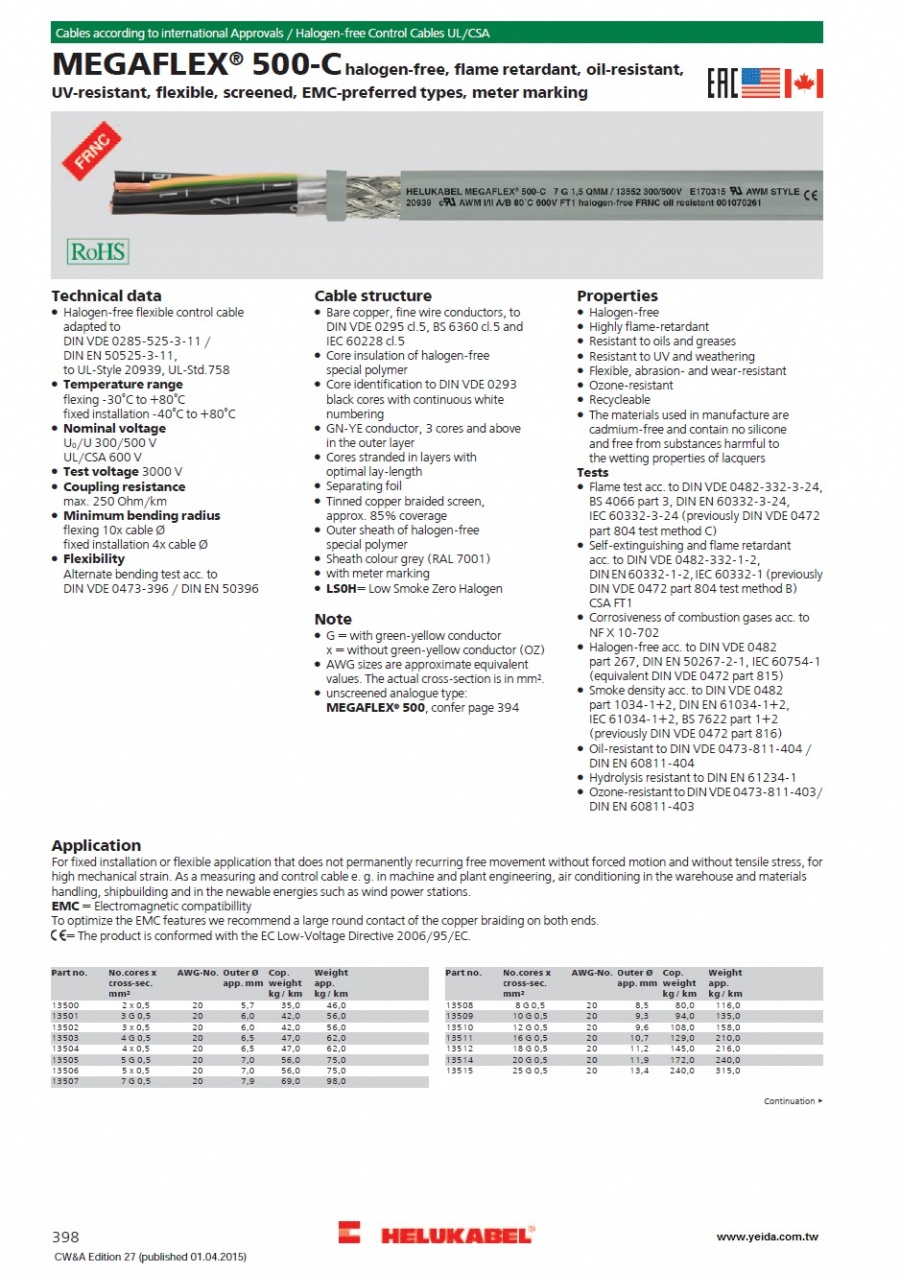

MEGAFLEX® 500-C

halogen-free, flame retardant, oil-resistant, UV-resistant, flexible, screened, meter marking, EMV-preferred type

★★★★商品說明★★★★

Technical data

Halogen-free flexible control cable
adapted to
DIN VDE 0285-525-3-11 /
DIN EN 50525-3-11,
to UL-Style 20939, UL-Std.758
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
U₀/U 300/500 V
UL/CSA 600 V
Test voltage 3000 V
Coupling resistance
max. 250 Ohm/km
Minimum bending radius
flexing 10x cable Ø
fixed installation 4x cable Ø
Flexibility
Alternate bending test acc. to
DIN VDE 0473-396 / DIN EN 50396

Cable structure

Bare copper, fine wire conductors, to
DIN VDE 0295 cl.5, BS 6360 cl.5 and
IEC 60228 cl.5
Core insulation of halogen-free
special polymer
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-length
Separating foil
Tinned copper braided screen,
approx. 85% coverage
Outer sheath of halogen-free
special polymer
Sheath colour grey (RAL 7001)
with meter marking
LS0H= Low Smoke Zero Halogen

Properties

Halogen-free
Highly flame-retardant
Resistant to oils and greases
Resistant to UV and weathering
Flexible, abrasion- and wear-resistant
Ozone-resistant
Recycleable
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

Flame test acc. to DIN VDE 0482-332-3-24,
BS 4066 part 3, DIN EN 60332-3-24,
IEC 60332-3-24 (previously DIN VDE 0472
part 804 test method C)
Self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1 (previously
DIN VDE 0472 part 804 test method B)
CSA FT1
Corrosiveness of combustion gases acc. to
NF X 10-702
Halogen-free acc. to DIN VDE 0482
part 267, DIN EN 50267-2-1, IEC 60754-1
(equivalent DIN VDE 0472 part 815)
Smoke density acc. to DIN VDE 0482
part 1034-1+2, DIN EN 61034-1+2,
IEC 61034-1+2, BS 7622 part 1+2
(previously DIN VDE 0472 part 816)
Oil-resistant to DIN VDE 0473-811-404 /
DIN EN 60811-404
Hydrolysis resistant to DIN EN 61234-1
Ozone-resistant to DIN VDE 0473-811-403/
DIN EN 60811-403

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
unscreened analogue type:
MEGAFLEX^® 500

Application

For fixed installation or flexible application that does not permanently recurring free movement without forced motion and without tensile stress, for high mechanical strain. As a measuring and control cable e. g. in machine and plant engineering, air conditioning in the warehouse and materials handling, shipbuilding and in the newable energies such as wind power stations.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
