MEGAFLEX® 600-C halogen-free, flame retardant, oil-resistant, UV-resistant, flexible, meter marking

30169481

商品編號: HELUKABEL-MEGAFLEX-600-C

MEGAFLEX® 600-C halogen-free, flame retardant, oil-resistant, UV-resistant, flexible, meter marking

★★★★商品說明★★★★

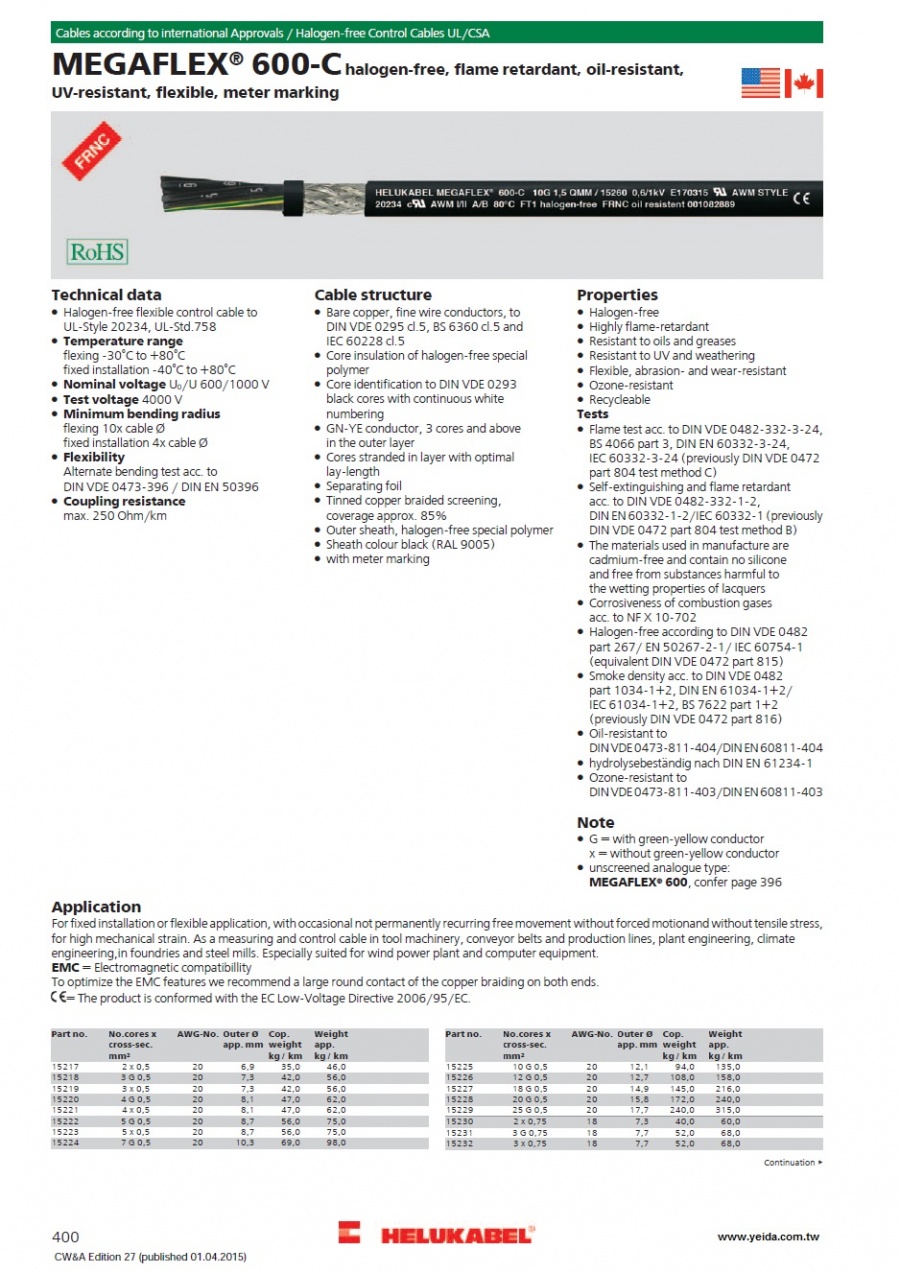

Technical data

Halogen-free flexible control cable to
UL-Style 20234, UL-Std.758
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage U₀/U 600/1000 V
Test voltage 4000 V
Minimum bending radius
flexing 10x cable Ø
fixed installation 4x cable Ø
Flexibility
Alternate bending test acc. to
DIN VDE 0473-396 / DIN EN 50396
Coupling resistance
max. 250 Ohm/km

Cable structure

Bare copper, fine wire conductors, to
DIN VDE 0295 cl.5, BS 6360 cl.5 and
IEC 60228 cl.5
Core insulation of halogen-free special
polymer
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layer with optimal
lay-length
Separating foil
Tinned copper braided screening,
coverage approx. 85%
Outer sheath, halogen-free special polymer
Sheath colour black (RAL 9005)
with meter marking

Properties

Halogen-free
Highly flame-retardant
Resistant to oils and greases
Resistant to UV and weathering
Flexible, abrasion- and wear-resistant
Ozone-resistant
Recycleable

Tests

Flame test acc. to DIN VDE 0482-332-3-24,
BS 4066 part 3, DIN EN 60332-3-24,
IEC 60332-3-24 (previously DIN VDE 0472
part 804 test method C)
Self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2/IEC 60332-1 (previously
DIN VDE 0472 part 804 test method B)
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
Corrosiveness of combustion gases
acc. to NF X 10-702
Halogen-free according to DIN VDE 0482
part 267/ EN 50267-2-1/ IEC 60754-1
(equivalent DIN VDE 0472 part 815)
Smoke density acc. to DIN VDE 0482
part 1034-1+2, DIN EN 61034-1+2/
IEC 61034-1+2, BS 7622 part 1+2
(previously DIN VDE 0472 part 816)
Oil-resistant to
DIN VDE 0473-811-404/DIN EN 60811-404
hydrolysebeständig nach DIN EN 61234-1
Ozone-resistant to
DIN VDE 0473-811-403/DIN EN 60811-403

Note

G = with green-yellow conductor
x = without green-yellow conductor
unscreened analogue type:
MEGAFLEX^® 600

Application

For fixed installation or flexible application, with occasional not permanently recurring free movement without forced motionand without tensile stress, for high mechanical strain. As a measuring and control cable in tool machinery, conveyor belts and production lines, plant engineering, climate engineering,in foundries and steel mills. Especially suited for wind power plant and computer equipment.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
15217	2 x 0,5	20	6,9	35,0	46,0
15218	3 G 0,5	20	7,3	42,0	56,0
15219	3 x 0,5	20	7,3	42,0	56,0
15220	4 G 0,5	20	8,1	47,0	62,0
15221	4 x 0,5	20	8,1	47,0	62,0
15222	5 G 0,5	20	8,7	56,0	75,0
15223	5 x 0,5	20	8,7	56,0	75,0
15224	7 G 0,5	20	10,3	69,0	98,0
15225	10 G 0,5	20	12,1	94,0	135,0
15226	12 G 0,5	20	12,7	108,0	158,0
15227	18 G 0,5	20	14,9	145,0	216,0
15228	20 G 0,5	20	15,8	172,0	240,0
15229	25 G 0,5	20	17,7	240,0	315,0
15230	2 x 0,75	18	7,3	40,0	60,0
15231	3 G 0,75	18	7,7	52,0	68,0
15232	3 x 0,75	18	7,7	52,0	68,0
15233	4 G 0,75	18	8,5	60,0	78,0
15234	4 x 0,75	18	8,5	60,0	78,0
15235	5 G 0,75	18	9,3	71,0	95,0
15236	5 x 0,75	18	9,3	71,0	95,0
15237	7 G 0,75	18	10,7	91,0	130,0
15238	7 x 0,75	18	10,7	91,0	130,0
15239	12 G 0,75	18	13,1	142,0	203,0
15240	18 G 0,75	18	16,2	212,0	290,0
15241	20 G 0,75	18	17,2	238,0	320,0
15242	25 G 0,75	18	19,5	281,0	413,0
15243	2 x 1	17	8,0	50,0	66,0
15244	3 G 1	17	8,6	60,0	80,0
15245	3 x 1	17	8,6	60,0	80,0
15246	4 G 1	17	9,4	71,0	100,0
15247	4 G 1	17	9,4	71,0	100,0
15248	5 G 1	17	10,4	88,0	130,0
15249	10 G 1	17	14,9	150,0	232,0
15250	12 G 1	17	14,5	184,0	260,0
15251	18 G 1	17	17,9	260,0	382,0
15252	20 G 1	17	19,0	317,0	440,0
15253	25 G 1	17	21,7	349,0	540,0
15254	2 x 1,5	16	9,0	63,0	88,0
15255	3 G 1,5	16	9,7	80,0	100,0
15256	3 x 1,5	16	9,7	80,0	100,0
15257	4 G 1,5	16	10,5	97,0	125,0
15258	5 G 1,5	16	11,6	119,0	158,0
15259	7 G 1,5	16	13,9	147,0	210,0
15260	10 G 1,5	16	16,7	193,0	315,0
15261	12 G 1,5	16	17,2	267,0	340,0
15262	18 G 1,5	16	20,5	374,0	480,0
15263	20 G 1,5	16	21,7	396,0	545,0
15264	25 G 1,5	16	24,7	526,0	702,0
15265	2 x 2,5	14	10,2	96,0	132,0
15266	3 G 2,5	14	10,7	144,0	168,0
15267	4 G 2,5	14	11,9	148,0	195,0
15268	5 x 2,5	14	13,2	181,0	256,0
15269	7 G 2,5	14	15,8	255,0	345,0
15270	10 G 2,5	14	17,0	340,0	482,0
15271	12 G 2,5	14	19,2	441,0	572,0
15272	3 G 4	12	13,1	174,0	251,0
15273	4 G 4	12	14,6	230,0	305,0
15274	5 G 4	12	16,1	273,0	388,0
15275	7 G 4	12	17,6	316,0	504,0
15276	3 G 6	10	14,9	240,0	351,0
15277	4 G 6	10	16,4	305,0	464,0
15278	5 G 6	10	18,1	439,0	546,0
15279	7 G 6	10	20,1	505,0	670,0
15280	3 G 10	8	16,6	350,0	574,0
15281	4 G 10	8	18,1	535,0	785,0
15282	5 G 10	8	20,6	592,0	914,0
15283	7 G 10	8	22,6	810,0	1308,0
