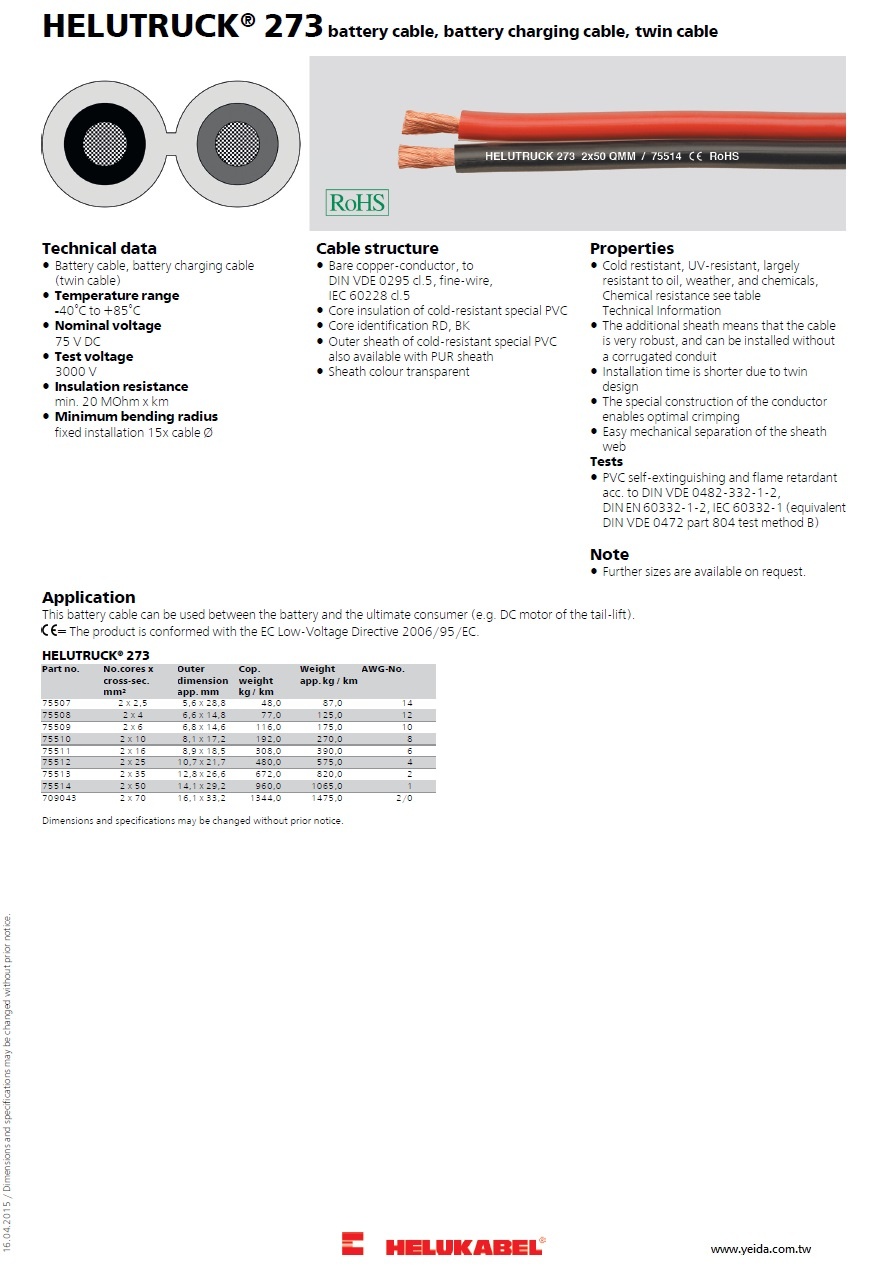

• Battery cable, battery charging cable
  (twin cable)

• Temperature range
  -40°C to +85°C
• Nominal voltage
  75 V DC
• Test voltage
  3000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  fixed installation 15x cable Ø

• Bare copper-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  IEC 60228 cl.5
• Core insulation of cold-resistant special PVC
• Core identification RD, BK
• Outer sheath of cold-resistant special PVC
  also available with PUR sheath
• Sheath colour transparent

• Cold restistant, UV-resistant, largely
  resistant to oil, weather, and chemicals,
  Chemical resistance see table
  Technical Information
• The additional sheath means that the cable
  is very robust, and can be installed without
  a corrugated conduit
• Installation time is shorter due to twin
  design
• The special construction of the conductor
  enables optimal crimping
• Easy mechanical separation of the sheath
  web

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

• Further sizes are available on request.
