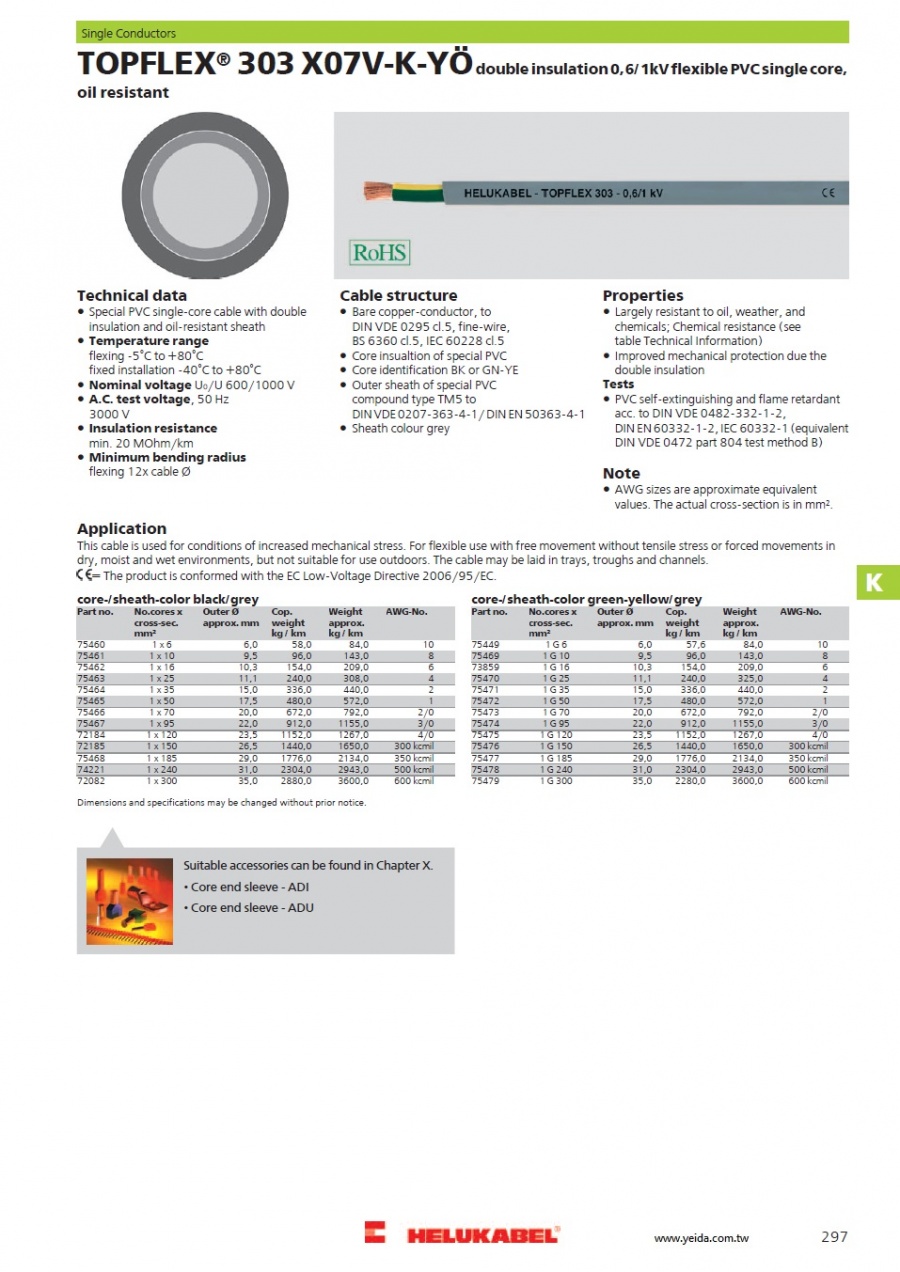

TOPFLEX® 303 X07V-K-YÖ double insulation 0,6/1kV flexible PVC single core, oil resistant 電子線

30173153

商品編號: HELUKABEL-TOPFLEX-303

TOPFLEX® 303 X07V-K-YÖ double insulation 0,6/1kV flexible PVC single core, oil resistant 電子線

TOPFLEX® 303 X07V-K-YÖ double insulation 0,6/1kV flexible PVC single core, oil resistant

★★★★商品說明★★★★

TOPFLEX® 303 X07V-K-YÖ (core-/sheath-colour green-yellow/grey)

double insulation 0,6/1kV flexible PVC single core, oil resistant

Technical data

Special PVC single-core cable with double
insulation and oil-resistant sheath
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage U₀/U 600/1000 V
A.C. test voltage, 50 Hz
3000 V
Insulation resistance
min. 20 MOhm/km
Minimum bending radius
flexing 12x cable Ø

Cable structure

Bare copper-conductor, to
DIN VDE 0295 cl.5, fine-wire,
BS 6360 cl.5, IEC 60228 cl.5
Core insualtion of special PVC
Core identification BK or GN-YE
Outer sheath of special PVC
compound type TM5 to
DIN VDE 0207-363-4-1/ DIN EN 50363-4-1
Sheath colour grey

Properties

Largely resistant to oil, weather, and
chemicals; Chemical resistance (see
table Technical Information)
Improved mechanical protection due the
double insulation

Tests

PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)

Note

AWG sizes are approximate equivalent
values. The actual cross-section is in mm².

Application

This cable is used for conditions of increased mechanical stress. For flexible use with free movement without tensile stress or forced movements in dry, moist and wet environments, but not suitable for use outdoors. The cable may be laid in trays, troughs and channels.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

這種電纜用於增加機械應力的條件下。對於自由運動靈活使用，無需拉應力或強迫動作在乾燥，潮濕，潮濕的環境中，但不適合戶外使用。電纜可敷設在托盤，槽和渠道。

★★★★商品規格描述★★★★

TOPFLEX® 303 X07V-K-YÖ (core-/sheath-colour black/grey)

Part No.	No.cores x cross-sec. mm²	Colour	Outer ø ca. mm	Cop. weight kg / km	Weight ca. kg / km	AWG-No.
75460	1 x 6	grau RAL 7001	8,5	58,0	94,0	10
75461	1 x 10	grau RAL 7001	9,5	96,0	143,0	8
75462	1 x 16	grau RAL 7001	11,5	154,0	209,0	6
75463	1 x 25	grau RAL 7001	14,0	240,0	308,0	4
75464	1 x 35	grau RAL 7001	15,0	336,0	440,0	2
75465	1 x 50	grau RAL 7001	17,5	480,0	572,0	1
75466	1 x 70	grau RAL 7001	20,0	672,0	792,0	2/0
75467	1 x 95	grau RAL 7001	22,0	912,0	1155,0	3/0
72184	1 x 120	grau RAL 7001	23,5	1152,0	1267,0	4/0
72185	1 x 150	grau RAL 7001	26,5	1440,0	1650,0	300 kcmil
75468	1 x 185	grau RAL 7001	29,0	1776,0	2134,0	350 kcmil
74221	1 x 240	grau RAL 7001	31,0	2304,0	2943,0	500 kcmil
72082	1 x 300	grau RAL 7001	35,0	2880,0	3600,0	600 kcmil

TOPFLEX® 303 X07V-K-YÖ (core-/sheath-colour green-yellow/grey)

Part No.	No.cores x cross-sec. mm²	Colour	Outer ø ca. mm	Cop. weight kg / km	Weight ca. kg / km	AWG-No.
75449	1 G 6	grau RAL 7001	8,5	57,6	94,0	10
75469	1 G 10	grau RAL 7001	9,5	96,0	143,0	8
73859	1 G 16	grau RAL 7001	11,5	154,0	209,0	6
75470	1 G 25	grau RAL 7001	14,0	240,0	308,0	4
75471	1 G 35	grau RAL 7001	15,0	336,0	440,0	2
75472	1 G 50	grau RAL 7001	17,5	480,0	572,0	1
75473	1 G 70	grau RAL 7001	20,0	672,0	792,0	2/0
75474	1 G 95	grau RAL 7001	22,0	912,0	1155,0	3/0
75475	1 G 120	grau RAL 7001	23,5	1152,0	1267,0	4/0
75476	1 G 150	grau RAL 7001	26,5	1440,0	1650,0	300 kcmil
75477	1 G 185	grau RAL 7001	29,0	1776,0	2134,0	350 kcmil
75478	1 G 240	grau RAL 7001	31,0	2304,0	2943,0	500 kcmil
75479	1 G 300	grau RAL 7001	35,0	2280,0	3600,0	600 kcmil
