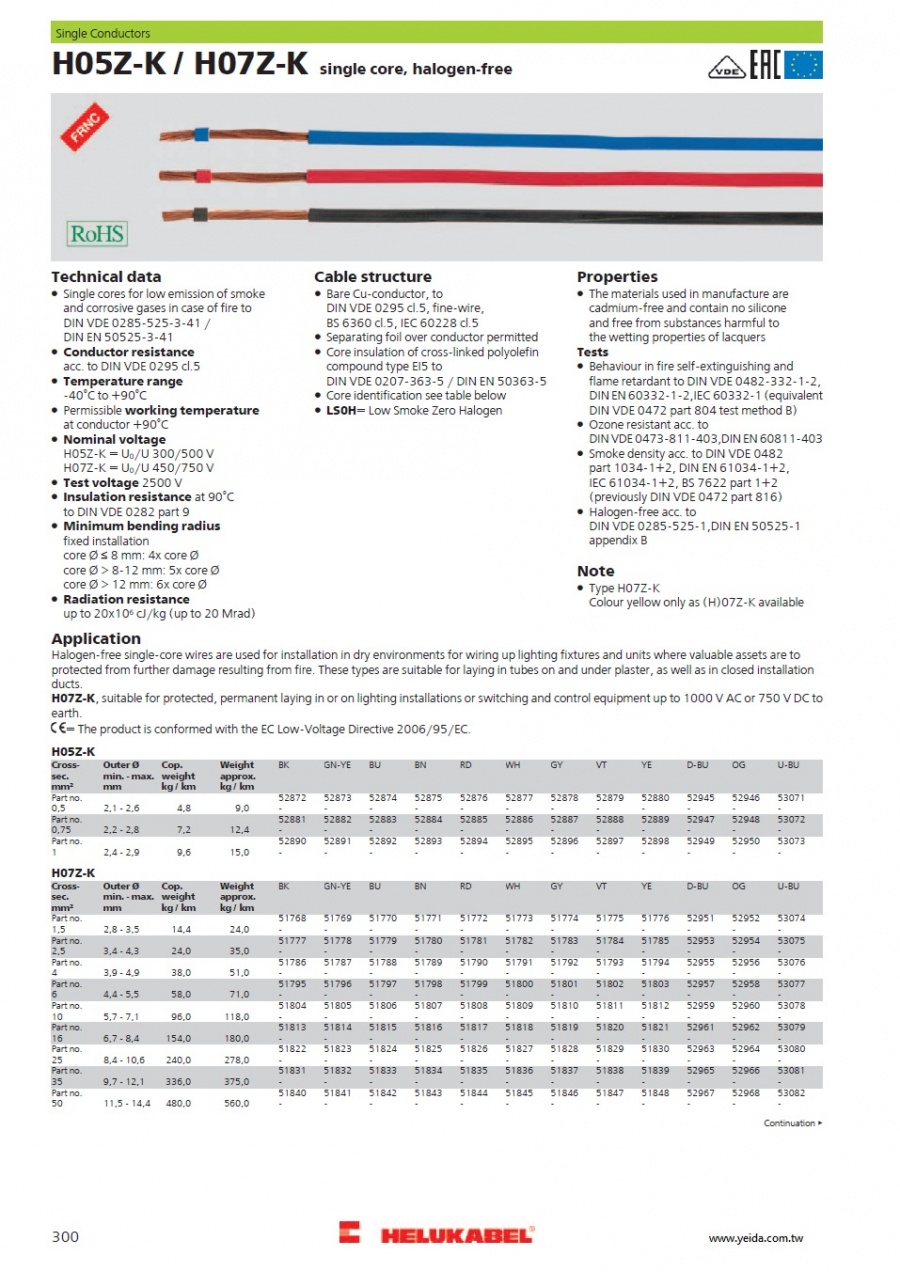

• Single cores for low emission of smoke
  and corrosive gases in case of fire to
  DIN VDE 0285-525-3-41 /
  DIN EN 50525-3-41
• Conductor resistance
  acc. to DIN VDE 0295 cl.5
• Temperature range
  -40°C to +90°C
• Permissible working temperature
  at conductor +90°C
• Nominal voltage
  H05Z-K = U₀/U 300/500 V
  H07Z-K = U₀/U 450/750 V
• Test voltage 2500 V
• Insulation resistance at 90°C
  to DIN VDE 0282 part 9

• Minimum bending radius
  fixed installation
  core Ø ≤ 8 mm: 4x core Ø
  core Ø > 8-12 mm: 5x core Ø
  core Ø > 12 mm: 6x core Ø
• Radiation resistance
  up to 20x10⁶ cJ/kg (up to 20 Mrad)

• Bare Cu-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Separating foil over conductor permitted
• Core insulation of cross-linked polyolefin
  compound type EI5 to
  DIN VDE 0207-363-5 / DIN EN 50363-5
• Core identification see table below
• LS0H= Low Smoke Zero Halogen

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• Behaviour in fire self-extinguishing and
  flame retardant to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2,IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Ozone resistant acc. to
  DIN VDE 0473-811-403,DIN EN 60811-403
• Smoke density acc. to DIN VDE 0482
  part 1034-1+2, DIN EN 61034-1+2,
  IEC 61034-1+2, BS 7622 part 1+2
  (previously DIN VDE 0472 part 816)
• Halogen-free acc. to
  DIN VDE 0285-525-1,DIN EN 50525-1
  appendix B

• Type H07Z-K
  Colour yellow only as (H)07Z-K available
