HELUTHERM® 600 / 600-ES halogen-free -60°C to +600°C 耐高溫線

30174484

商品編號: HELUTHERM-600

HELUTHERM® 600 / 600-ES halogen-free -60°C to +600°C 耐高溫線

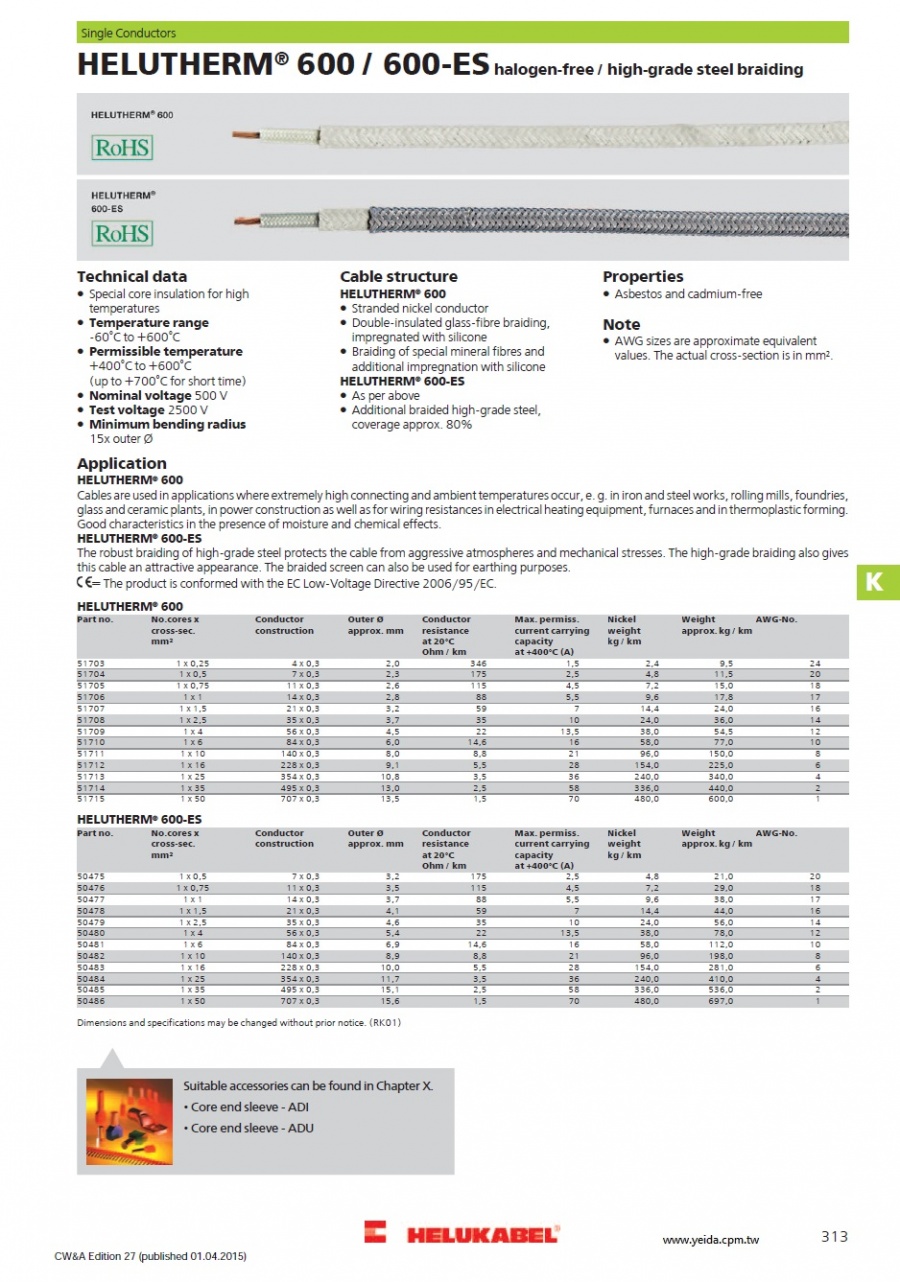

HELUTHERM® 600 / 600-ES halogen-free / high-grade steel braiding-60°C to +600°C

★★★★商品說明★★★★

Technical data

Special core insulation for high
temperatures
Temperature range
-60°C to +600°C
Permissible temperature
+400°C to +600°C
(up to +700°C for short time)
Nominal voltage 500 V
Test voltage 2500 V
Minimum bending radius
15x outer Ø

Cable structure

HELUTHERM^® 600

Stranded nickel conductor
Double-insulated glass-fibre braiding,
impregnated with silicone
Braiding of special mineral fibres and
additional impregnation with silicone

HELUTHERM^® 600-ES

As per above
Additional braided high-grade steel,
coverage approx. 80%

Properties

Asbestos and cadmium-free

Note

AWG sizes are approximate equivalent
values. The actual cross-section is in mm².

Application

HELUTHERM® 600
Cables are used in applications where extremely high connecting and ambient temperatures occur, e. g. in iron and steel works, rolling mills, foundries, glass and ceramic plants, in power construction as well as for wiring resistances in electrical heating equipment, furnaces and in thermoplastic forming. Good characteristics in the presence of moisture and chemical effects.
HELUTHERM® 600-ES
The robust braiding of high-grade steel protects the cable from aggressive atmospheres and mechanical stresses. The high-grade braiding also gives this cable an attractive appearance. The braided screen can also be used for earthing purposes.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

HELUTHERM®600
電纜被用在非常高的連接和環境溫度發生，權證的申請。 G。在鋼鐵廠，軋鋼廠，鑄造廠，玻璃和陶瓷工廠，電力建設，以及在電加熱設備，熔爐佈線電阻，熱塑性成型。良好的特性在水分和化學效應的存在。
HELUTHERM®600-ES
高鋼級堅固的編織免受腐蝕性環境和機械應力電纜。高檔編織也可以使纜線吸引人的外觀。編織屏也可用於接地目的。
CE=該產品符合與歐盟低電壓指令2006/95 / EC。

★★★★商品規格描述★★★★

HELUTHERM® 600-ES

Part no.	No.cores x cross-sec. mm²	Conductor construction	Outer Ø approx. mm	Conductor resistance at 20°C Ohm / km	Max. permiss. current carrying capacity at +400°C (A)	Nickel weight kg / km	Weight approx. kg / km	AWG-No.
50475	1 x 0,5	7 x 0,3	3,2	175	2,5	4,8	21,0	20
50476	1 x 0,75	11 x 0,3	3,5	115	4,5	7,2	29,0	18
50477	1 x 1	14 x 0,3	3,7	88	5,5	9,6	38,0	17
50478	1 x 1,5	21 x 0,3	4,1	59	7	14,4	44,0	16
50479	1 x 2,5	35 x 0,3	4,6	35	10	24,0	56,0	14
50480	1 x 4	56 x 0,3	5,4	22	13,5	38,0	78,0	12
50481	1 x 6	84 x 0,3	6,9	14,6	16	58,0	112,0	10
50482	1 x 10	140 x 0,3	8,9	8,8	21	96,0	198,0	8
50483	1 x 16	228 x 0,3	10,0	5,5	28	154,0	281,0	6
50484	1 x 25	354 x 0,3	11,7	3,5	36	240,0	410,0	4
50485	1 x 35	495 x 0,3	15,1	2,5	58	336,0	536,0	2
50486	1 x 50	707 x 0,3	15,6	1,5	70	480,0	697,0	1

HELUTHERM® 600

Part no.	No.cores x cross-sec. mm²	Conductor construction	Outer Ø approx. mm	Conductor resistance at 20°C Ohm / km	Max. permiss. current carrying capacity at +400°C (A)	Nickel weight kg / km	Weight approx. kg / km	AWG-No.
51703	1 x 0,25	4 x 0,3	2,0	346	1,5	2,4	9,5	24
51704	1 x 0,5	7 x 0,3	2,3	175	2,5	4,8	11,5	20
51705	1 x 0,75	11 x 0,3	2,6	115	4,5	7,2	15,0	18
51706	1 x 1	14 x 0,3	2,8	88	5,5	9,6	17,8	17
51707	1 x 1,5	21 x 0,3	3,2	59	7	14,4	24,0	16
51708	1 x 2,5	35 x 0,3	3,7	35	10	24,0	36,0	14
51709	1 x 4	56 x 0,3	4,5	22	13,5	38,0	54,5	12
51710	1 x 6	84 x 0,3	6,0	14,6	16	58,0	77,0	10
51711	1 x 10	140 x 0,3	8,0	8,8	21	96,0	150,0	8
51712	1 x 16	228 x 0,3	9,1	5,5	28	154,0	225,0	6
51713	1 x 25	354 x 0,3	10,8	3,5	36	240,0	340,0	4
51714	1 x 35	495 x 0,3	13,0	2,5	58	336,0	440,0	2
51715	1 x 50	707 x 0,3	13,5	1,5	70	480,0	600,0	1
