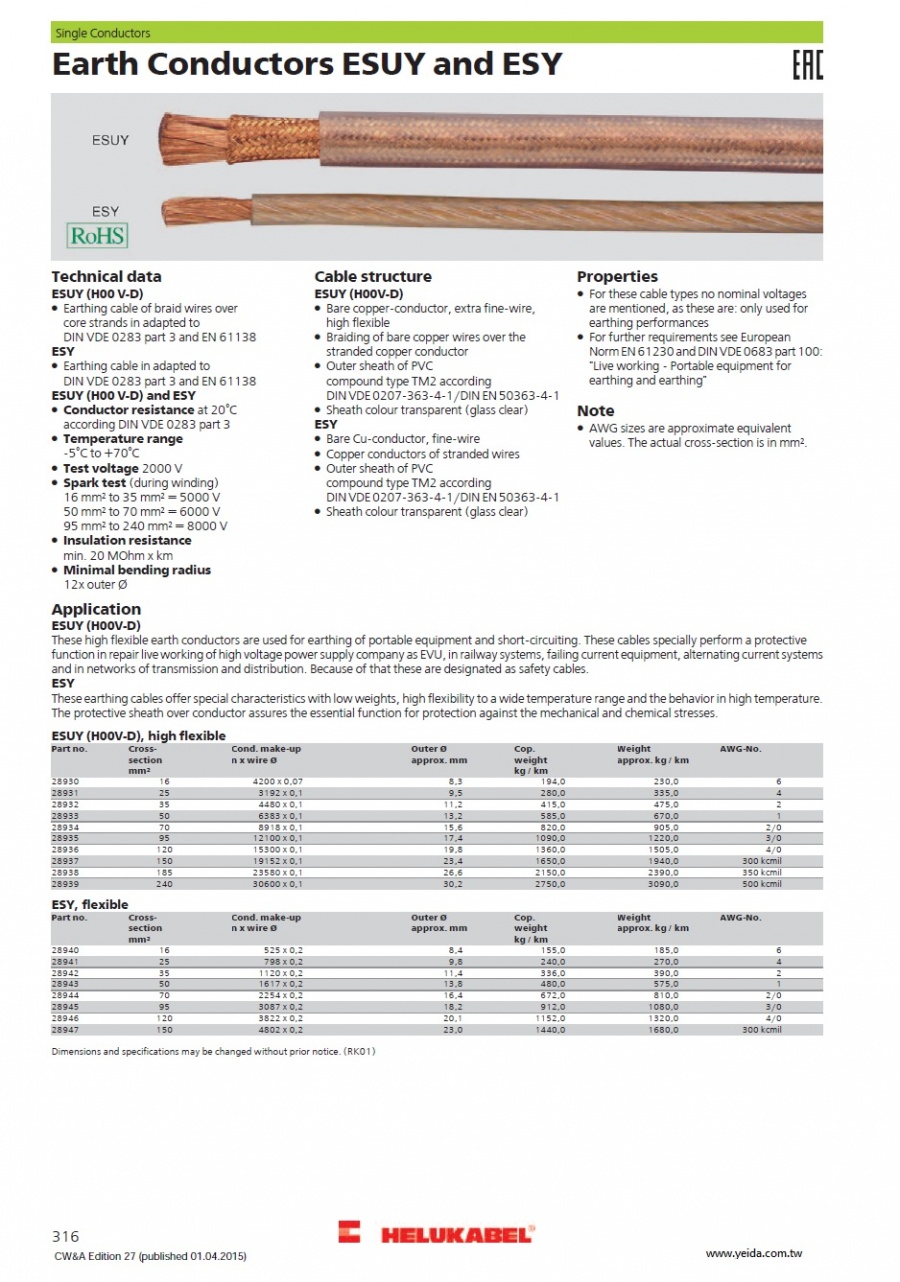

Earthing cable of braid wires over core strands in adapted to DIN VDE 0283 part 3 and EN 61138
ESY
Earthing cable in adapted to DIN VDE 0283 part 3 and EN 61138
ESUY (H00 V-D) andESY
Conductor resistance at 20°C according DIN VDE 0283 part 3
Temperature range -5°C to +70°C
Test voltage 2000 V
Spark test (during winding) 16 mm² to 35 mm² = 5000 V 50 mm² to 70 mm² = 6000 V 95 mm² to 240 mm² = 8000 V
Insulation resistance min. 20 MOhm x km
Minimal bending radius 12x outer Ø
Cable structure
ESUY (H00V-D)
Bare copper-conductor, extra fine-wire, high flexible
Braiding of bare copper wires over the stranded copper conductor
Outer sheath of PVC compound type TM2 according DIN VDE 0207-363-4-1/DIN EN 50363-4-1
Sheath colour transparent (glass clear)
ESY
Bare Cu-conductor, fine-wire
Copper conductors of stranded wires
Outer sheath of PVC compound type TM2 according DIN VDE 0207-363-4-1/DIN EN 50363-4-1
Sheath colour transparent (glass clear)
Properties
For these cable types no nominal voltages are mentioned, as these are: only used for earthing performances
For further requirements see European Norm EN 61230 and DIN VDE 0683 part 100: "Live working - Portable equipment for earthing and earthing"
Note
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
ESUY (H00V-D) These high flexible earth conductors are used for earthing of portable equipment and short-circuiting. These cables specially perform a protective function in repair live working of high voltage power supply company as EVU, in railway systems, failing current equipment, alternating current systems and in networks of transmission and distribution. Because of that these are designated as safety cables. ESY These earthing cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature. The protective sheath over conductor assures the essential function for protection against the mechanical and chemical stresses.
