GALVANICABLE high-current cable, high flexible and halogen-free 大電流的電纜，高柔性和無鹵素

30174766

商品編號: HELUKABEL-GALVANICABLE

GALVANICABLE high-current cable, high flexible and halogen-free 大電流的電纜，高柔性和無鹵素

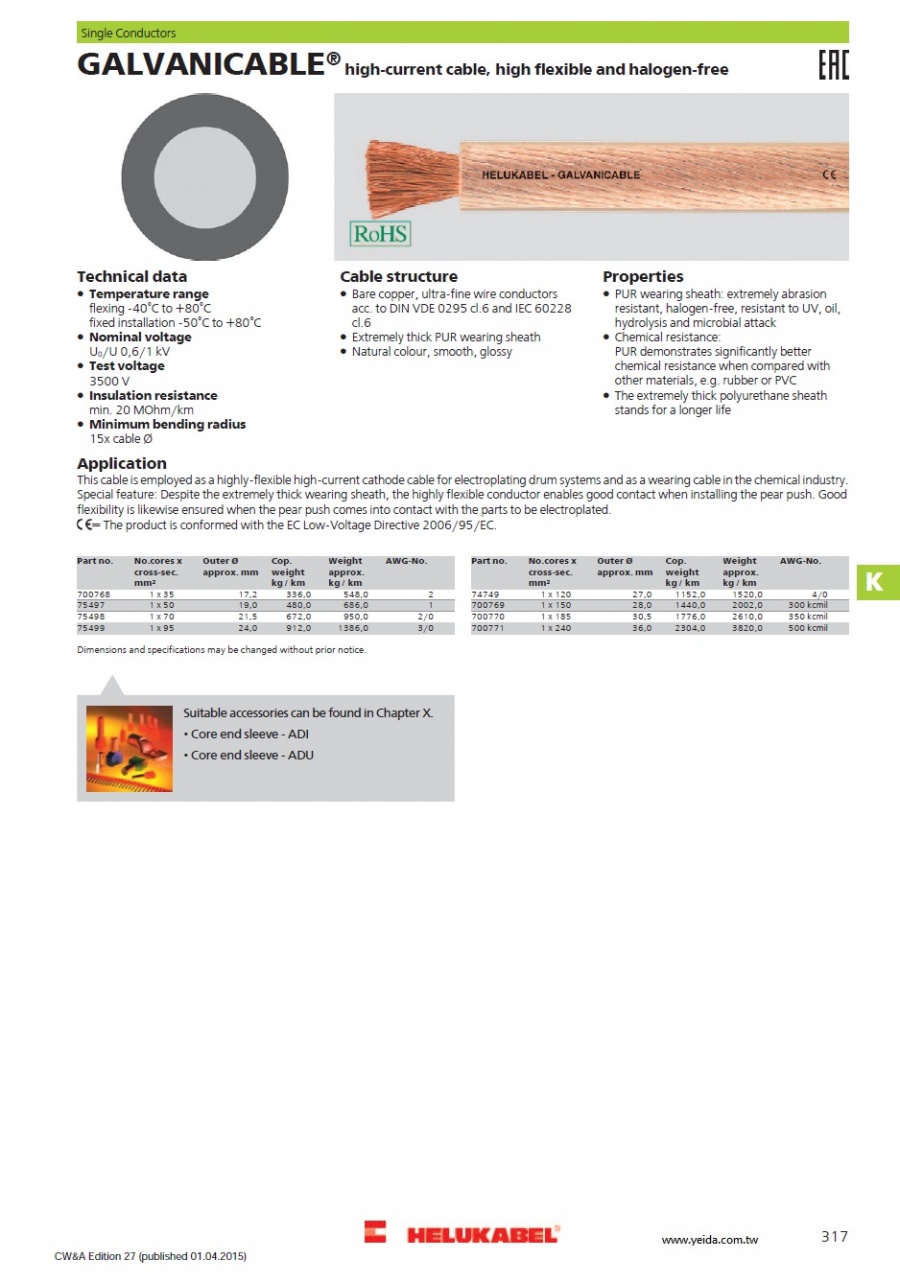

GALVANICABLE® high-current cable, high flexible and halogen-free

★★★★商品說明★★★★

Technical data

Temperature range
flexing -40°C to +80°C
fixed installation -50°C to +80°C
Nominal voltage
U₀/U 0,6/1 kV
Test voltage
3500 V
Insulation resistance
min. 20 MOhm/km
Minimum bending radius
15x cable Ø

Cable structure

Bare copper, ultra-fine wire conductors
acc. to DIN VDE 0295 cl.6 and IEC 60228
cl.6
Extremely thick PUR wearing sheath
Natural colour, smooth, glossy

Properties

PUR wearing sheath: extremely abrasion
resistant, halogen-free, resistant to UV, oil,
hydrolysis and microbial attack
Chemical resistance:
PUR demonstrates significantly better
chemical resistance when compared with
other materials, e.g. rubber or PVC
The extremely thick polyurethane sheath
stands for a longer life

Application

This cable is employed as a highly-flexible high-current cathode cable for electroplating drum systems and as a wearing cable in the chemical industry. Special feature: Despite the extremely thick wearing sheath, the highly flexible conductor enables good contact when installing the pear push. Good flexibility is likewise ensured when the pear push comes into contact with the parts to be electroplated.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	Outer Ø approx. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
700768	1 x 35	17,2	336,0	548,0	2
75497	1 x 50	19,0	480,0	686,0	1
75498	1 x 70	21,5	672,0	950,0	2/0
75499	1 x 95	24,0	912,0	1386,0	3/0
74749	1 x 120	27,0	1152,0	1520,0	4/0
700769	1 x 150	28,0	1440,0	2002,0	300 kcmil
700770	1 x 185	30,5	1776,0	2610,0	350 kcmil
700771	1 x 240	36,0	2304,0	3820,0	500 kcmil
