H01N2-D / -E 100 V, VDE approved, (NSLFFÖU), welding cable 焊接電纜

30174768

商品編號: HELUKABEL-H01N2-D

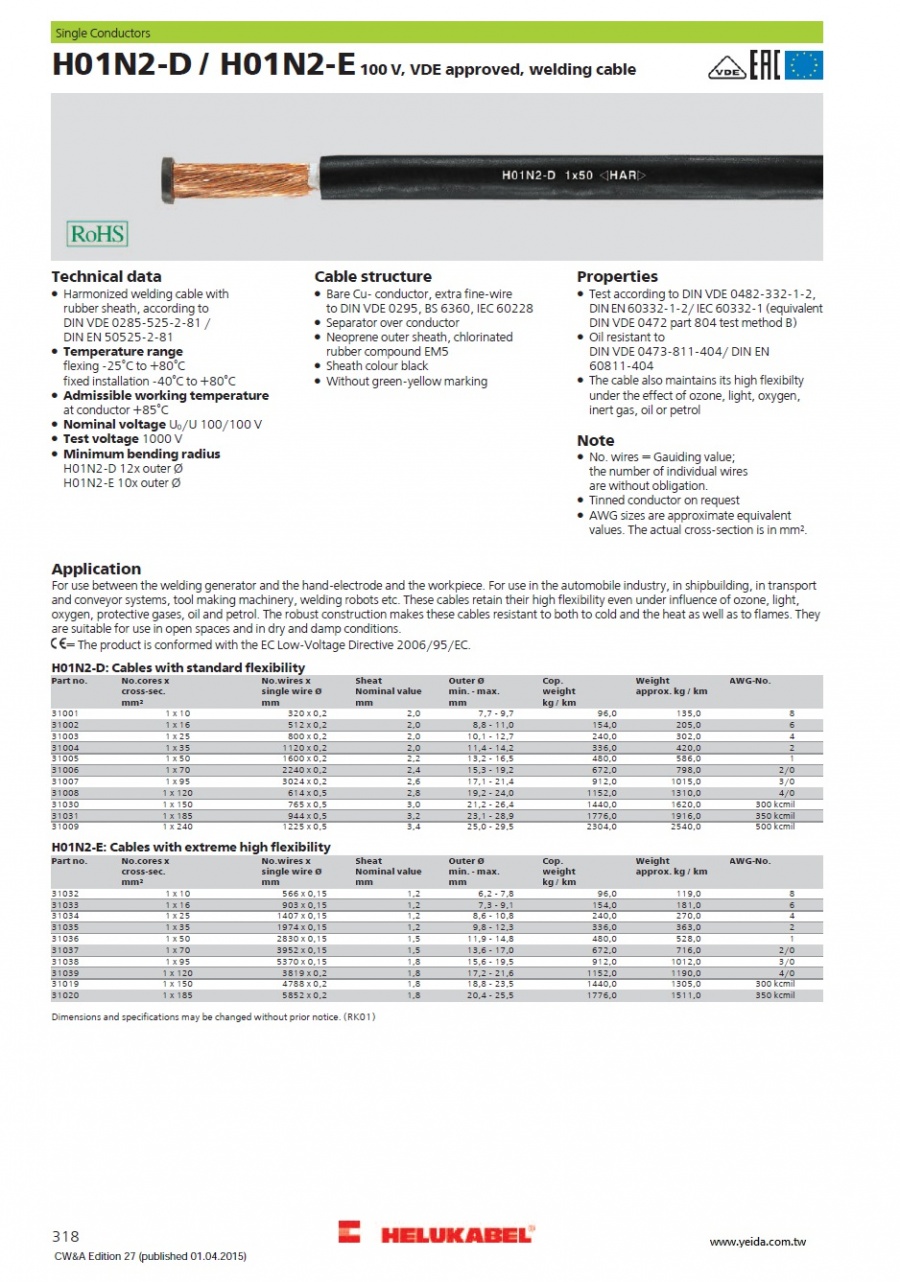

H01N2-D / -E 100 V, VDE approved, (NSLFFÖU), welding cable 焊接電纜

H01N2-D / -E 100 V, VDE approved, (NSLFFÖU), welding cable

★★★★商品說明★★★★

Technical data

Harmonized welding cable with
rubber sheath, according to
DIN VDE 0285-525-2-81 /
DIN EN 50525-2-81
Temperature range
flexing -25°C to +80°C
fixed installation -40°C to +80°C
Admissible working temperature
at conductor +85°C
Nominal voltage U₀/U 100/100 V
Test voltage 1000 V
Minimum bending radius
H01N2-D 12x outer Ø
H01N2-E 10x outer Ø

Cable structure

Bare Cu- conductor, extra fine-wire
to DIN VDE 0295, BS 6360, IEC 60228
Separator over conductor
Neoprene outer sheath, chlorinated
rubber compound EM5
Sheath colour black
Without green-yellow marking

Properties

Test according to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2/ IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
Oil resistant to
DIN VDE 0473-811-404/
DIN EN 60811-404
The cable also maintains its high flexibilty
under the effect of ozone, light, oxygen,
inert gas, oil or petrol

Note

No. wires = Gauiding value;
the number of individual wires
are without obligation.
Tinned conductor on request
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².

Application

For use between the welding generator and the hand-electrode and the workpiece. For use in the automobile industry, in shipbuilding, in transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. The robust construction makes these cables resistant to both to cold and the heat as well as to flames. They are suitable for use in open spaces and in dry and damp conditions.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

H01N2-D: Cables with standard flexibility

Part no.	No.cores x cross-sec. mm²	No.wires x single wire Ø mm	Sheat Nominal value mm	Outer Ø min. - max. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
31001	1 x 10	320 x 0,2	2,0	7,7 - 9,7	96,0	135,0	8
31002	1 x 16	512 x 0,2	2,0	8,8 - 11,0	154,0	205,0	6
31003	1 x 25	800 x 0,2	2,0	10,1 - 12,7	240,0	302,0	4
31004	1 x 35	1120 x 0,2	2,0	11,4 - 14,2	336,0	420,0	2
31005	1 x 50	1600 x 0,2	2,2	13,2 - 16,5	480,0	586,0	1
31006	1 x 70	2240 x 0,2	2,4	15,3 - 19,2	672,0	798,0	2/0
31007	1 x 95	3024 x 0,2	2,6	17,1 - 21,4	912,0	1015,0	3/0
31008	1 x 120	614 x 0,5	2,8	19,2 - 24,0	1152,0	1310,0	4/0
31030	1 x 150	765 x 0,5	3,0	21,2 - 26,4	1440,0	1620,0	300 kcmil
31031	1 x 185	944 x 0,5	3,2	23,1 - 28,9	1776,0	1916,0	350 kcmil
31009	1 x 240	1225 x 0,5	3,4	25,0 - 29,5	2304,0	2540,0	500 kcmil

H01N2-E: Cables with extreme high flexibility

Part no.	No.cores x cross-sec. mm²	No.wires x single wire Ø mm	Sheat Nominal value mm	Outer Ø min. - max. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
31032	1 x 10	566 x 0,15	1,2	6,2 - 7,8	96,0	119,0	8
31033	1 x 16	903 x 0,15	1,2	7,3 - 9,1	154,0	181,0	6
31034	1 x 25	1407 x 0,15	1,2	8,6 - 10,8	240,0	270,0	4
31035	1 x 35	1974 x 0,15	1,2	9,8 - 12,3	336,0	363,0	2
31036	1 x 50	2830 x 0,15	1,5	11,9 - 14,8	480,0	528,0	1
31037	1 x 70	3952 x 0,15	1,5	13,6 - 17,0	672,0	716,0	2/0
31038	1 x 95	5370 x 0,15	1,8	15,6 - 19,5	912,0	1012,0	3/0
31039	1 x 120	3819 x 0,2	1,8	17,2 - 21,6	1152,0	1190,0	4/0
31019	1 x 150	4788 x 0,2	1,8	18,8 - 23,5	1440,0	1305,0	300 kcmil
31020	1 x 185	5852 x 0,2	1,8	20,4 - 25,5	1776,0	1511,0	350 kcmil
