NSGAFÖU 3kV Special Rubber-Insulated Cable, VDE short-circuit up to 1000V 特種橡膠絕緣電纜，VDE認證

30174775

商品編號: HELUKABEL-NSGAFOU-3kV

NSGAFÖU 3kV Special Rubber-Insulated Cable, VDE short-circuit up to 1000V 特種橡膠絕緣電纜，VDE認證

NSGAFÖU 3kV Special Rubber-Insulated Cable, VDE approved, short-circuit up to 1000V

★★★★商品說明★★★★

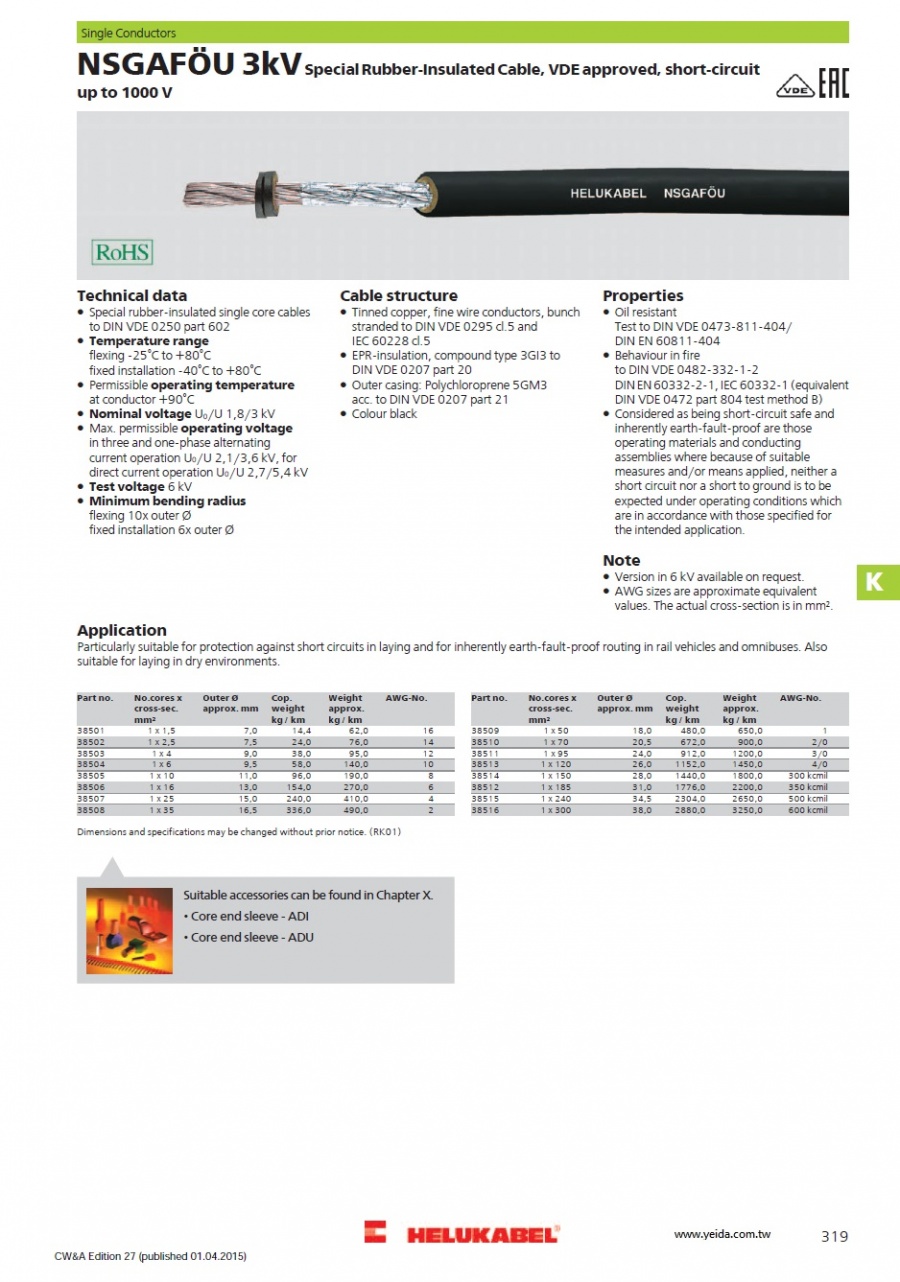

Technical data

Special rubber-insulated single core cables
to DIN VDE 0250 part 602
Temperature range
flexing -25°C to +80°C
fixed installation -40°C to +80°C
Permissible operating temperature
at conductor +90°C
Nominal voltage U₀/U 1,8/3 kV
Max. permissible operating voltage
in three and one-phase alternating
current operation U₀/U 2,1/3,6 kV, for
direct current operation U₀/U 2,7/5,4 kV
Test voltage 6 kV
Minimum bending radius
flexing 10x outer Ø
fixed installation 6x outer Ø

Cable structure

Tinned copper, fine wire conductors, bunch
stranded to DIN VDE 0295 cl.5 and
IEC 60228 cl.5
EPR-insulation, compound type 3GI3 to
DIN VDE 0207 part 20
Outer casing: Polychloroprene 5GM3
acc. to DIN VDE 0207 part 21
Colour black

Properties

Oil resistant
Test to DIN VDE 0473-811-404/
DIN EN 60811-404
Behaviour in fire
to DIN VDE 0482-332-1-2
DIN EN 60332-2-1, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
Considered as being short-circuit safe and
inherently earth-fault-proof are those
operating materials and conducting
assemblies where because of suitable
measures and/or means applied, neither a
short circuit nor a short to ground is to be
expected under operating conditions which
are in accordance with those specified for
the intended application.

Note

Version in 6 kV available on request.
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².

Application

Particularly suitable for protection against short circuits in laying and for inherently earth-fault-proof routing in rail vehicles and omnibuses. Also suitable for laying in dry environments.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	Outer Ø approx. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
38501	1 x 1,5	7,0	14,4	62,0	16
38502	1 x 2,5	7,5	24,0	76,0	14
38503	1 x 4	9,0	38,0	95,0	12
38504	1 x 6	9,5	58,0	140,0	10
38505	1 x 10	11,0	96,0	190,0	8
38506	1 x 16	13,0	154,0	270,0	6
38507	1 x 25	15,0	240,0	410,0	4
38508	1 x 35	16,5	336,0	490,0	2
38509	1 x 50	18,0	480,0	650,0	1
38510	1 x 70	20,5	672,0	900,0	2/0
38511	1 x 95	24,0	912,0	1200,0	3/0
38513	1 x 120	26,0	1152,0	1450,0	4/0
38514	1 x 150	28,0	1440,0	1800,0	300 kcmil
38512	1 x 185	31,0	1776,0	2200,0	350 kcmil
38515	1 x 240	34,5	2304,0	2650,0	500 kcmil
38516	1 x 300	38,0	2880,0	3250,0	600 kcmil
