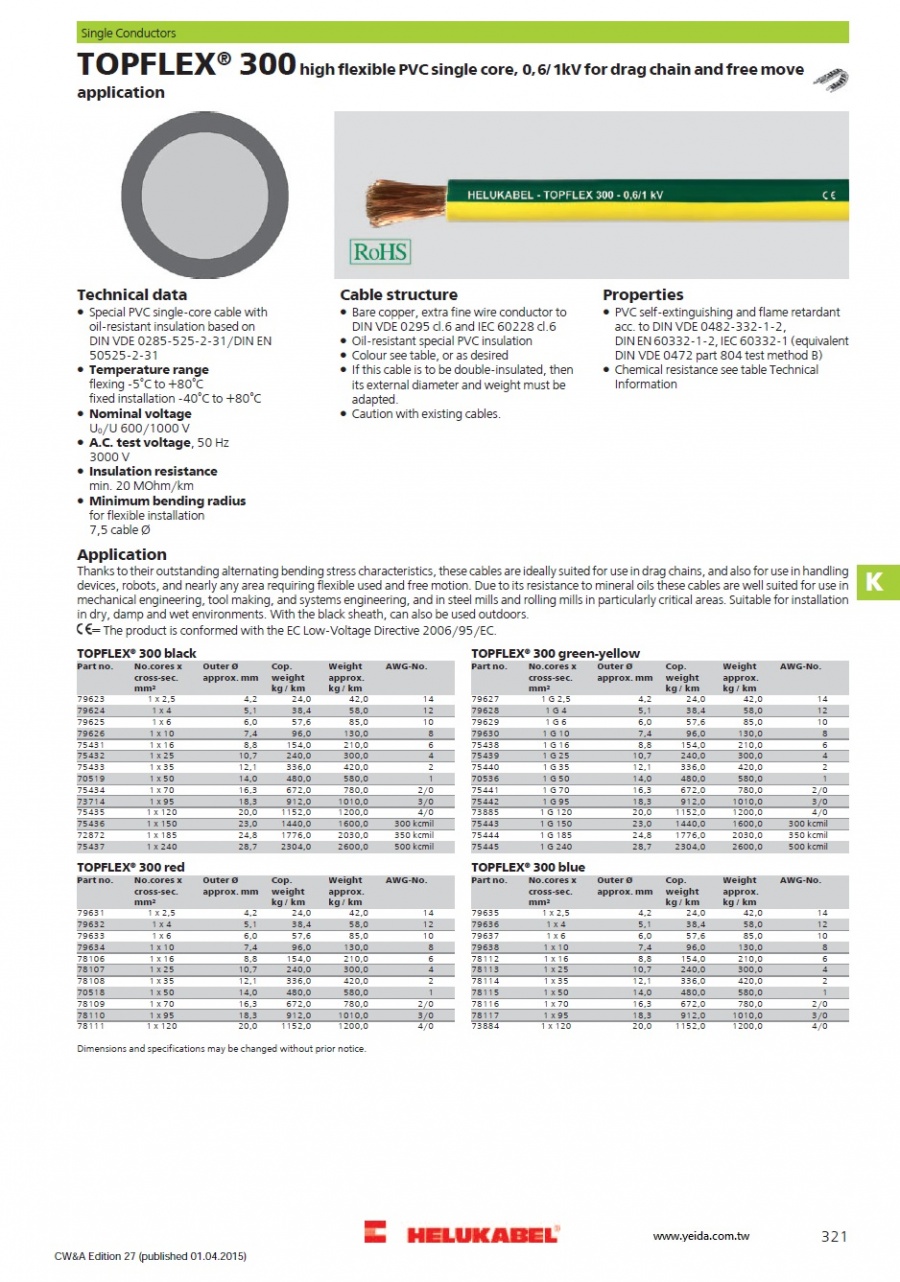

    TOPFLEX® 300 high flexible PVC single core, 0,6/1kV for drag chain and free move application
    看原圖
    30174779




    商品編號: HELUKABEL-TOPFLEX-300

    TOPFLEX® 300 high flexible PVC single core, 0,6/1kV for drag chain and free move application


    TOPFLEX® 300 high flexible PVC single core, 0,6/1kV for drag chain and free move application



    ★★★★商品說明★★★★

    Technical data
    • Special PVC single-core cable with
      oil-resistant insulation based on
      DIN VDE 0285-525-2-31 /
      DIN EN 50525-2-31
    • Temperature range
      flexing -5°C to +80°C
      fixed installation -40°C to +80°C
    • Nominal voltage
      U0/U 600/1000 V
    • A.C. test voltage, 50 Hz
      3000 V
    • Insulation resistance
      min. 20 MOhm/km
    • Minimum bending radius
      for flexible installation
      7,5 cable Ø
    Cable structure
    • Bare copper, extra fine wire conductor to
      DIN VDE 0295 cl.6 and IEC 60228 cl.6
    • Oil-resistant special PVC insulation
    • Colour see table, or as desired
    • If this cable is to be double-insulated, then
      its external diameter and weight must be
      adapted.
    • Caution with existing cables.
    Properties
    • PVC self-extinguishing and flame retardant
      acc. to DIN VDE 0482-332-1-2,
      DIN EN 60332-1-2, IEC 60332-1 (equivalent
      DIN VDE 0472 part 804 test method B)
    • Chemical resistance see table Technical
      Information
    Application

    Thanks to their outstanding alternating bending stress characteristics, these cables are ideally suited for use in drag chains, and also for use in handling devices, robots, and nearly any area requiring flexible used and free motion. Due to its resistance to mineral oils these cables are well suited for use in mechanical engineering, tool making, and systems engineering, and in steel mills and rolling mills in particularly critical areas. Suitable for installation in dry, damp and wet environments. With the black sheath, can also be used outdoors.
    CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

    由於其出色的交變彎曲應力特性,這些電纜都非常適合使用在拖鏈,同時也用於處理設備,機器人,幾乎需要靈活使用和自由運動的任何區域。由於其礦物油阻力,這些電纜都非常適合於機械工程,模具製造和系統工程使用,並在鋼廠和軋製尤為關鍵領域的工廠。適合安裝在乾燥,潮濕,潮濕的環境中。與黑鞘,也可以用於室外。



    ★★★★商品規格描述★★★★

    Part No.





    No.cores x

    cross-sec.

    mm²

    Outer ø

    app. mm

    Cop.

    weight

    kg / km

    Weight

    app.

    kg / km

    AWG-No.

    79635

    1 x 2,5

    4,2

    24,0

    42,0

    14

    79636

    1 x 4

    5,1

    38,4

    58,0

    12

    79637

    1 x 6

    6,0

    57,6

    85,0

    10

    79638

    1 x 10

    7,4

    96,0

    130,0

    8

    78112

    1 x 16

    8,8

    154,0

    210,0

    6

    78113

    1 x 25

    10,7

    240,0

    300,0

    4

    78114

    1 x 35

    12,1

    336,0

    420,0

    2

    78115

    1 x 50

    14,0

    480,0

    580,0

    1

    78116

    1 x 70

    16,3

    672,0

    780,0

    2/0

    78117

    1 x 95

    18,3

    912,0

    1010,0

    3/0

    73884

    1 x 120

    20,0

    1152,0

    1200,0

    4/0



    TOPFLEX® 300 black

    Part no.

    No.cores x
    cross-sec.
    mm²

    Outer Ø

    approx. mm

    Cop.
    weight

    kg / km

    Weight

    approx. kg / km

    AWG-No.

    79623

    1 x 2,5

    4,2

    24,0

    42,0

    14

    79624

    1 x 4

    5,1

    38,4

    58,0

    12

    79625

    1 x 6

    6,0

    57,6

    85,0

    10

    79626

    1 x 10

    7,4

    96,0

    130,0

    8

    75431

    1 x 16

    8,8

    154,0

    210,0

    6

    75432

    1 x 25

    10,7

    240,0

    300,0

    4

    75433

    1 x 35

    12,1

    336,0

    420,0

    2

    70519

    1 x 50

    14,0

    480,0

    580,0

    1

    75434

    1 x 70

    16,3

    672,0

    780,0

    2/0

    73714

    1 x 95

    18,3

    912,0

    1010,0

    3/0

    75435

    1 x 120

    20,0

    1152,0

    1200,0

    4/0

    75436

    1 x 150

    23,0

    1440,0

    1600,0

    300 kcmil

    72872

    1 x 185

    24,8

    1776,0

    2030,0

    350 kcmil

    75437

    1 x 240

    28,7

    2304,0

    2600,0

    500 kcmil



    TOPFLEX® 300 green-yellow

    Part No.

    No.cores x

    cross-sec.

    mm²

    Outer ø

    app. mm

    Cop.

    weight

    kg / km

    Weight

    app.

    kg / km

    AWG-No.

    79627

    1 G 2,5

    4,2

    24,0

    42,0

    14

    79628

    1 G 4

    5,1

    38,4

    58,0

    12

    79629

    1 G 6

    6,0

    57,6

    85,0

    10

    79630

    1 G 10

    7,4

    96,0

    130,0

    8

    75438

    1 G 16

    8,8

    154,0

    210,0

    6

    75439

    1 G 25

    10,7

    240,0

    300,0

    4

    75440

    1 G 35

    12,1

    336,0

    420,0

    2

    70536

    1 G 50

    14,0

    480,0

    580,0

    1

    75441

    1 G 70

    16,3

    672,0

    780,0

    2/0

    75442

    1 G 95

    18,3

    912,0

    1010,0

    3/0

    73885

    1 G 120

    20,0

    1152,0

    1200,0

    4/0

    75443

    1 G 150

    23,0

    1440,0

    1600,0

    300 kcmil

    75444

    1 G 185

    24,8

    1776,0

    2030,0

    350 kcmil

    75445

    1 G 240

    28,7

    2304,0

    2600,0

    500 kcmil
