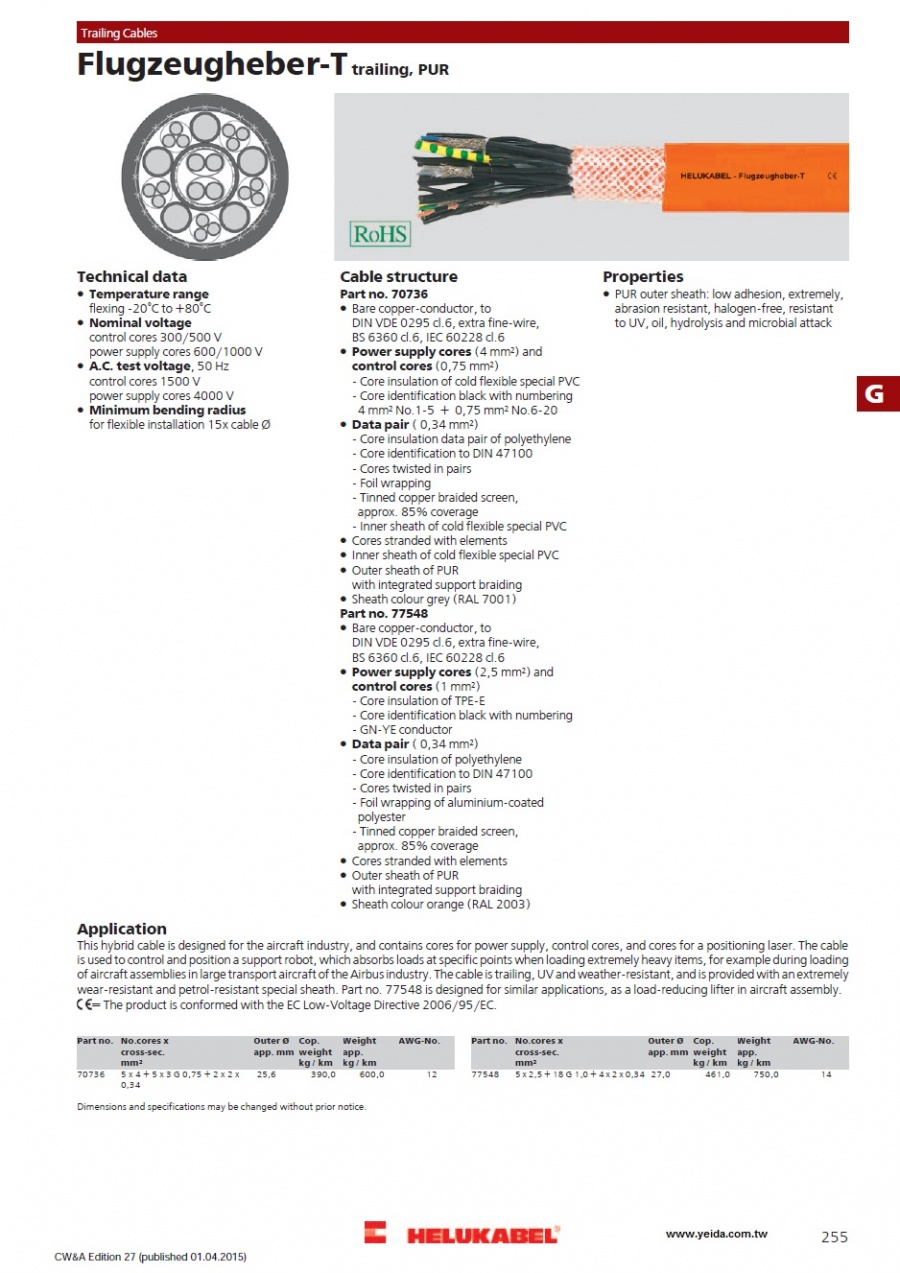

Nominal voltage control cores 300/500 V power supply cores 600/1000 V
A.C. test voltage, 50 Hz control cores 1500 V power supply cores 4000 V
Minimum bending radius for flexible installation 15x cable Ø
Cable structure
Part no. 70736
Bare copper-conductor, to DIN VDE 0295 cl.6, extra fine-wire, BS 6360 cl.6, IEC 60228 cl.6
Power supply cores (4 mm²) and control cores (0,75 mm²) - Core insulation of cold flexible special PVC - Core identification black with numbering 4 mm² No.1-5 + 0,75 mm² No.6-20
Data pair ( 0,34 mm²) - Core insulation data pair of polyethylene - Core identification to DIN 47100 - Cores twisted in pairs - Foil wrapping - Tinned copper braided screen, approx. 85% coverage - Inner sheath of cold flexible special PVC
Cores stranded with elements
Inner sheath of cold flexible special PVC
Outer sheath of PUR with integrated support braiding
Sheath colour grey (RAL 7001)
Part no. 77548
Bare copper-conductor, to DIN VDE 0295 cl.6, extra fine-wire, BS 6360 cl.6, IEC 60228 cl.6
Power supply cores (2,5 mm²) and control cores (1 mm²) - Core insulation of TPE-E - Core identification black with numbering - GN-YE conductor
Data pair ( 0,34 mm²) - Core insulation of polyethylene - Core identification to DIN 47100 - Cores twisted in pairs - Foil wrapping of aluminium-coated polyester - Tinned copper braided screen, approx. 85% coverage
Cores stranded with elements
Outer sheath of PUR with integrated support braiding
Sheath colour orange (RAL 2003)
Properties
PUR outer sheath: low adhesion, extremely, abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
Application
This hybrid cable is designed for the aircraft industry, and contains cores for power supply, control cores, and cores for a positioning laser. The cable is used to control and position a support robot, which absorbs loads at specific points when loading extremely heavy items, for example during loading of aircraft assemblies in large transport aircraft of the Airbus industry. The cable is trailing, UV and weather-resistant, and is provided with an extremely wear-resistant and petrol-resistant special sheath. Part no. 77548 is designed for similar applications, as a load-reducing lifter in aircraft assembly. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
