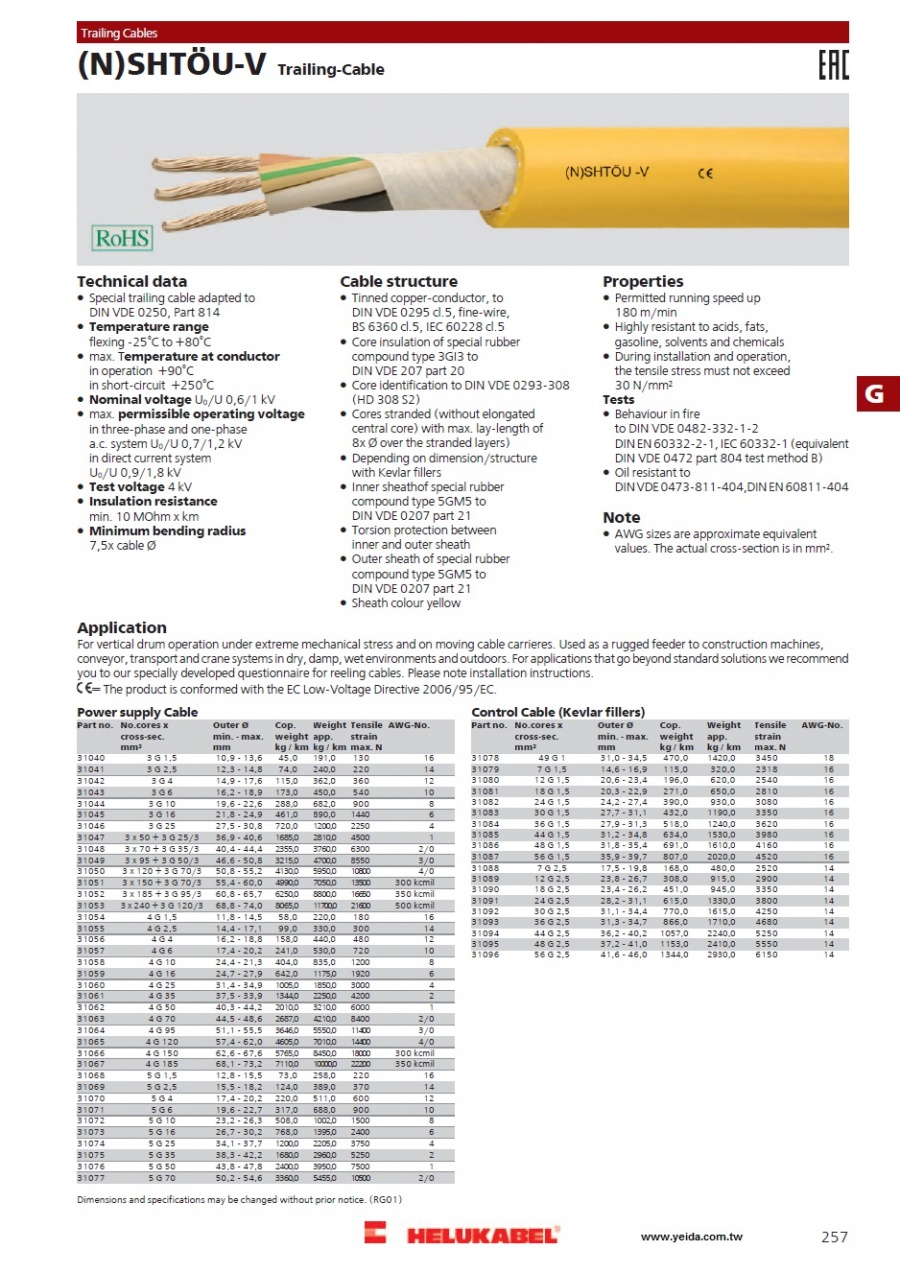

Special trailing cable adapted to DIN VDE 0250, Part 814
Temperature range flexing -25°C to +80°C
max. Temperature at conductor in operation +90°C in short-circuit +250°C
Nominal voltage U0/U 0,6/1 kV
max. permissible operating voltage in three-phase and one-phase a.c. system U0/U 0,7/1,2 kV in direct current system U0/U 0,9/1,8 kV
Test voltage 4 kV
Insulation resistance min. 10 MOhm x km
Minimum bending radius 7,5x cable Ø
Cable structure
Tinned copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation of special rubber compound type 3GI3 to DIN VDE 207 part 20
Core identification to DIN VDE 0293-308 (HD 308 S2)
Cores stranded (without elongated central core) with max. lay-length of 8x Ø over the stranded layers)
Depending on dimension/structure with Kevlar fillers
Inner sheathof special rubber compound type 5GM5 to DIN VDE 0207 part 21
Torsion protection between inner and outer sheath
Outer sheath of special rubber compound type 5GM5 to DIN VDE 0207 part 21
Sheath colour yellow
Properties
Permitted running speed up 180 m/min
Highly resistant to acids, fats, gasoline, solvents and chemicals
During installation and operation, the tensile stress must not exceed 30 N/mm²
Tests
Behaviour in fire to DIN VDE 0482-332-1-2 DIN EN 60332-2-1, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Oil resistant to DIN VDE 0473-811-404,DIN EN 60811-404
Note
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
For vertical drum operation under extreme mechanical stress and on moving cable carrieres. Used as a rugged feeder to construction machines, conveyor, transport and crane systems in dry, damp, wet environments and outdoors. For applications that go beyond standard solutions we recommend you to our specially developed questionnaire for reeling cables. Please note installation instructions. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
