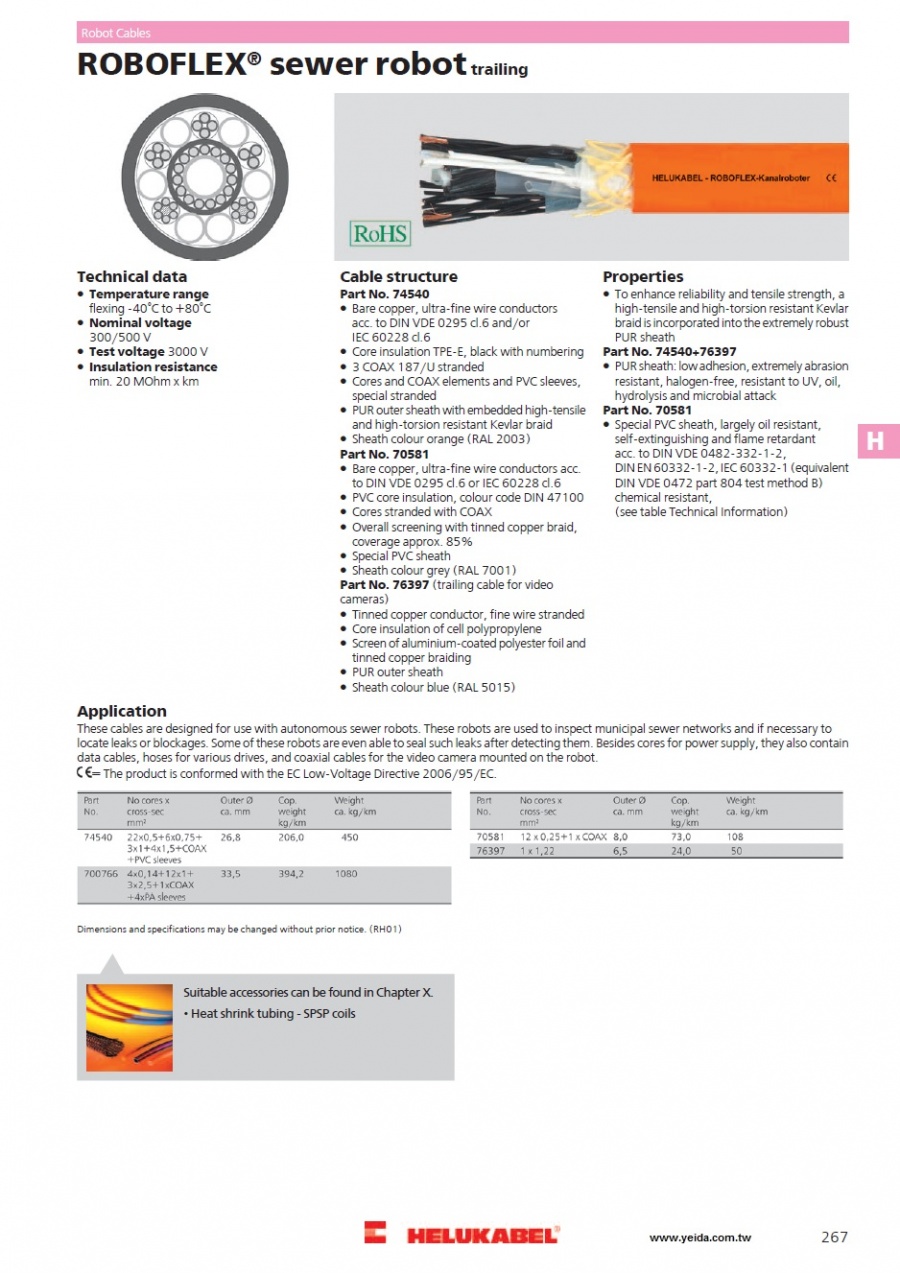

Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl.6 and/or IEC 60228 cl.6
Core insulation TPE-E, black with numbering
3 COAX 187/U stranded
Cores and COAX elements and PVC sleeves, special stranded
PUR outer sheath with embedded high-tensile and high-torsion resistant Kevlar braid
Sheath colour orange (RAL 2003)
Part No. 70581
Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl.6 or IEC 60228 cl.6
PVC core insulation, colour code DIN 47100
Cores stranded with COAX
Overall screening with tinned copper braid, coverage approx. 85%
Special PVC sheath
Sheath colour grey (RAL 7001)
Part No. 76397 (trailing cable for video cameras)
Tinned copper conductor, fine wire stranded
Core insulation of cell polypropylene
Screen of aluminium-coated polyester foil and tinned copper braiding
PUR outer sheath
Sheath colour blue (RAL 5015)
Properties
To enhance reliability and tensile strength, a high-tensile and high-torsion resistant Kevlar braid is incorporated into the extremely robust PUR sheath
Part No. 74540+76397
PUR sheath: low adhesion, extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
Part No. 70581
Special PVC sheath, largely oil resistant, self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) chemical resistant, (see table Technical Information)
Application
These cables are designed for use with autonomous sewer robots. These robots are used to inspect municipal sewer networks and if necessary to locate leaks or blockages. Some of these robots are even able to seal such leaks after detecting them. Besides cores for power supply, they also contain data cables, hoses for various drives, and coaxial cables for the video camera mounted on the robot. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
