Tauchflex-R 750V, blue, submersible-pump cable 藍色，潛水泵浦電纜

30172541

商品編號: HELUKABEL-Tauchflex-R

Tauchflex-R 750V, blue, submersible-pump cable 藍色，潛水泵浦電纜

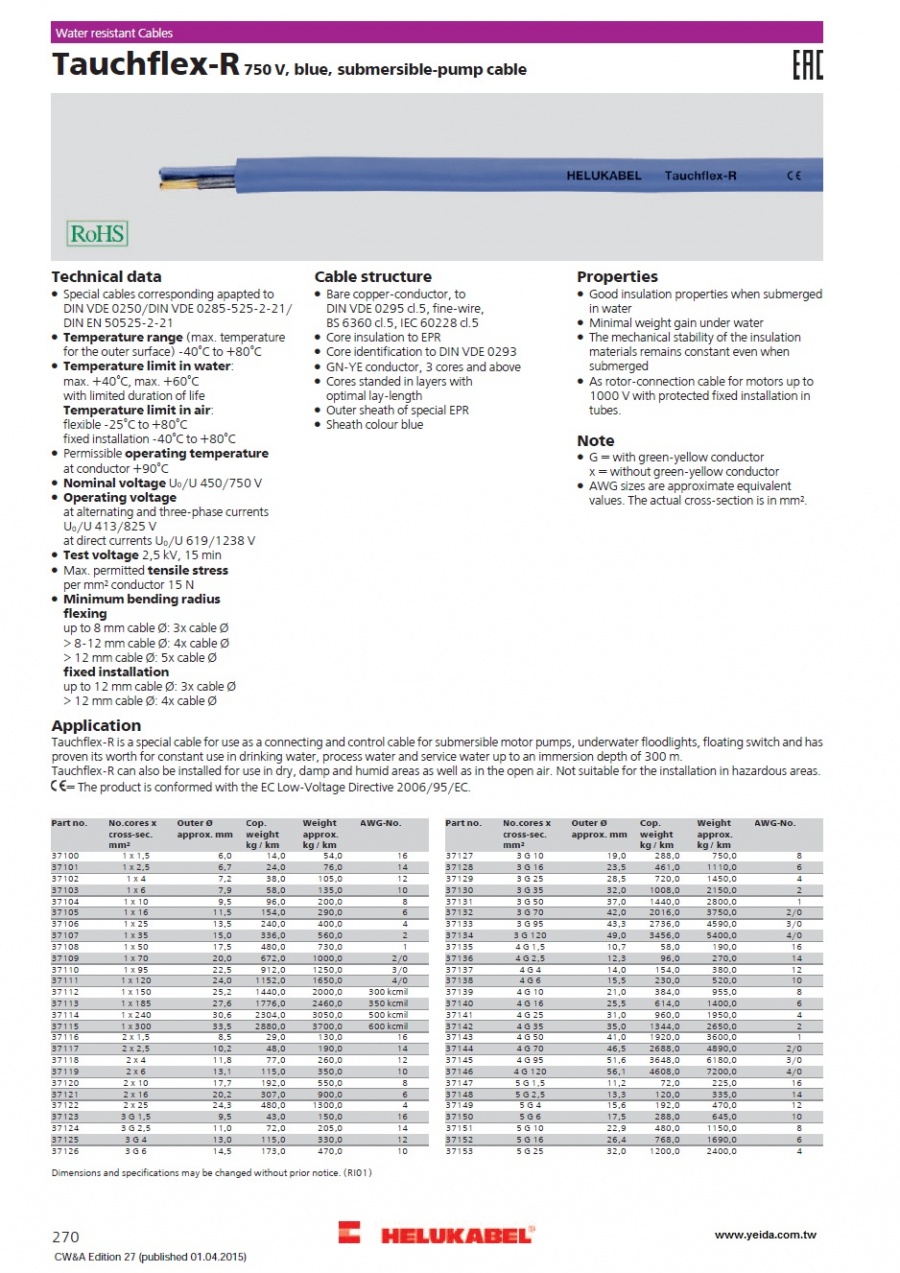

Tauchflex-R 750V, blue, submersible-pump cable

★★★★商品說明★★★★

Technical data

Special cables corresponding apapted to
DIN VDE 0250/DIN VDE 0285-525-2-21/
DIN EN 50525-2-21
Temperature range (max. temperature
for the outer surface) -40°C to +80°C
Temperature limit in water:
max. +40°C, max. +60°C
with limited duration of life
Temperature limit in air:
flexible -25°C to +80°C
fixed installation -40°C to +80°C
Permissible operating temperature
at conductor +90°C
Nominal voltage U₀/U 450/750 V
Operating voltage
at alternating and three-phase currents
U₀/U 413/825 V
at direct currents U₀/U 619/1238 V
Test voltage 2,5 kV, 15 min
Max. permitted tensile stress
per mm² conductor 15 N
Minimum bending radius
flexing
up to 8 mm cable Ø: 3x cable Ø
> 8-12 mm cable Ø: 4x cable Ø
> 12 mm cable Ø: 5x cable Ø
fixed installation
up to 12 mm cable Ø: 3x cable Ø
> 12 mm cable Ø: 4x cable Ø

Cable structure

Bare copper-conductor, to
DIN VDE 0295 cl.5, fine-wire,
BS 6360 cl.5, IEC 60228 cl.5
Core insulation to EPR
Core identification to DIN VDE 0293
GN-YE conductor, 3 cores and above
Cores standed in layers with
optimal lay-length
Outer sheath of special EPR
Sheath colour blue

Properties

Good insulation properties when submerged
in water
Minimal weight gain under water
The mechanical stability of the insulation
materials remains constant even when
submerged
As rotor-connection cable for motors up to
1000 V with protected fixed installation in
tubes.

Note

G = with green-yellow conductor
x = without green-yellow conductor
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².

Application

Tauchflex-R is a special cable for use as a connecting and control cable for submersible motor pumps, underwater floodlights, floating switch and has proven its worth for constant use in drinking water, process water and service water up to an immersion depth of 300 m.
Tauchflex-R can also be installed for use in dry, damp and humid areas as well as in the open air. Not suitable for the installation in hazardous areas.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

Tauchflex-R是用作對潛水泵，水下照明燈，浮動開關的連接和控制電纜特種電纜，並證明了它的價值對經常使用的飲用水，生產用水和生活用水高達300米的浸沒深度。
Tauchflex-R，也可安裝在乾燥，潮濕和濕潤地區使用，以及在露天。不適合安裝在危險區域

★★★★商品規格描述★★★★

Part No.	No.cores x cross-sec. mm²	Outer ø ca. mm	Cop. weight kg / km	Weight ca. kg / km	AWG-No.
37100	1 x 1,5	7,2	14,0	54,0	16
37101	1 x 2,5	8	24,0	76,0	14
37102	1 x 4	9	38,0	105,0	12
37103	1 x 6	11	58,0	135,0	10
37104	1 x 10	12,4	96,0	200,0	8
37105	1 x 16	14,4	154,0	290,0	6
37106	1 x 25	16,5	240,0	400,0	4
37107	1 x 35	18,3	336,0	560,0	2
37108	1 x 50	21,1	480,0	730,0	1
37109	1 x 70	23,5	672,0	1000,0	2/0
37110	1 x 95	25,9	912,0	1250,0	3/0
37111	1 x 120	28,4	1152,0	1650,0	4/0
37112	1 x 150	31,6	1440,0	2000,0	300 kcmil
37113	1 x 185	34,5	1776,0	2460,0	350 kcmil
37114	1 x 240	38	2304,0	3050,0	500 kcmil
37115	1 x 300	41,5	2880,0	3700,0	600 kcmil
37116	2 x 1,5	11,5	29,0	130,0	16
37117	2 x 2,5	13,4	48,0	190,0	14
37118	2 x 4	15	77,0	260,0	12
37119	2 x 6	18,4	115,0	350,0	10
37120	2 x 10	23,9	192,0	550,0	8
37121	2 x 16	27,6	307,0	900,0	6
37122	2 x 25	31,5	480,0	1300,0	4
37123	3 x 1,5	12,5	43,0	150,0	16
37124	3 x 2,5	14,5	72,0	205,0	14
37125	3 x 4	16	115,0	330,0	12
37126	3 x 6	20	173,0	470,0	10
37127	3 x 10	25,5	288,0	750,0	8
37128	3 x 16	29,5	461,0	1110,0	6
37129	3 x 25	34	720,0	1450,0	4
37130	3 x 35	38	1008,0	2150,0	2
37131	3 x 50	44	1440,0	2800,0	1
37132	3 x 70	49,5	2016,0	3750,0	2/0
37133	3 x 95	54	2736,0	4590,0	3/0
37134	3 x 120	59	3456,0	5400,0	4/0
37135	4 G 1,5	13,4	58,0	190,0	16
37136	4 G 2,5	15,4	96,0	270,0	14
37137	4 G 4	17,9	154,0	380,0	12
37138	4 G 6	22	230,0	520,0	10
37139	4 G 10	28	384,0	955,0	8
37140	4 G 16	31,9	614,0	1400,0	6
37141	4 G 25	37,6	960,0	1950,0	4
37142	4 G 35	42,5	1344,0	2650,0	2
37143	4 G 50	48,5	1920,0	3600,0	1
37144	4 G 70	54,4	2688,0	4890,0	2/0
37145	4 G 95	60,4	3648,0	6180,0	3/0
37146	4 G 120	65,4	4608,0	7200,0	4/0
37147	5 G 1,5	15	72,0	225,0	16
37148	5 G 2,5	17,1	120,0	335,0	14
37149	5 G 4	19,4	192,0	470,0	12
37150	5 G 6	24,4	288,0	645,0	10
37151	5 G 10	30,5	480,0	1150,0	8
37152	5 G 16	35,4	768,0	1690,0	6
37153	5 G 25	41,3	1200,0	2400,0	4
