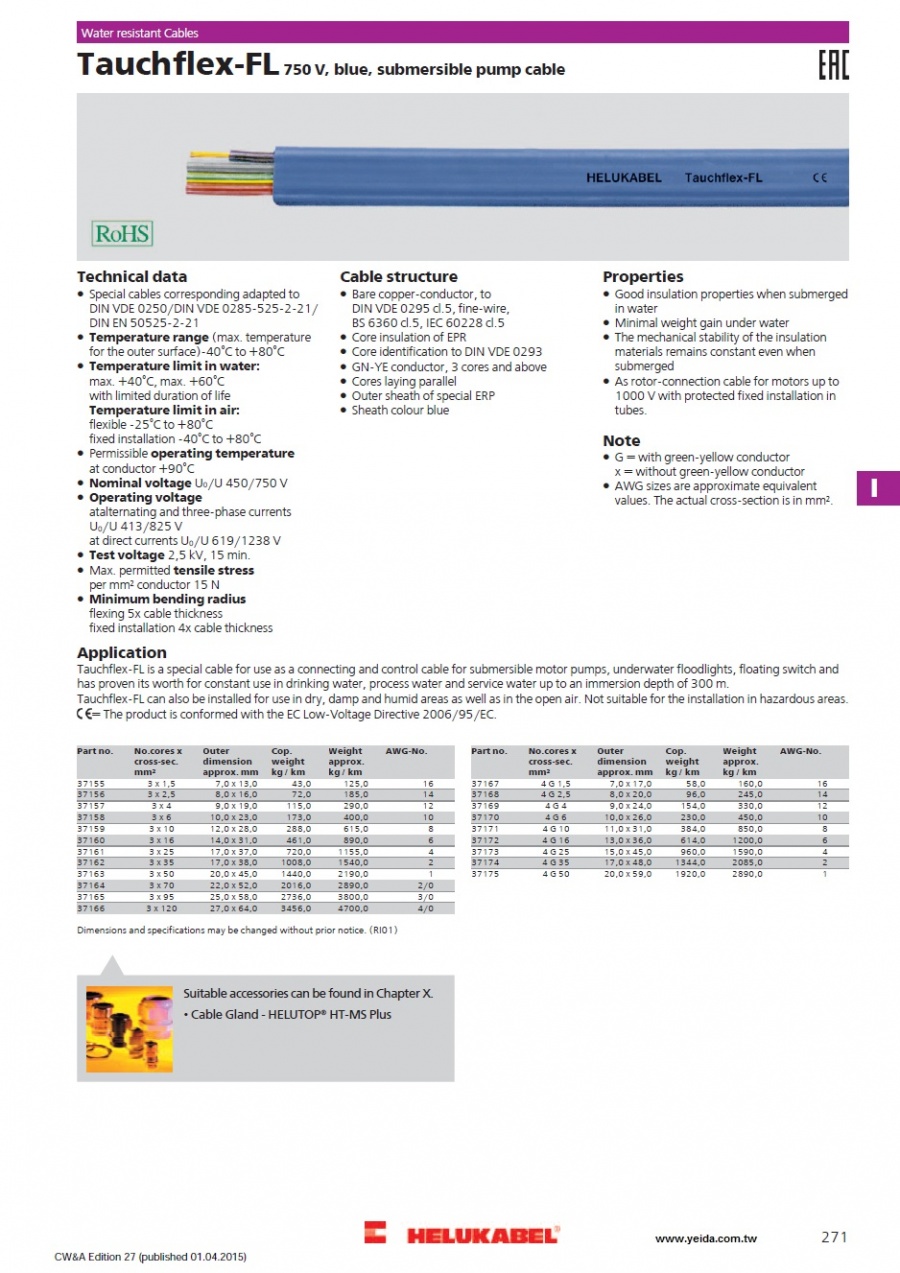

    Tauchflex-FL 750 V, blue, submersible pump cable  潛水泵浦平形排列電纜
    看原圖
    30172543




    商品編號: HELUKABEL-Tauchflex-FL

    Tauchflex-FL 750 V, blue, submersible pump cable 潛水泵浦平形排列電纜


    Tauchflex-FL 750 V, blue, submersible pump cable



    ★★★★商品說明★★★★

    Technical data
    • Special cables corresponding adapted to
      DIN VDE 0250/DIN VDE 0285-525-2-21/
      DIN EN 50525-2-21
    • Temperature range (max. temperature
      for the outer surface)-40°C to +80°C
    • Temperature limit in water:
      max. +40°C, max. +60°C
      with limited duration of life
      Temperature limit in air:
      flexible -25°C to +80°C
      fixed installation -40°C to +80°C
    • Permissible operating temperature
      at conductor +90°C
    • Nominal voltage U0/U 450/750 V
    • Operating voltage
      atalternating and three-phase currents
      U0/U 413/825 V
      at direct currents U0/U 619/1238 V
    • Test voltage 2,5 kV, 15 min.
    • Max. permitted tensile stress
      per mm² conductor 15 N
    • Minimum bending radius
      flexing 5x cable thickness
      fixed installation 4x cable thickness
    Cable structure
    • Bare copper-conductor, to
      DIN VDE 0295 cl.5, fine-wire,
      BS 6360 cl.5, IEC 60228 cl.5
    • Core insulation of EPR
    • Core identification to DIN VDE 0293
    • GN-YE conductor, 3 cores and above
    • Cores laying parallel
    • Outer sheath of special ERP
    • Sheath colour blue
    Properties
    • Good insulation properties when submerged
      in water
    • Minimal weight gain under water
    • The mechanical stability of the insulation
      materials remains constant even when
      submerged
    • As rotor-connection cable for motors up to
      1000 V with protected fixed installation in
      tubes.
    Note
    • G = with green-yellow conductor
      x = without green-yellow conductor
    • AWG sizes are approximate equivalent
      values. The actual cross-section is in mm².
    Application
    Tauchflex-FL is a special cable for use as a connecting and control cable for submersible motor pumps, underwater floodlights, floating switch and has proven its worth for constant use in drinking water, process water and service water up to an immersion depth of 300 m.
    Tauchflex-FL can also be installed for use in dry, damp and humid areas as well as in the open air. Not suitable for the installation in hazardous areas.
    CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

    Tauchflex-FL是用作對潛水泵,水下照明燈,浮動開關的連接和控制電纜特種電纜,並證明了它的價值對經常使用的飲用水,生產用水和生活用水高達300米的浸沒深度。
    Tauchflex-FL,也可安裝在乾燥,潮濕和濕潤地區使用,以及在露天。不適合安裝在危險區域。



    ★★★★商品規格描述★★★★

    Part no.

    No.cores x
    cross-sec.
    mm²

    Outer
    dimension

    approx. mm

    Cop.
    weight

    kg / km

    Weight

    approx. kg / km

    AWG-No.

    37155

    3 x 1,5

    7,0 x 13,0

    43,0

    125,0

    16

    37156

    3 x 2,5

    8,0 x 16,0

    72,0

    185,0

    14

    37157

    3 x 4

    9,0 x 19,0

    115,0

    290,0

    12

    37158

    3 x 6

    10,0 x 23,0

    173,0

    400,0

    10

    37159

    3 x 10

    12,0 x 28,0

    288,0

    615,0

    8

    37160

    3 x 16

    14,0 x 31,0

    461,0

    890,0

    6

    37161

    3 x 25

    17,0 x 37,0

    720,0

    1155,0

    4

    37162

    3 x 35

    17,0 x 38,0

    1008,0

    1540,0

    2

    37163

    3 x 50

    20,0 x 45,0

    1440,0

    2190,0

    1

    37164

    3 x 70

    22,0 x 52,0

    2016,0

    2890,0

    2/0

    37165

    3 x 95

    25,0 x 58,0

    2736,0

    3800,0

    3/0

    37166

    3 x 120

    27,0 x 64,0

    3456,0

    4700,0

    4/0

    37167

    4 G 1,5

    7,0 x 17,0

    58,0

    160,0

    16

    37168

    4 G 2,5

    8,0 x 20,0

    96,0

    245,0

    14

    37169

    4 G 4

    9,0 x 24,0

    154,0

    330,0

    12

    37170

    4 G 6

    10,0 x 26,0

    230,0

    450,0

    10

    37171

    4 G 10

    11,0 x 31,0

    384,0

    850,0

    8

    37172

    4 G 16

    13,0 x 36,0

    614,0

    1200,0

    6

    37173

    4 G 25

    15,0 x 45,0

    960,0

    1590,0

    4

    37174

    4 G 35

    17,0 x 48,0

    1344,0

    2085,0

    2

    37175

    4 G 50

    20,0 x 59,0

    1920,0

    2890,0

    1
