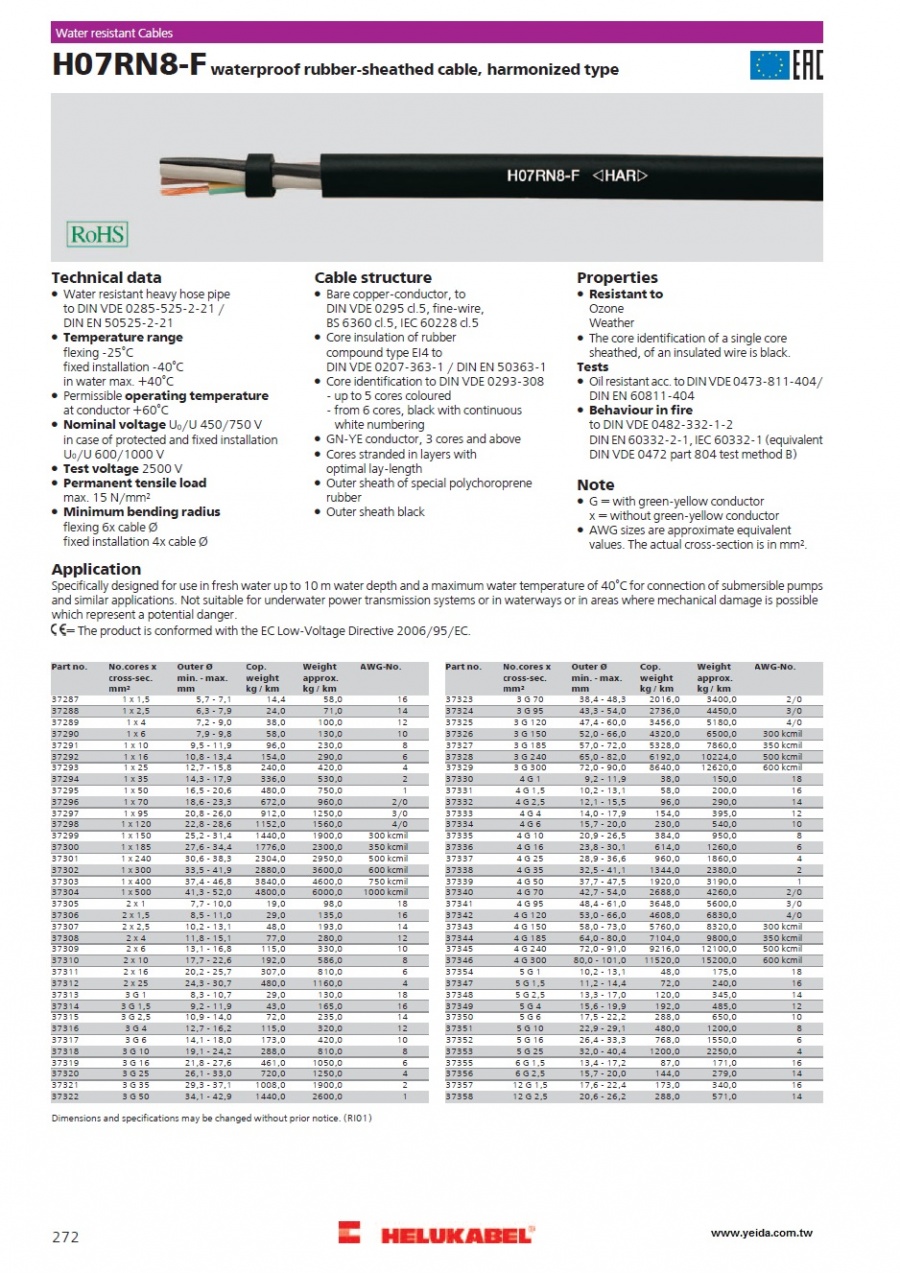

• Water resistant heavy hose pipe
  to DIN VDE 0285-525-2-21 /
  DIN EN 50525-2-21
• Temperature range
  flexing -25°C
  fixed installation -40°C
  in water max. +40°C
• Permissible operating temperature
  at conductor +60°C
• Nominal voltage U₀/U 450/750 V
  in case of protected and fixed installation
  U₀/U 600/1000 V
• Test voltage 2500 V
• Permanent tensile load
  max. 15 N/mm²
• Minimum bending radius
  flexing 6x cable Ø
  fixed installation 4x cable Ø


• Bare copper-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of rubber
  compound type EI4 to
  DIN VDE 0207-363-1 / DIN EN 50363-1
• Core identification to DIN VDE 0293-308
  - up to 5 cores coloured
  - from 6 cores, black with continuous
  white numbering
• GN-YE conductor, 3 cores and above
• Cores stranded in layers with
  optimal lay-length
• Outer sheath of special polychoroprene
  rubber
• Outer sheath black

• Resistant to
  Ozone
  Weather
• The core identification of a single core
  sheathed, of an insulated wire is black.

Tests

• Oil resistant acc. to DIN VDE 0473-811-404/
  DIN EN 60811-404
• Behaviour in fire
  to DIN VDE 0482-332-1-2
  DIN EN 60332-2-1, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

• G = with green-yellow conductor
  x = without green-yellow conductor
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
