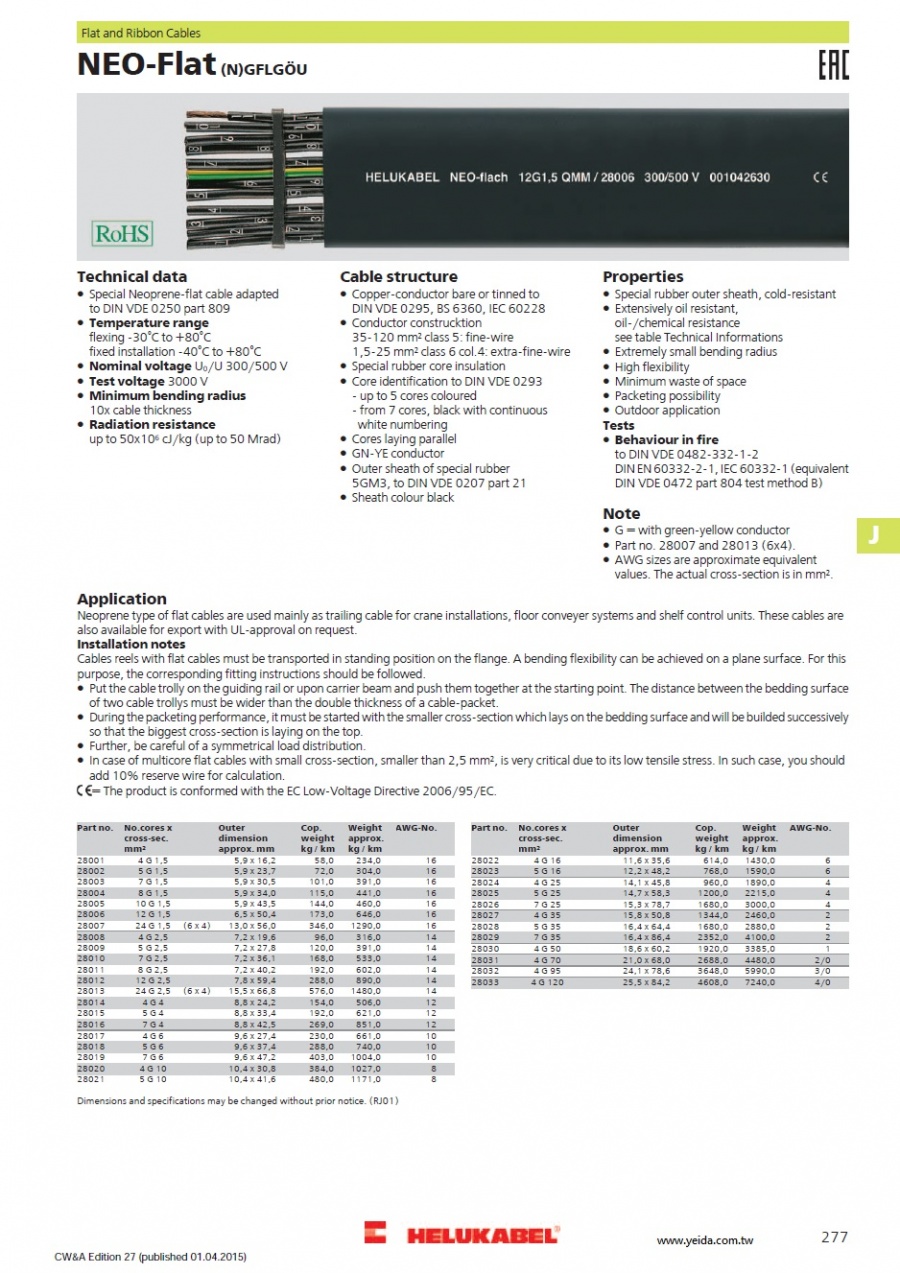

Special Neoprene-flat cable adapted to DIN VDE 0250 part 809
Temperature range flexing -30°C to +80°C fixed installation -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 3000 V
Minimum bending radius 10x cable thickness
Radiation resistance up to 50x106 cJ/kg (up to 50 Mrad)
Cable structure
Copper-conductor bare or tinned to DIN VDE 0295, BS 6360, IEC 60228
Conductor construcktion 35-120 mm² class 5: fine-wire 1,5-25 mm² class 6 col.4: extra-fine-wire
Special rubber core insulation
Core identification to DIN VDE 0293 - up to 5 cores coloured - from 7 cores, black with continuous white numbering
Cores laying parallel
GN-YE conductor
Outer sheath of special rubber 5GM3, to DIN VDE 0207 part 21
Sheath colour black
Properties
Special rubber outer sheath, cold-resistant
Extensively oil resistant, oil-/chemical resistance see table Technical Informations
Extremely small bending radius
High flexibility
Minimum waste of space
Packeting possibility
Outdoor application
Tests
Behaviour in fire to DIN VDE 0482-332-1-2 DIN EN 60332-2-1, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
G = with green-yellow conductor
Part no. 28007 and 28013 (6x4).
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
Neoprene type of flat cables are used mainly as trailing cable for crane installations, floor conveyer systems and shelf control units. These cables are also available for export with UL-approval on request.
主要用作拖纜起重機的安裝,地面傳送系統和貨架控制單元。這些電纜也可以用於出口與要求UL認證。
Installation notes Cables reels with flat cables must be transported in standing position on the flange. A bending flexibility can be achieved on a plane surface. For this purpose, the corresponding fitting instructions should be followed.
Put the cable trolly on the guiding rail or upon carrier beam and push them together at the starting point. The distance between the bedding surface of two cable trollys must be wider than the double thickness of a cable-packet.
During the packeting performance, it must be started with the smaller cross-section which lays on the bedding surface and will be builded successively so that the biggest cross-section is laying on the top.
Further, be careful of a symmetrical load distribution.
In case of multicore flat cables with small cross-section, smaller than 2,5 mm², is very critical due to its low tensile stress. In such case, you should add 10% reserve wire for calculation.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
