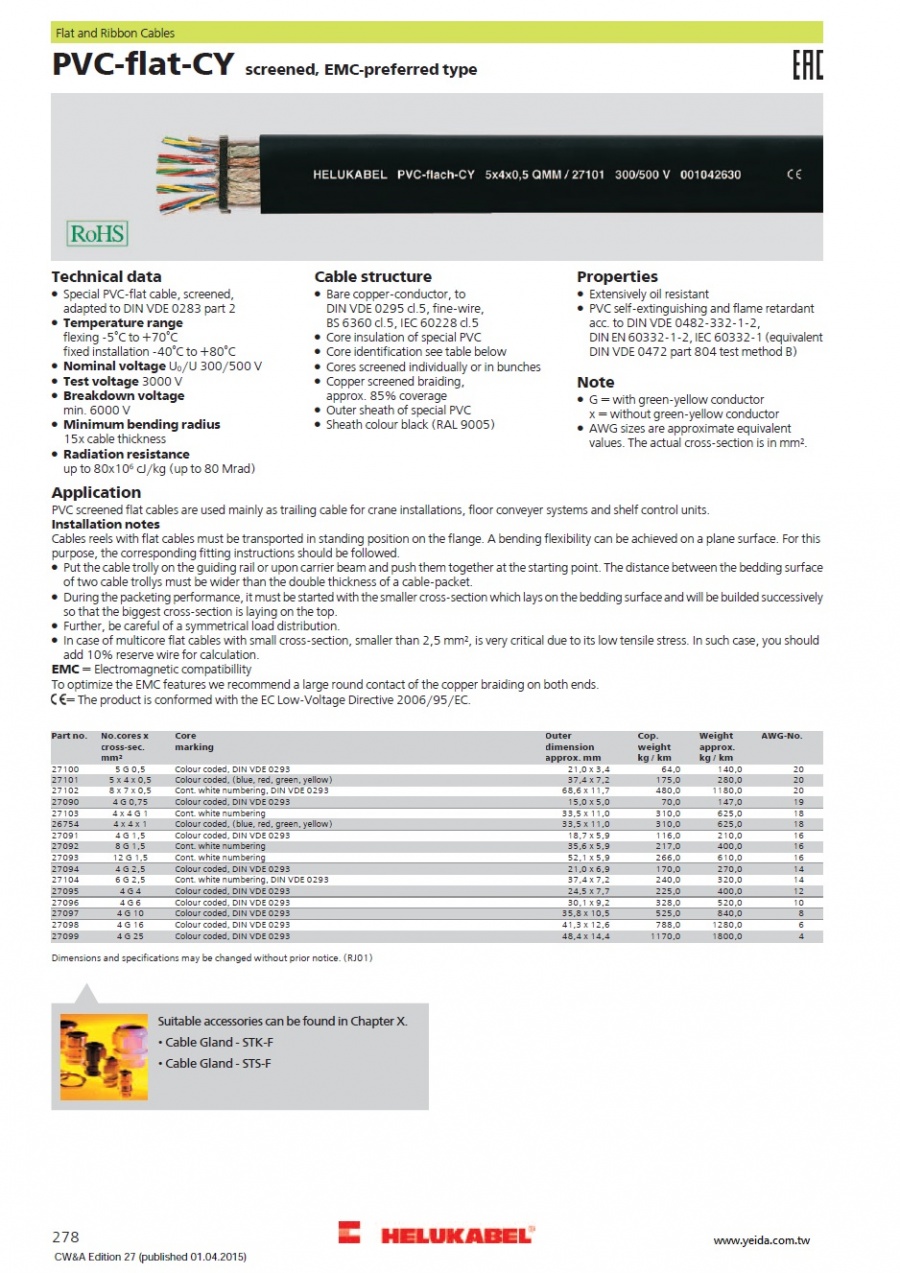

Special PVC-flat cable, screened, adapted to DIN VDE 0283 part 2
Temperature range flexing -5°C to +70°C fixed installation -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Minimum bending radius 15x cable thickness
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Cable structure
Bare copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation of special PVC
Core identification see table below
Cores screened individually or in bunches
Copper screened braiding, approx. 85% coverage
Outer sheath of special PVC
Sheath colour black (RAL 9005)
Properties
Extensively oil resistant
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
G = with green-yellow conductor x = without green-yellow conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
PVC screened flat cables are used mainly as trailing cable for crane installations, floor conveyer systems and shelf control units.
聚氯乙烯篩選扁平電纜主要用作拖纜起重機的安裝,地面傳送系統和貨架控制單元。
Installation notes Cables reels with flat cables must be transported in standing position on the flange. A bending flexibility can be achieved on a plane surface. For this purpose, the corresponding fitting instructions should be followed.
Put the cable trolly on the guiding rail or upon carrier beam and push them together at the starting point. The distance between the bedding surface of two cable trollys must be wider than the double thickness of a cable-packet.
During the packeting performance, it must be started with the smaller cross-section which lays on the bedding surface and will be builded successively so that the biggest cross-section is laying on the top.
Further, be careful of a symmetrical load distribution.
In case of multicore flat cables with small cross-section, smaller than 2,5 mm², is very critical due to its low tensile stress. In such case, you should add 10% reserve wire for calculation.
EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
