Rubber / Neoprene Control Cable Types SJO und SO

30171453

商品編號: HELUKABEL-SJO

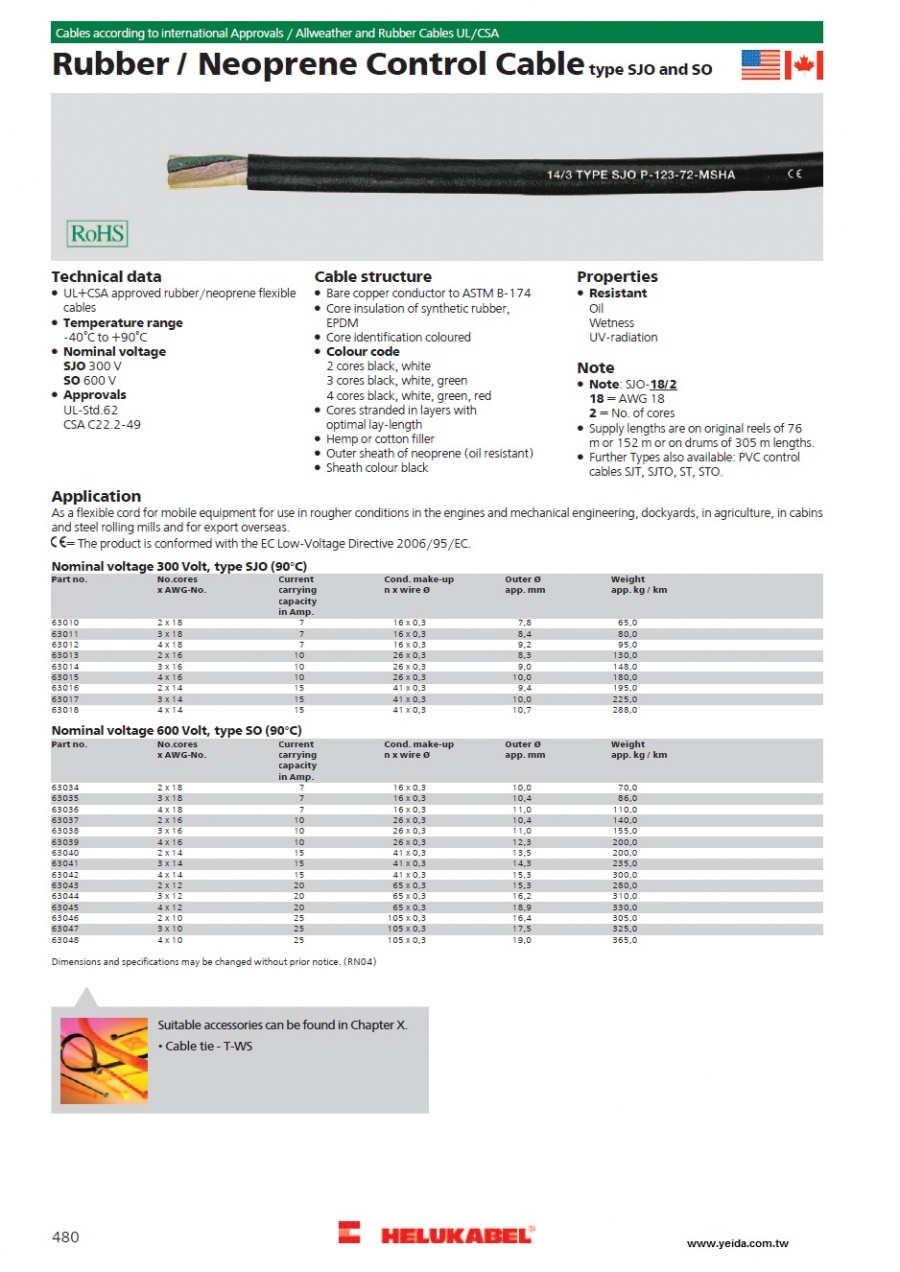

Rubber / Neoprene Control Cable Types SJO und SO

Rubber / Neoprene Control Cable Types SJO und SONominal voltage 600 Volt, type SO (90°C)Nominal voltage 300 Volt, type SJO (90°C)

★★★★商品說明★★★★

Technical data

UL+CSA approved rubber/neoprene flexible
cables
Temperature range
-40°C to +90°C
Nominal voltage
SJO 300 V
SO 600 V
Approvals
UL-Std.62
CSA C22.2-49

Cable structure

Bare copper conductor to ASTM B-174
Core insulation of synthetic rubber,
EPDM
Core identification coloured
Colour code
2 cores black, white
3 cores black, white, green
4 cores black, white, green, red
Cores stranded in layers with
optimal lay-length
Hemp or cotton filler
Outer sheath of neoprene (oil resistant)
Sheath colour black

Properties

Resistant
Oil
Wetness
UV-radiation

Note

Note: SJO-18/2
18 = AWG 18
2 = No. of cores
Supply lengths are on original reels of 76
m or 152 m or on drums of 305 m lengths.
Further Types also available: PVC control
cables SJT, SJTO, ST, STO.

Application

As a flexible cord for mobile equipment for use in rougher conditions in the engines and mechanical engineering, dockyards, in agriculture, in cabins and steel rolling mills and for export overseas.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Nominal voltage 600 Volt, type SO (90°C)

Part no.	No.cores x AWG-No.	Current carrying capacity in Amp.	Cond. make-up n x wire Ø	Outer Ø app. mm	Weight app. kg / km
63034	2 x 18	7	16 x 0,3	10,0	70,0
63035	3 x 18	7	16 x 0,3	10,4	86,0
63036	4 x 18	7	16 x 0,3	11,0	110,0
63037	2 x 16	10	26 x 0,3	10,4	140,0
63038	3 x 16	10	26 x 0,3	11,0	155,0
63039	4 x 16	10	26 x 0,3	12,3	200,0
63040	2 x 14	15	41 x 0,3	13,5	200,0
63041	3 x 14	15	41 x 0,3	14,3	235,0
63042	4 x 14	15	41 x 0,3	15,3	300,0
63043	2 x 12	20	65 x 0,3	15,3	280,0
63044	3 x 12	20	65 x 0,3	16,2	310,0
63045	4 x 12	20	65 x 0,3	18,9	330,0
63046	2 x 10	25	105 x 0,3	16,4	305,0
63047	3 x 10	25	105 x 0,3	17,5	325,0
63048	4 x 10	25	105 x 0,3	19,0	365,0

Nominal voltage 300 Volt, type SJO (90°C)

Part no.	No.cores x AWG-No.	Current carrying capacity in Amp.	Cond. make-up n x wire Ø	Outer Ø app. mm	Weight app. kg / km
63010	2 x 18	7	16 x 0,3	7,8	65,0
63011	3 x 18	7	16 x 0,3	8,4	80,0
63012	4 x 18	7	16 x 0,3	9,2	95,0
63013	2 x 16	10	26 x 0,3	8,3	130,0
63014	3 x 16	10	26 x 0,3	9,0	148,0
63015	4 x 16	10	26 x 0,3	10,0	180,0
63016	2 x 14	15	41 x 0,3	9,4	195,0
63017	3 x 14	15	41 x 0,3	10,0	225,0
63018	4 x 14	15	41 x 0,3	10,7	288,0
