H05 RR-F / H05 RN-F rubber-sheathed cable 超柔軟橡膠電纜

30172119

商品編號: HELUKABEL-H05RR-F

H05 RR-F / H05 RN-F rubber-sheathed cable 超柔軟橡膠電纜

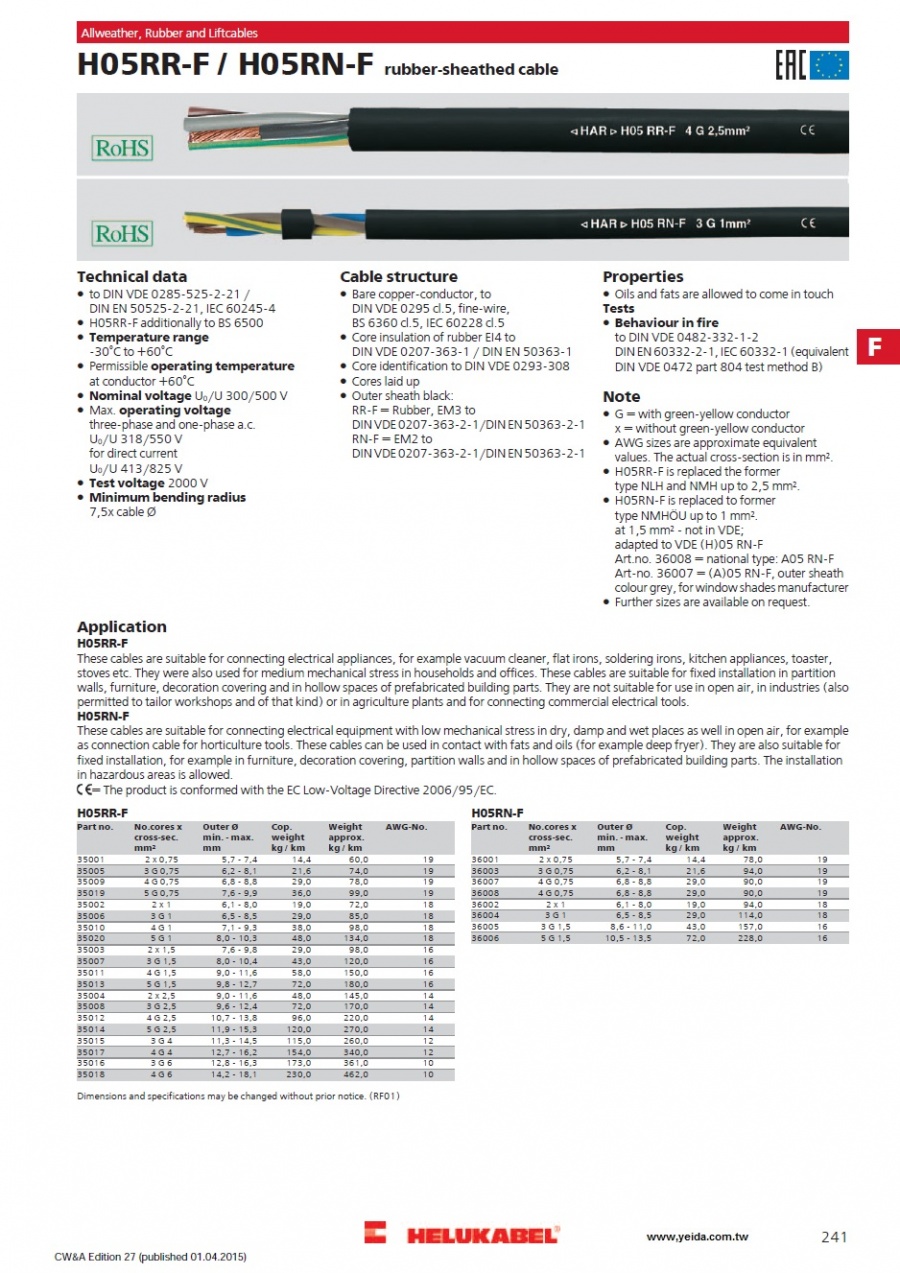

H05 RR-F / H05 RN-F rubber-sheathed cable

★★★★商品說明★★★★

Technical data

to DIN VDE 0285-525-2-21 /
DIN EN 50525-2-21, IEC 60245-4
H05RR-F additionally to BS 6500
Temperature range
-30°C to +60°C
Permissible operating temperature
at conductor +60°C
Nominal voltage U₀/U 300/500 V
Max. operating voltage
three-phase and one-phase a.c.
U₀/U 318/550 V
for direct current
U₀/U 413/825 V
Test voltage 2000 V
Minimum bending radius
7,5x cable Ø

Cable structure

Bare copper-conductor, to
DIN VDE 0295 cl.5, fine-wire,
BS 6360 cl.5, IEC 60228 cl.5
Core insulation of rubber EI4 to
DIN VDE 0207-363-1 / DIN EN 50363-1
Core identification to DIN VDE 0293-308
Cores laid up
Outer sheath black:
RR-F = Rubber, EM3 to
DIN VDE 0207-363-2-1/DIN EN 50363-2-1
RN-F = EM2 to
DIN VDE 0207-363-2-1/DIN EN 50363-2-1

Properties

Oils and fats are allowed to come in touch

Tests

Behaviour in fire
to DIN VDE 0482-332-1-2
DIN EN 60332-2-1, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)

Note

G = with green-yellow conductor
x = without green-yellow conductor
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
H05RR-F is replaced the former
type NLH and NMH up to 2,5 mm².
H05RN-F is replaced to former
type NMHÖU up to 1 mm².
at 1,5 mm² - not in VDE;
adapted to VDE (H)05 RN-F
Art.no. 36008 = national type: A05 RN-F
Art-no. 36007 = (A)05 RN-F, outer sheath
colour grey, for window shades manufacturer
Further sizes are available on request.

Application

H05RR-F
These cables are suitable for connecting electrical appliances, for example vacuum cleaner, flat irons, soldering irons, kitchen appliances, toaster, stoves etc. They were also used for medium mechanical stress in households and offices. These cables are suitable for fixed installation in partition walls, furniture, decoration covering and in hollow spaces of prefabricated building parts. They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) or in agriculture plants and for connecting commercial electrical tools.
H05RN-F
These cables are suitable for connecting electrical equipment with low mechanical stress in dry, damp and wet places as well in open air, for example as connection cable for horticulture tools. These cables can be used in contact with fats and oils (for example deep fryer). They are also suitable for fixed installation, for example in furniture, decoration covering, partition walls and in hollow spaces of prefabricated building parts. The installation in hazardous areas is allowed.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

H05RN-F

Part no.	No.cores x cross-sec. mm²	Outer Ø min. - max. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
36001	2 x 0,75	5,7 - 7,4	14,4	78,0	19
36003	3 G 0,75	6,2 - 8,1	21,6	94,0	19
36007	4 G 0,75	6,8 - 8,8	29,0	90,0	19
36008	4 G 0,75	6,8 - 8,8	29,0	90,0	19
36002	2 x 1	6,1 - 8,0	19,0	94,0	18
36004	3 G 1	6,5 - 8,5	29,0	114,0	18
36005	3 G 1,5	8,6 - 11,0	43,0	157,0	16
36006	5 G 1,5	10,5 - 13,5	72,0	228,0	16

H05RR-F

Part no.	No.cores x cross-sec. mm²	Outer Ø min. - max. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
35001	2 x 0,75	5,7 - 7,4	14,4	60,0	19
35005	3 G 0,75	6,2 - 8,1	21,6	74,0	19
35009	4 G 0,75	6,8 - 8,8	29,0	78,0	19
35019	5 G 0,75	7,6 - 9,9	36,0	99,0	19
35002	2 x 1	6,1 - 8,0	19,0	72,0	18
35006	3 G 1	6,5 - 8,5	29,0	85,0	18
35010	4 G 1	7,1 - 9,3	38,0	98,0	18
35020	5 G 1	8,0 - 10,3	48,0	134,0	18
35003	2 x 1,5	7,6 - 9,8	29,0	98,0	16
35007	3 G 1,5	8,0 - 10,4	43,0	120,0	16
35011	4 G 1,5	9,0 - 11,6	58,0	150,0	16
35013	5 G 1,5	9,8 - 12,7	72,0	180,0	16
35004	2 x 2,5	9,0 - 11,6	48,0	145,0	14
35008	3 G 2,5	9,6 - 12,4	72,0	170,0	14
35012	4 G 2,5	10,7 - 13,8	96,0	220,0	14
35014	5 G 2,5	11,9 - 15,3	120,0	270,0	14
35015	3 G 4	11,3 - 14,5	115,0	260,0	12
35017	4 G 4	12,7 - 16,2	154,0	340,0	12
35016	3 G 6	12,8 - 16,3	173,0	361,0	10
35018	4 G 6	14,2 - 18,1	230,0	462,0	10
