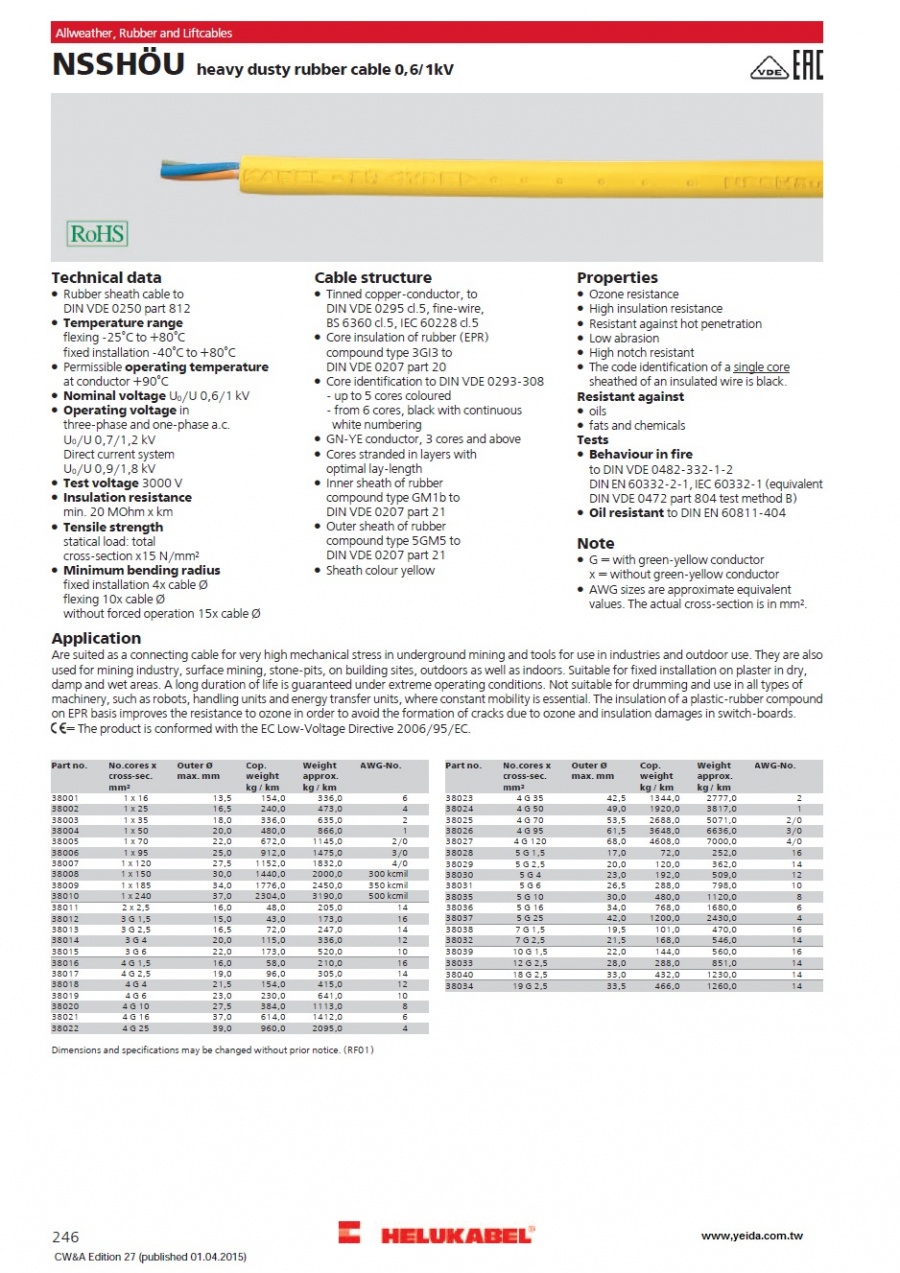

Tinned copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation of rubber (EPR) compound type 3GI3 to DIN VDE 0207 part 20
Core identification to DIN VDE 0293-308 - up to 5 cores coloured - from 6 cores, black with continuous white numbering
GN-YE conductor, 3 cores and above
Cores stranded in layers with optimal lay-length
Inner sheath of rubber compound type GM1b to DIN VDE 0207 part 21
Outer sheath of rubber compound type 5GM5 to DIN VDE 0207 part 21
Sheath colour yellow
Properties
Ozone resistance
High insulation resistance
Resistant against hot penetration
Low abrasion
High notch resistant
The code identification of a single core sheathed of an insulated wire is black.
Resistant against
oils
fats and chemicals
Tests
Behaviour in fire to DIN VDE 0482-332-1-2 DIN EN 60332-2-1, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Oil resistant to DIN EN 60811-404
Note
G = with green-yellow conductor x = without green-yellow conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
Are suited as a connecting cable for very high mechanical stress in underground mining and tools for use in industries and outdoor use. They are also used for mining industry, surface mining, stone-pits, on building sites, outdoors as well as indoors. Suitable for fixed installation on plaster in dry, damp and wet areas. A long duration of life is guaranteed under extreme operating conditions. Not suitable for drumming and use in all types of machinery, such as robots, handling units and energy transfer units, where constant mobility is essential. The insulation of a plastic-rubber compound on EPR basis improves the resistance to ozone in order to avoid the formation of cracks due to ozone and insulation damages in switch-boards. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
