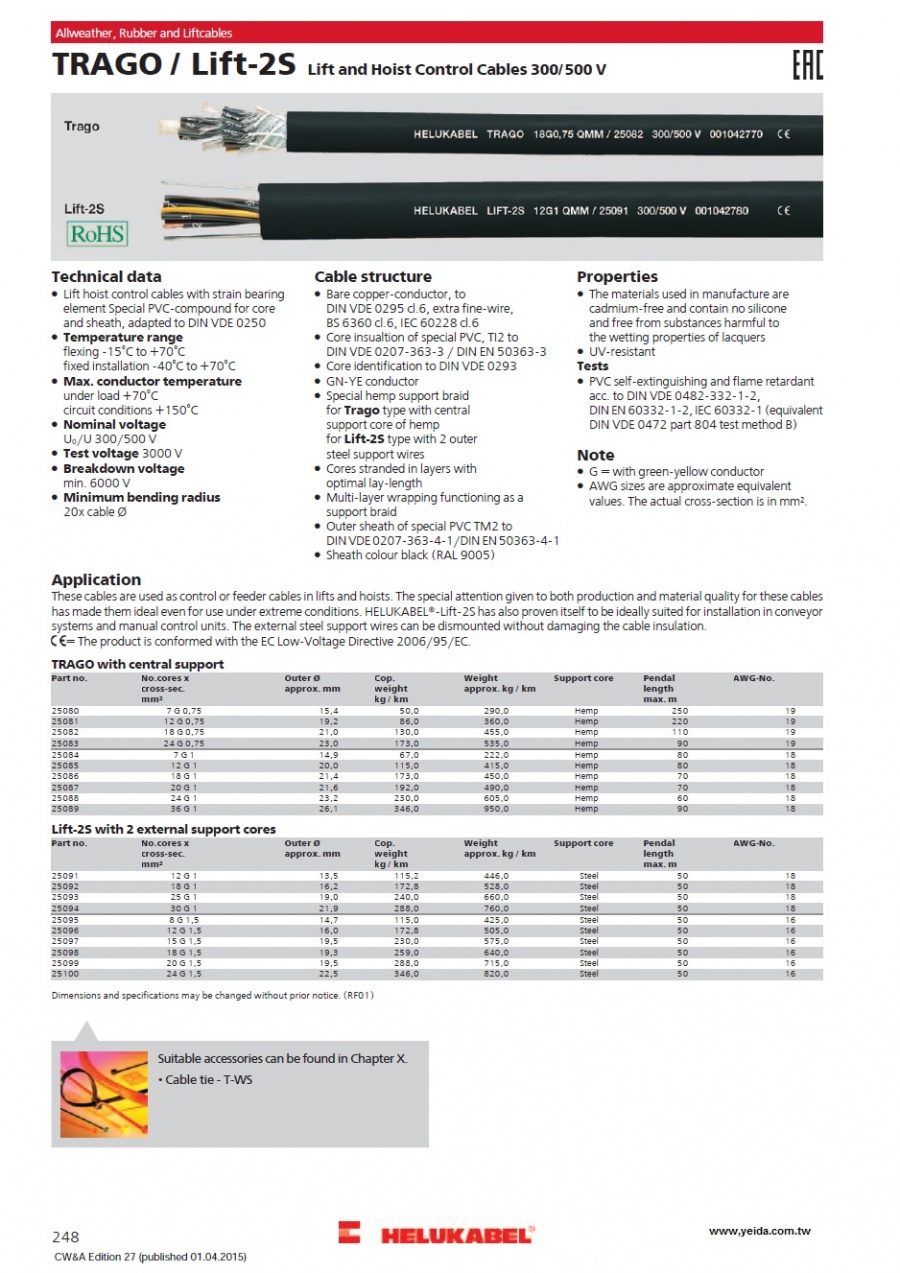

Lift hoist control cables with strain bearing element Special PVC-compound for core and sheath, adapted to DIN VDE 0250
Temperature range flexing -15°C to +70°C fixed installation -40°C to +70°C
Max. conductor temperature under load +70°C circuit conditions +150°C
Nominal voltage U0/U 300/500 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Minimum bending radius 20x cable Ø
Cable structure
Bare copper-conductor, to DIN VDE 0295 cl.6, extra fine-wire, BS 6360 cl.6, IEC 60228 cl.6
Core insualtion of special PVC, TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3
Core identification to DIN VDE 0293
GN-YE conductor
Special hemp support braid for Trago type with central support core of hemp for Lift-2S type with 2 outer steel support wires
Cores stranded in layers with optimal lay-length
Multi-layer wrapping functioning as a support braid
Outer sheath of special PVC TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1
Sheath colour black (RAL 9005)
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
UV-resistant
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
G = with green-yellow conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
These cables are used as control or feeder cables in lifts and hoists. The special attention given to both production and material quality for these cables has made them ideal even for use under extreme conditions. HELUKABEL®-Lift-2S has also proven itself to be ideally suited for installation in conveyor systems and manual control units. The external steel support wires can be dismounted without damaging the cable insulation. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
