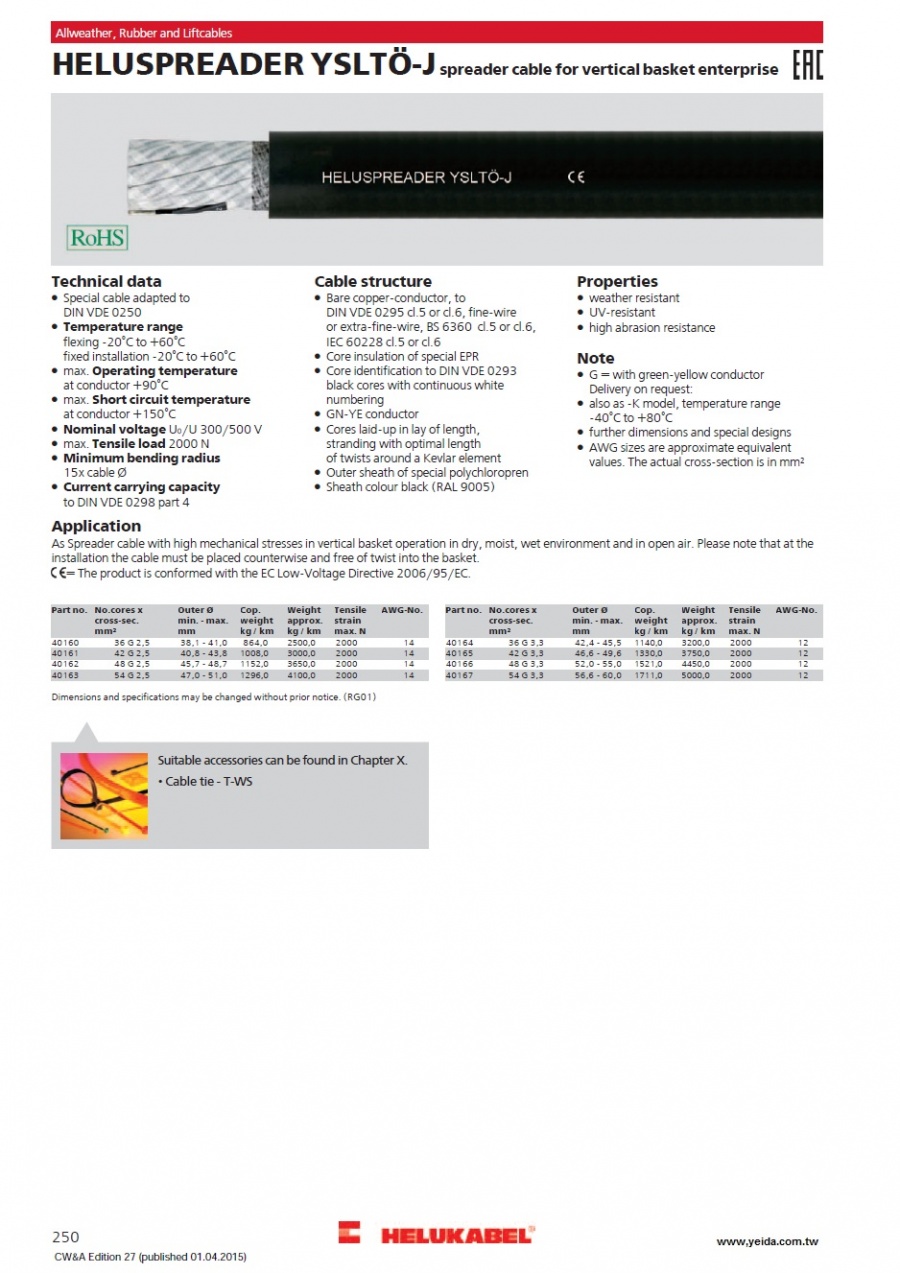

HELUSPREADER YSLTÖ-J Spreader cable for vertical basket垂直籃筐吊具電纜

30172156

商品編號: HELUKABEL-HELUSPREADER

HELUSPREADER YSLTÖ-J Spreader cable for vertical basket垂直籃筐吊具電纜

HELUSPREADER YSLTÖ-J Spreader cable for vertical basket enterprise

★★★★商品說明★★★★

Technical data

Special cable adapted to
DIN VDE 0250
Temperature range
flexing -20°C to +60°C
fixed installation -20°C to +60°C
max. Operating temperature
at conductor +90°C
max. Short circuit temperature
at conductor +150°C
Nominal voltage U₀/U 300/500 V
max. Tensile load 2000 N
Minimum bending radius
15x cable Ø
Current carrying capacity
to DIN VDE 0298 part 4

Cable structure

Bare copper-conductor, to
DIN VDE 0295 cl.5 or cl.6, fine-wire
or extra-fine-wire, BS 6360 cl.5 or cl.6,
IEC 60228 cl.5 or cl.6
Core insulation of special EPR
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor
Cores laid-up in lay of length,
stranding with optimal length
of twists around a Kevlar element
Outer sheath of special polychloropren
Sheath colour black (RAL 9005)

Properties

weather resistant
UV-resistant
high abrasion resistance

Note

G = with green-yellow conductor
Delivery on request:
also as -K model, temperature range
-40°C to +80°C
further dimensions and special designs
AWG sizes are approximate equivalent
values. The actual cross-section is in mm²

Application

As Spreader cable with high mechanical stresses in vertical basket operation in dry, moist, wet environment and in open air. Please note that at the installation the cable must be placed counterwise and free of twist into the basket.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	Outer Ø min. - max. mm	Cop. weight kg / km	Weight approx. kg / km	Tensile strain max. N	AWG-No.
40160	36 G 2,5	38,1 - 41,0	864,0	2500,0	2000	14
40161	42 G 2,5	40,8 - 43,8	1008,0	3000,0	2000	14
40162	48 G 2,5	45,7 - 48,7	1152,0	3650,0	2000	14
40163	54 G 2,5	47,0 - 51,0	1296,0	4100,0	2000	14
40164	36 G 3,3	42,4 - 45,5	1140,0	3200,0	2000	12
40165	42 G 3,3	46,6 - 49,6	1330,0	3750,0	2000	12
40166	48 G 3,3	52,0 - 55,0	1521,0	4450,0	2000	12
40167	54 G 3,3	56,6 - 60,0	1711,0	5000,0	2000	12
