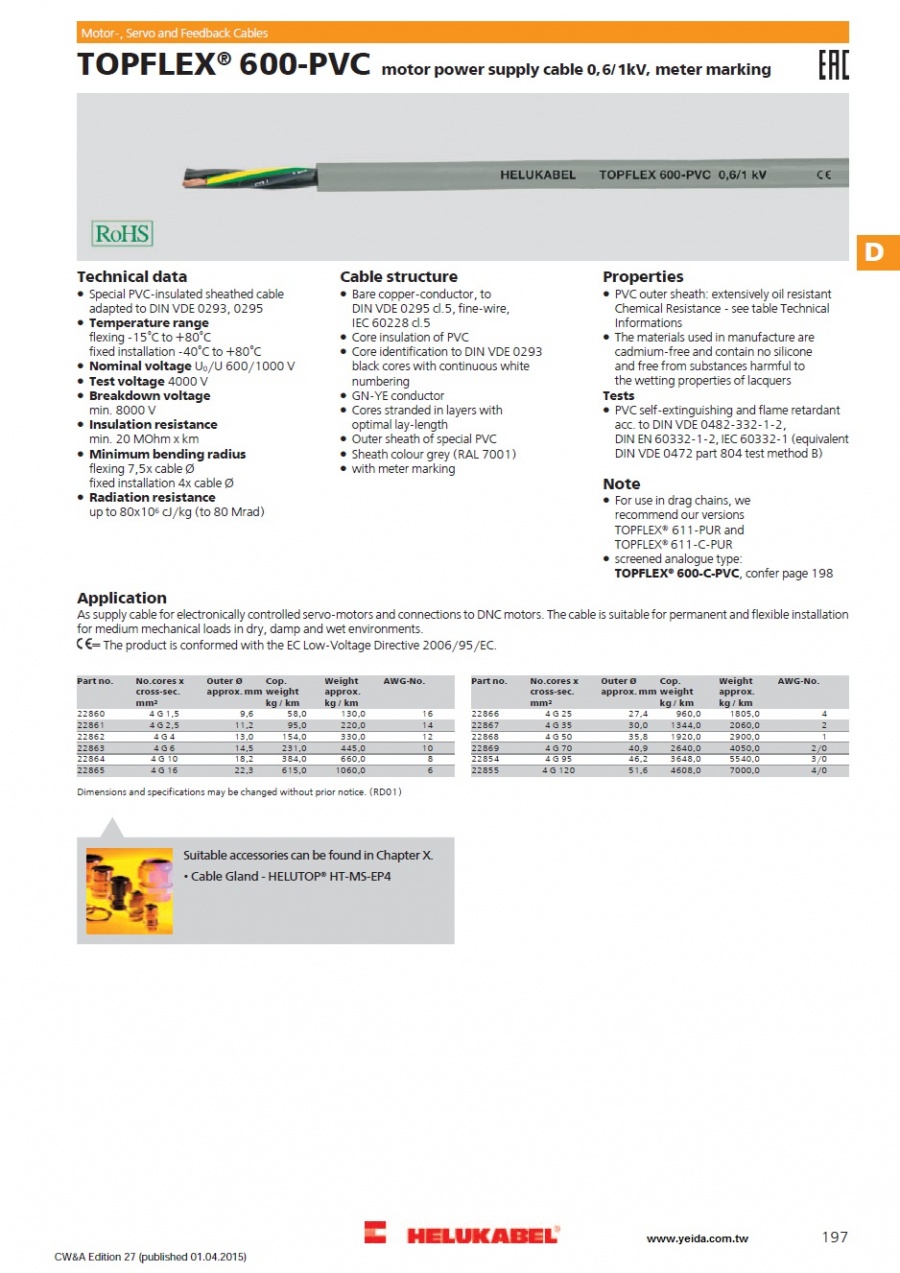

• Special PVC-insulated sheathed cable
  adapted to DIN VDE 0293, 0295
• Temperature range
  flexing -15°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage U₀/U 600/1000 V
• Test voltage 4000 V
• Breakdown voltage
  min. 8000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (to 80 Mrad)

• Bare copper-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  IEC 60228 cl.5
• Core insulation of PVC
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor
• Cores stranded in layers with
  optimal lay-length
• Outer sheath of special PVC
• Sheath colour grey (RAL 7001)
• with meter marking

• PVC outer sheath: extensively oil resistant
  Chemical Resistance - see table Technical
  Informations
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

• For use in drag chains, we
  recommend our versions
  TOPFLEX^® 611-PUR and
  TOPFLEX^® 611-C-PUR
• screened analogue type:
  TOPFLEX^® 600-C-PVC
