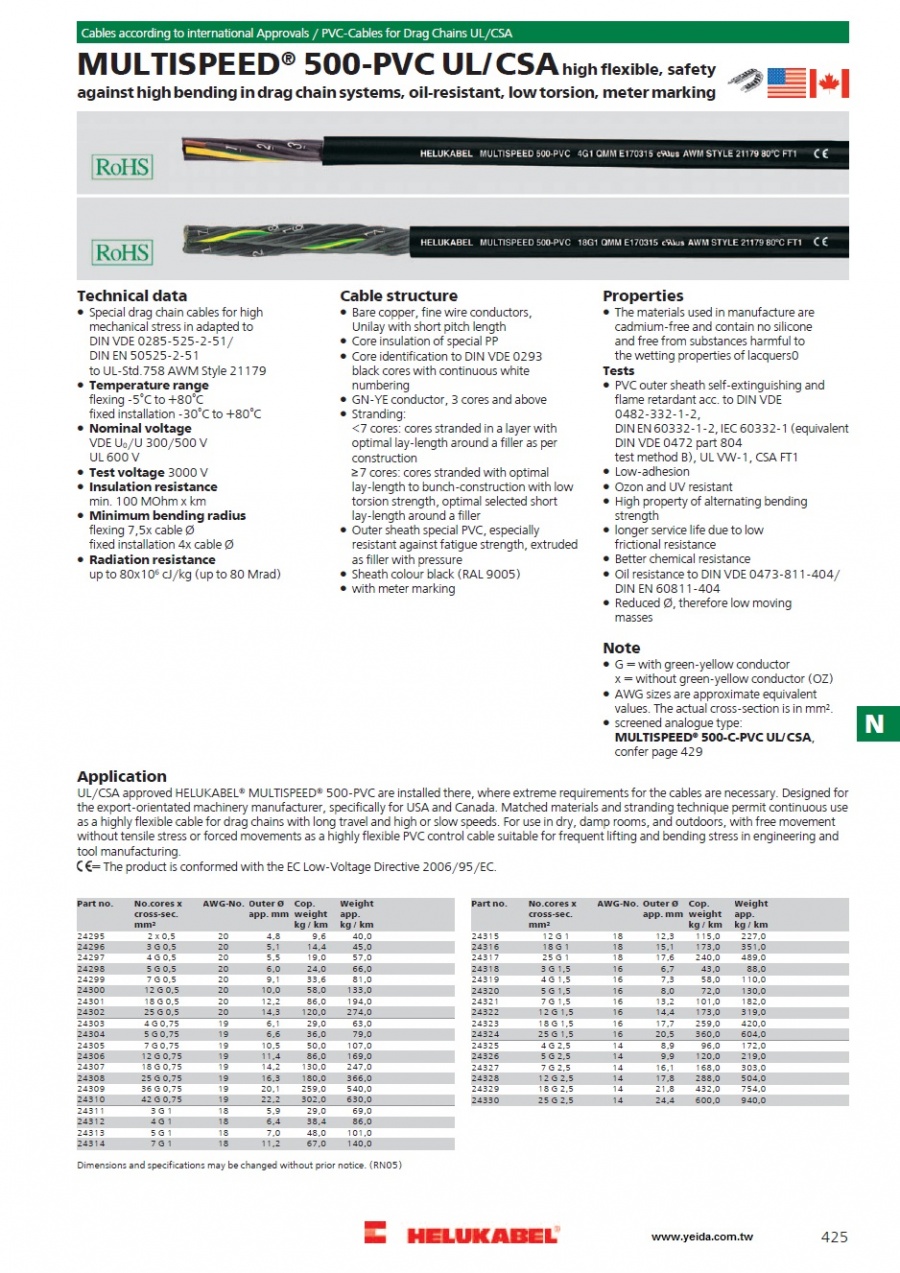

Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Cable structure
Bare copper, fine wire conductors, Unilay with short pitch length
Core insulation of special PP
Core identification to DIN VDE 0293 black cores with continuous white numbering
GN-YE conductor, 3 cores and above
Stranding: <7 cores: cores stranded in a layer with optimal lay-length around a filler as per construction ≥7 cores: cores stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
Outer sheath special PVC, especially resistant against fatigue strength, extruded as filler with pressure
Sheath colour black (RAL 9005)
with meter marking
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers0
Tests
PVC outer sheath self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL VW-1, CSA FT1
Low-adhesion
Ozon and UV resistant
High property of alternating bending strength
longer service life due to low frictional resistance
Better chemical resistance
Oil resistance to DIN VDE 0473-811-404/ DIN EN 60811-404
Reduced Ø, therefore low moving masses
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
UL/CSA approved HELUKABEL® MULTISPEED® 500-PVC are installed there, where extreme requirements for the cables are necessary. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. Matched materials and stranding technique permit continuous use as a highly flexible cable for drag chains with long travel and high or slow speeds. For use in dry, damp rooms, and outdoors, with free movement without tensile stress or forced movements as a highly flexible PVC control cable suitable for frequent lifting and bending stress in engineering and tool manufacturing. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
