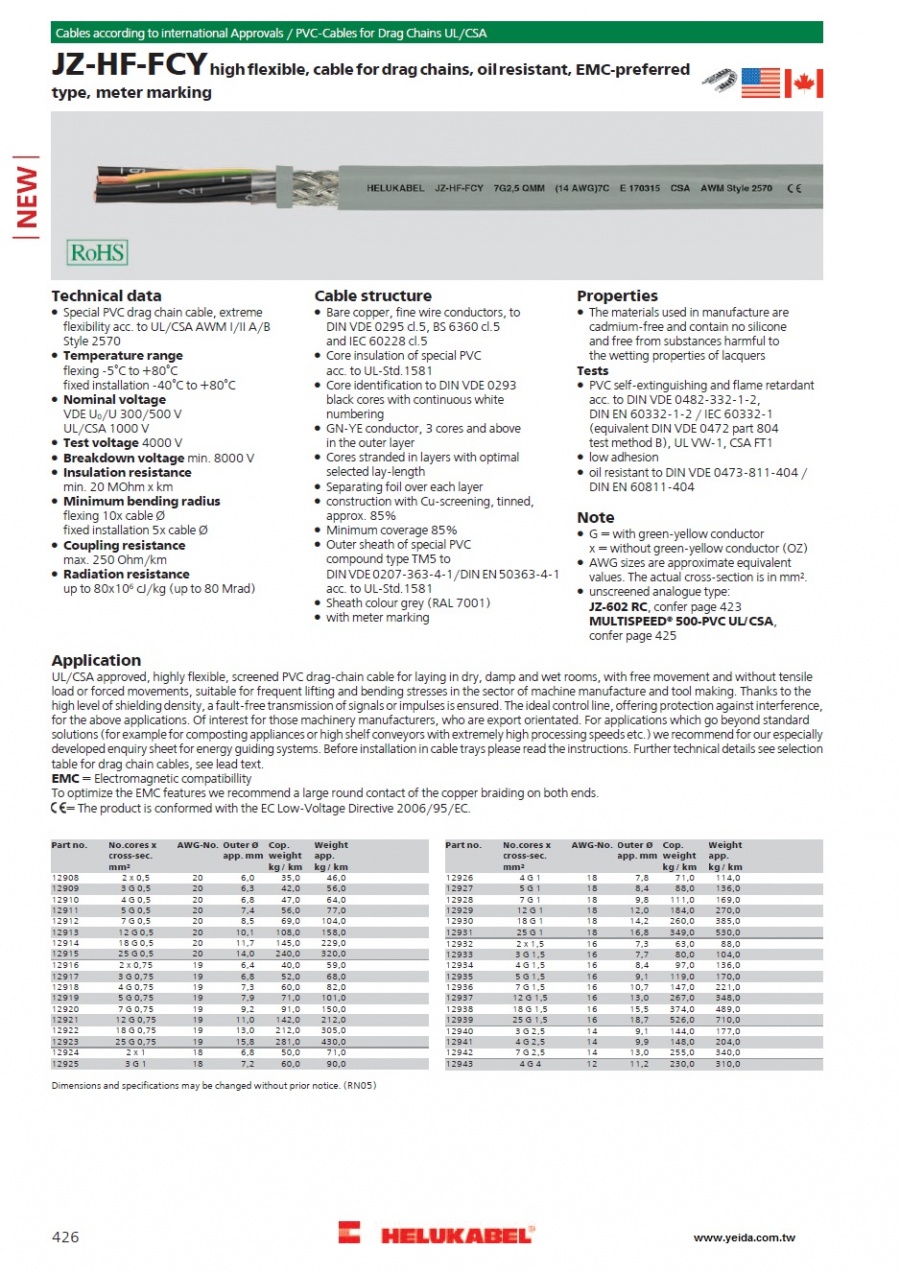

• Special PVC drag chain cable, extreme
  flexibility acc. to UL/CSA AWM I/II A/B
  Style 2570
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  VDE U₀/U 300/500 V
  UL/CSA 1000 V

• Test voltage 4000 V
• Breakdown voltage min. 8000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)

• Bare copper, fine wire conductors, to
  DIN VDE 0295 cl.5, BS 6360 cl.5
  and IEC 60228 cl.5
• Core insulation of special PVC
  acc. to UL-Std.1581
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with optimal
  selected lay-length
• Separating foil over each layer
• construction with Cu-screening, tinned,
  approx. 85%
• Minimum coverage 85%
• Outer sheath of special PVC
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  acc. to UL-Std.1581
• Sheath colour grey (RAL 7001)
• with meter marking

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2 / IEC 60332-1
  (equivalent DIN VDE 0472 part 804
  test method B), UL VW-1, CSA FT1
• low adhesion

• oil resistant to DIN VDE 0473-811-404 /
  DIN EN 60811-404

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• unscreened analouge type:
  JZ-602 RC
  MULTISPEED^® 500-PVC UL/CSA
